14.5kgs HS721 Manual High Pressure Pneumatic Pressure Calibration Pump Performance
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | sion-instrument |
| Model Number: | HS721 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1,000.00 - $2,000.00/sets |
| Packaging Details: | standard package |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Customized Support: | OEM | Power: | Manual, Air |
|---|---|---|---|
| Range: | (-0.95-140)bar | Pressure: | High Pressure |
| Weight: | 14.5kgs | Warranty: | 12 Months |
| Port: | Beijing,Tianjin,Ningbo,etc | ||
Product Description

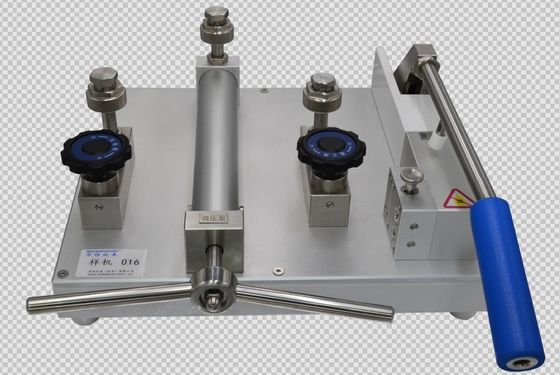

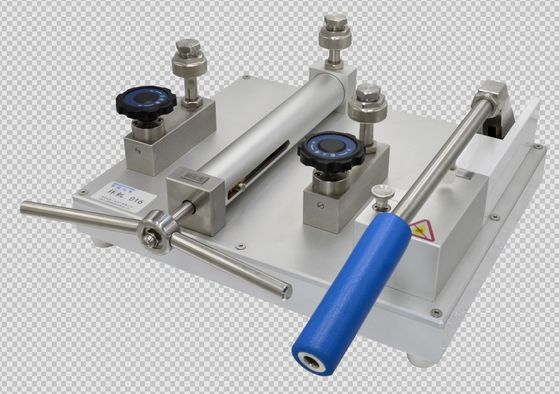

HS721 High Pressure Calibration Pump

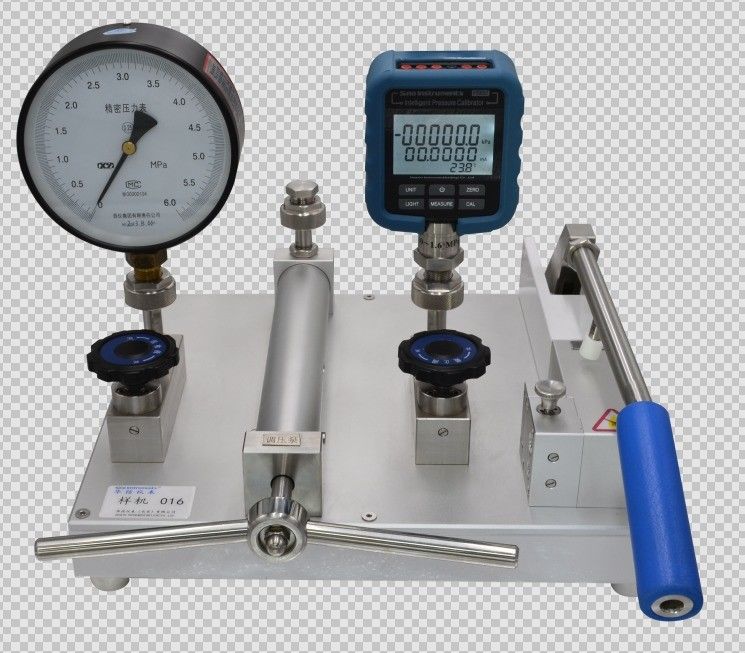

HS721 is designed with a reverse valve, generated pressure from vacuum to 100bar.The F-adjust valve could accomplish 0.1mbar pressure resolution. The design of reverse valve makes the switch of vacuum and positive pressure more smooth. The shut-off valve can stabilize the value when calibrating.Two standard pressure outputs are easy to connect gauges under test without using the wrenches. It widely calibrates pressure instruments in the laboratory
Technical Specification
Generated pressure range: (-0.95-140)bar
Working media: air
Adjust resolution: 0.1mbar
Material: Body: Stainless steel /Aluminium
Seals:Buna-N

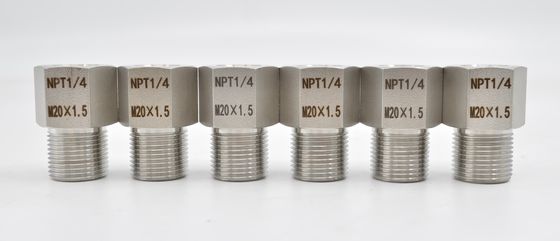

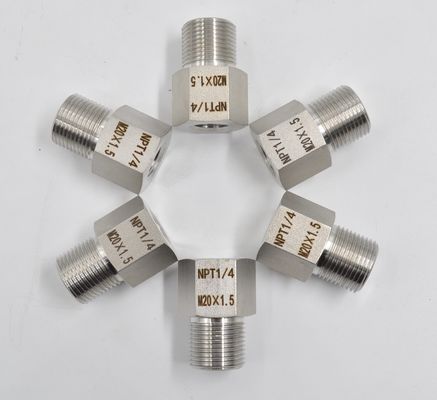

Output interface connection: M20×1.5Female*3pcs
Weight:14.5kg
Characteristics
Easy operation, saving labor.
Fast connection, quick pressurizing
Increasing pressure easily, convenient maintenance.
The appearance is simple & beautiful.
Huaxin instrument (Beijing) Co.,Ltd
Add: Yilan Building , Chuangxin Road, Changping District, Beijing , China . 102200
Tel: 86-10-62392087 Fax: 86-10-62345183
Web: www.sino-instruments.com
HUAXIN INSTRUMENT (BEIJING) CO., LTD. is a highly reputed organization dedicated to manufacturing high-quality pressure and temperature calibrator products. During considerable development, our products have already been widely used in the industries of power, chemical, petrol, metallurgy, metering, etc. With the tenet of "Quality is Priority and The Customer is King", HUAXIN employs experienced technicians and professional sales engineers in calibration and metering fild. Based on our excellent performance, we have joined in setting industry standard for product safety, operability, durability and reliability in China. Besides, our company has been accredited to ISO9001:2008 international quality management system certification since its standardized operation. Furthermore, CE approval is also smoothly passed. HUAXIN has already achieved good accomplishment in China and has expanded to the world market depending on its constantly reliable performance. In addition, competitive price, swift delivery and good service play an important role in our company's success. Our worldwide representatives and sales network always help customers enjoy more professional calibration products and solutions.
1. What's the warranty?
1 year since you receive the instrument.
2. Lead time:
2-3 weeks after gettting payment.
3. Package:

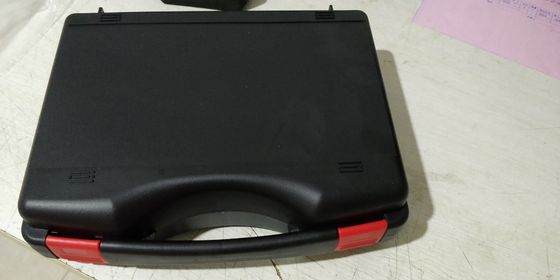

By paper carton with foam or plywood with foam.
4.Shipping:
By DHL, Fedex, TNT, EMS and others.
5. Payment:
T/T, paypal, Western Union, Trade assurance.
