HS721 Bench Type Pneumatic Pressure Calibration Comparator with -0.95-140 bar Pressure Range
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | sino instrument |
| Model Number: | HS721 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $800.00 - $2,000.00/pieces |
| Supply Ability: | 500 Piece/Pieces per Month HS721 Pneumatic Pressure Calibration Comparator |
|
Detail Information |
|||
| Name: | HS721 Portable Pneumatic Pressure Calibration Comparator | Pressure Range: | (-0.95~140)bar |
|---|---|---|---|
| Working Media: | Air | 2 Connection: | M20*1.5Female |
| Body Meterial: | Stainless Steel | Calibrate Objects: | Pressure ,differential Pressure, Transmitter, Precision Pressure Gauge |
| Adjust Resolution: | 10Pa(0.1mbar) | Use Field: | Lab |
Product Description
Product Description

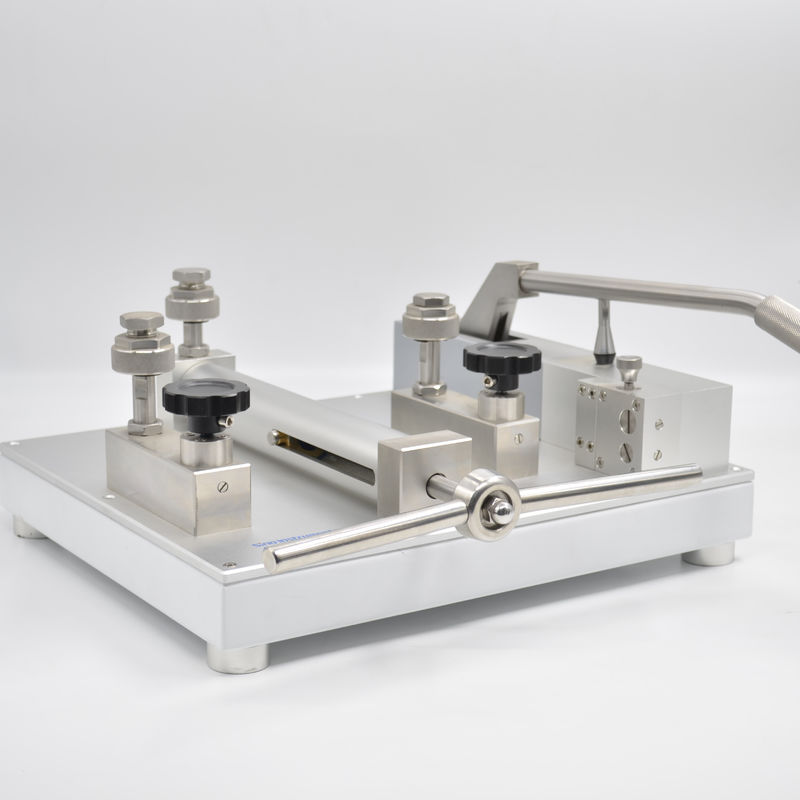

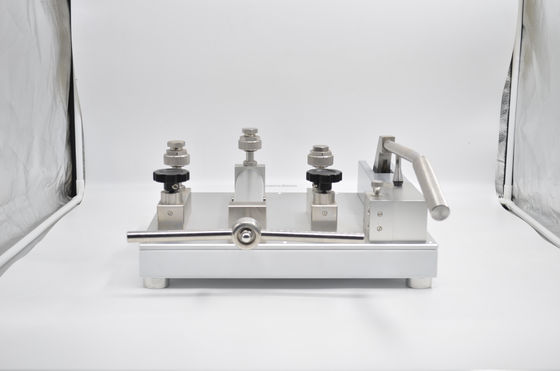

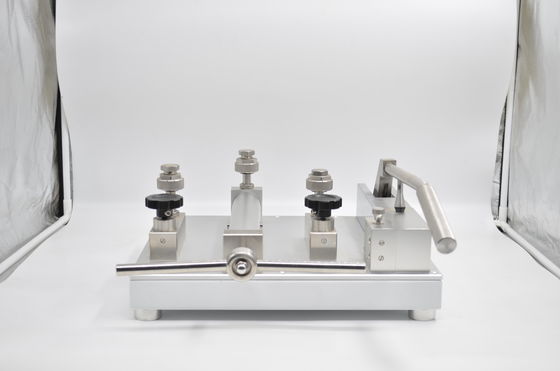

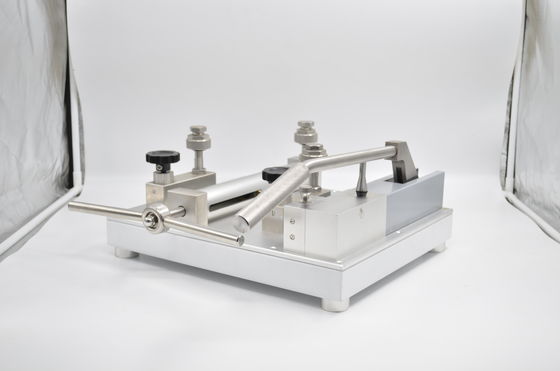

HS721 Portable Pneumatic Pressure Calibration Comparator is designed with a reverse valve, generated pressure from vacuum to 140bar.The F-adjust valve could accomplish 0.1mbar pressure resolution. Having 3 outputs with fast fittings, which is more effective to calibrate the under test pressure instruments . A built-in gas-oil isolator keeps the pump from oil impurity avoid some unnecessary maintenance.Especially the lever lead screw design makes user operate in economize labor. It widely calibrates pressure instruments in the laboratory.
Technical Specification
Generated pressure range:(-0.95~140)bar
Working media: Air
Adjust resolution:0.1mbar
Material : Body:Stainless Steel/Aluminium
Seals:Buna-N

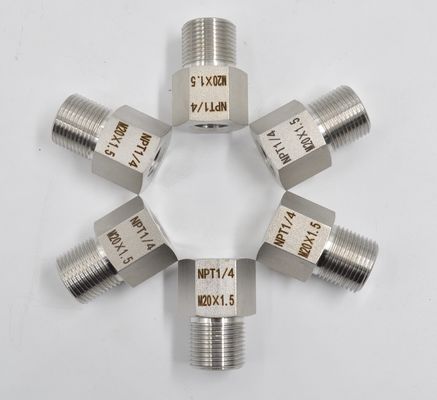

Output interface connection: M20×1.5Female*3pcs
Functions
HS721 provides pressure measurement for calibrating pressure (differential pressure) transmitter, precision pressure gauge, general pressure gauge and other pressure instruments.
It can be extensively used in power, chemical, petrol, metallurgy, metering, military industry, etc.
Characteristic
Easy operation, saving labor.
built-in gas-oil isolator keeps the pump from oil impurity avoid some unnecessary maintenance
Non-external pipe makes the system avoid the effects of environmental changes
The appearance is simple & beautiful.
