Technical Specification
◆ Generated pressure range:(-0.5~0.5)bar
◆ Working media:Air
◆ Adjust resolution:0.01mbar
◆ Material: Body:transparent plexiglass
Output part:stainless steel
Seals:Buna-N
◆ Output interface connection: M20×1.5Female
Differential port for connect gauges under test by hose
◆ Weight:2.55kg
◆ Dimensions:260L×180W×60H (mm)
 |
Compact Pneumatic Vacuum Pressure Comparison Pump -0.5-0.5 bar for Industrial Needs
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | SINO INSTURMENTS |
| Model Number: | HS700 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $400.00 - $800.00/pieces |
|
Detail Information |
|||
| Power: | Pneumatic | ||
|---|---|---|---|
Product Description

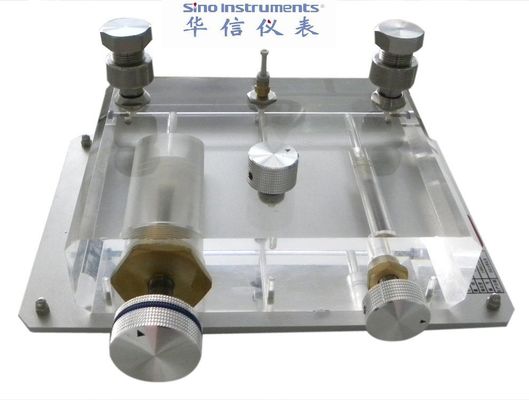

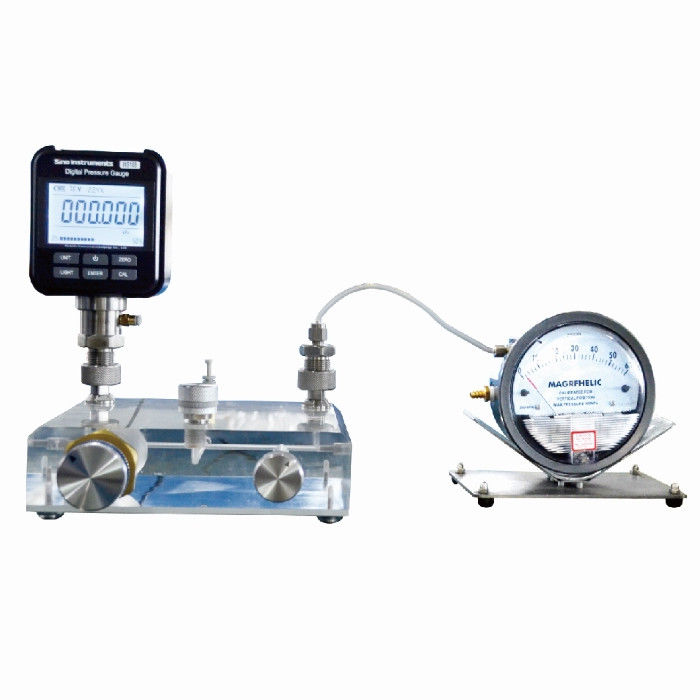

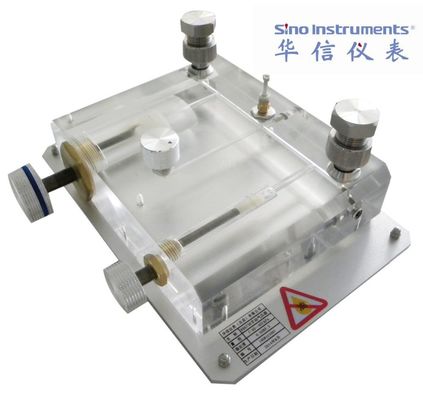

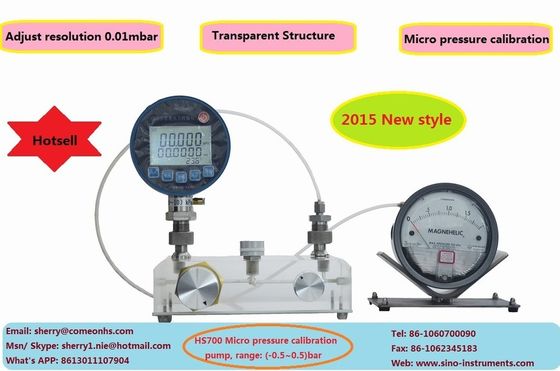

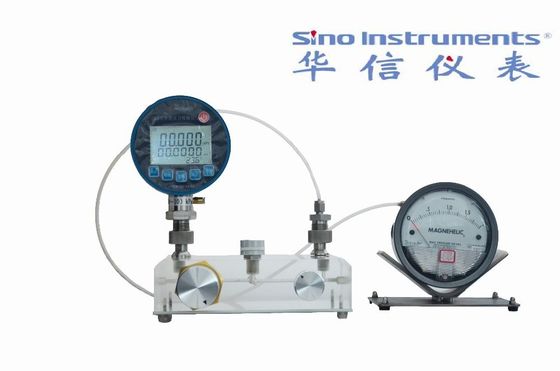

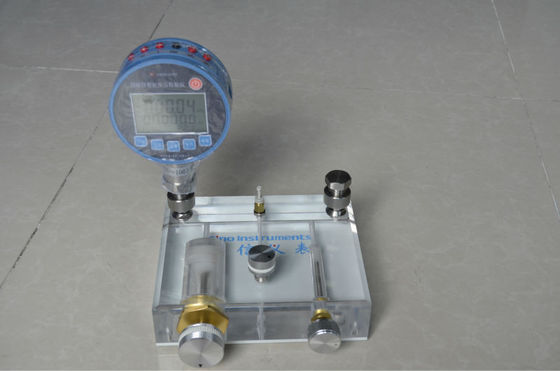

HS700 Micro Pressure Comparison Pump is made from high quality and transparent plexiglass material.The operation of piston inside can be seen clearly . The whole structure is more intuitive and compact.This instrument is specially designed to generate micro pressure from vacuum to 0.5bar. The F-adjust valve could accomplish 0.01mbar pressure resolution. HS700 is a very stable Mirco Pressure Calibrator. the design of relieve valve makes the system return to zero pressure quickly.two standard pressure outputs are easy to connect gauges under test without using the wrenches. the differential port also may connect gauges under test by hose. It widely calibrates micro pressure instruments in field and laboratory.
|
Product name
|
pressure Comparator
|
|
Model
|
HS700
|
|
range
|
(-0.5,0.5) bar
|
|
working media
|
air
|
|
Adjust resolution
|
0.01mbar
|
|
weight
|
2.6kg
|
|
Dimension
|
210mm×210mm×140mm
|
|
Material
|
Stainless Steel/Aluminium
|
Direction for use
-
Description of application effect
◆ Easy operation, saving labor.
◆ Fast connection, quick pressurizing
◆ Increasing pressure easily, convenient maintenance.
◆ The appearance is simple & beautiful.
◆ Fast connection, quick pressurizing
◆ Increasing pressure easily, convenient maintenance.
◆ The appearance is simple & beautiful.
HS705 provides pressure for calibrating pressure gauges, such as pressure (different pressure) transducers, precision pressure
gauges, general pressure gauges and other pressure gauges. It can be widely used in power, chemical, petrol, metallurgy, metering,
military industry, etc.
gauges, general pressure gauges and other pressure gauges. It can be widely used in power, chemical, petrol, metallurgy, metering,
military industry, etc.
Detailed Images
