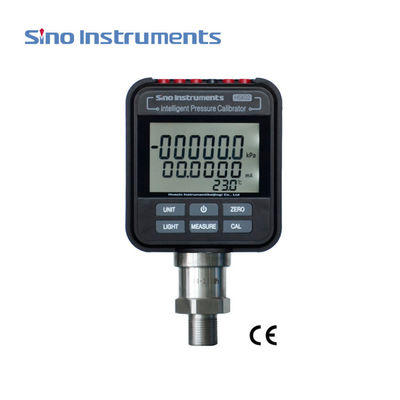

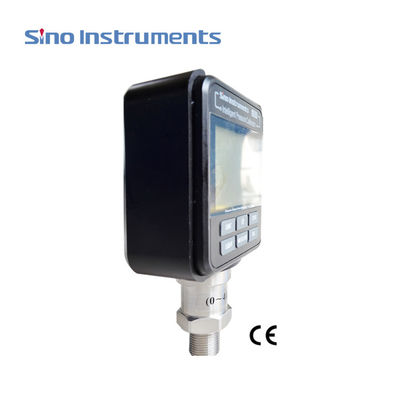

HS602 Intelligent Pressure Calibrator 24V Voltage and Current 4-20mA for Professional
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | Sino Instruments |
| Certification: | ISO17025 & CE approval |
| Model Number: | HS602 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $600.00 - $3,000.00/pieces |
| Supply Ability: | 500 Piece/Pieces per Month |
|
Detail Information |
|||
| Pressure Range: | (0-2500)bar,(-1-0)bar | Accuracy: | 0.025%f,s; 0.05%f.s |
|---|---|---|---|
| Connector: | 1/4NPT Male, M20*1.5 Male Or Customized | Communication Port: | RS232 |
| Hart: | Version 5 | Work Medium: | Air, Oil, Gas, Water, |
| Port: | FOB BEIJING | ||
Product Description
1.Summary
HS602 Intelligent pressure calibrator is a high-precision single-range digital pressure gauge with hart function. it is composed of high-precision measurement chips,DC24V power supply,rechargeable battery protection circuit,hart communication modules and intelligent digital pressure module and so on.
This unit can be used for real-time measurement of pressure value and the calibration of the pressure transmitters,differential pressure transmitters, pressure transducers and pressure gauges,etc.
Huaxin instrument (Beijing) Co.,Ltd
Add: Yilan Building , Chuangxin Road, Changping District, Beijing , China . 102200
Tel: 86-10-62392087 Fax: 86-10-62345183
Web: www.sino-instruments.com
l Pressure range up to 2500bar
l High accuracy up to 0.025%F.S
l Current measurement (0-25)mA
l Accuracy ±(0.02%RD+0.005%F.S)
l Voltage measurement (0-25)V
l Accuracy ±(0.02%RD+0.005%F.S)
l Pressure switch test
l HART Communication capability
l Advanced temperature compensating
l 24VDC power for Pressure transimtter testing
l Large,easy to read display with 6-digit resolution
l RS232 communication with PC
l With Max and min values function
l Zero point,full scale calibration function
l Nine pressure units selectable
l Equipment with rugged ABS plastic
l Rechargeable lithium battery or charger
l Data storing function
l Large LCD with white backlight,dual readout
l Light weight,small size,easy operation
* Model HS602 Intelligent Pressure Calibrator
* Accuracy ±0.025% F.S, ±0.05% F.S
* Electric signal
Current measurement:(0-25)mA
Accuracy:±(0.02%RD+ 0.005%F.S)
Voltage measurement:(0-25)V
Accuracy:±(0.02%RD+ 0.005%F.S)

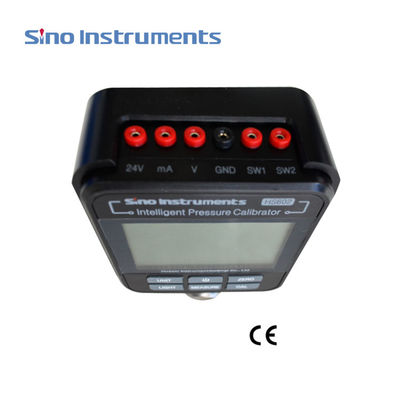

DC output:DC24V(≤30mA)
Accuracy:±1%F.S
* Gauge types
Gauge pressure
Compound pressure
Absolute pressure
Differential pressure
* Work medium Oil, water&noncorrosive gases
* Over pressure alarm 120%Full Scale

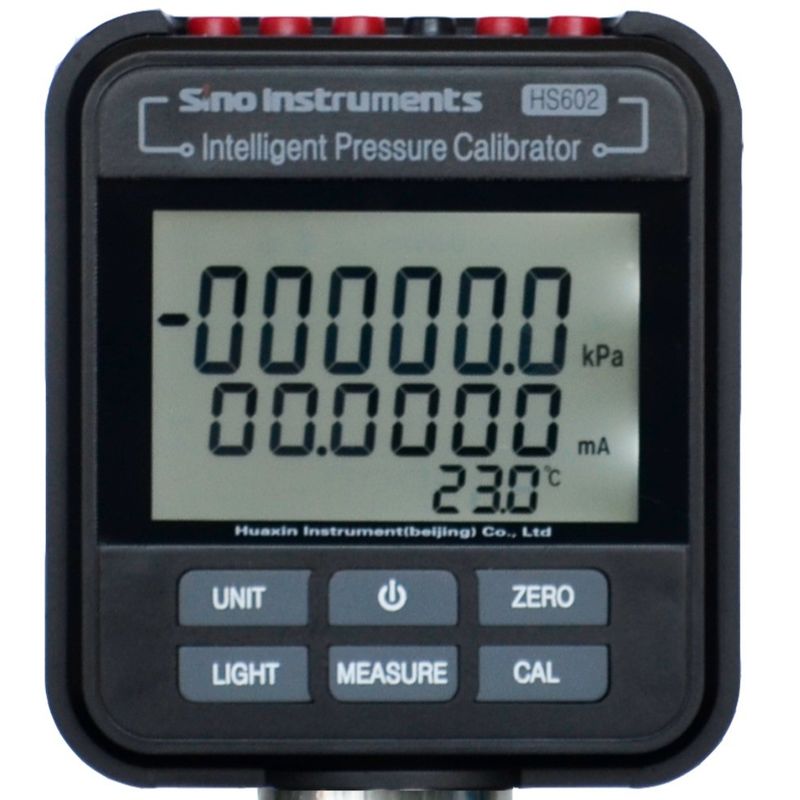

* Display Description:6 digits big LCD with blacklight
Display rate:Less than 0.025% of full scale is 150ms,more than 0.025% of full scale is 1s Numeral display height:16.5mm (0.65")
*Pressure unit psi,bar, mbar,kgf/cm2,Pa,kPa, MPa,mmH2O,mmHg
* Temperature Compensated temperature: -10°C to 50°C
Operating temperature: -10°C to 50°C
Humidity:<95%
Storing temperature:-20°C to 70°C
* Pressure connection 1/4NPT male,M20×1.5 male Other connections customized
* Power Battery:One piece 8.4Vdc rechargeable lithium battery&charger
Battery life:80 hours
* Housing Case material:Plastic ; Wetted parts:316 stainless steel ;Dimension:Φ95mmx49mm
Total height:166(mm) Weight:0.75kg
* Data storing Storage capacity:calibration record of 30pcs gauge under test
* Communication RS232
