Stainless Steel Output Part Pressure Pump for Accurate Air Pressure Gauge Calibration
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | Sino Instruments |
| Model Number: | HS700 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1.00 - $2.00/units |
| Packaging Details: | Paper Carton |
| Supply Ability: | 100 Unit/Units per Month |
|
Detail Information |
|||
| Generated Pressure Range: | (-0.5-0.5)bar | Working Media: | Air |
|---|---|---|---|
| Adjust Resolution: | 0.01mbar | Body: | Transparent Plexiglass |
| Output Part: | Stainless Steel | Seals: | Buna-N |
| Output Interface: | M20*1.5Female | Weight: | 2.55kg |
| Port: | Beijing | ||
Product Description
Description

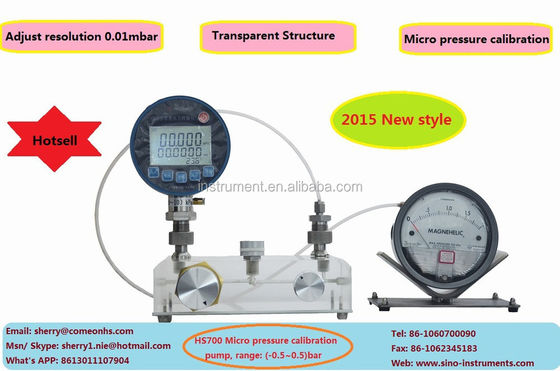

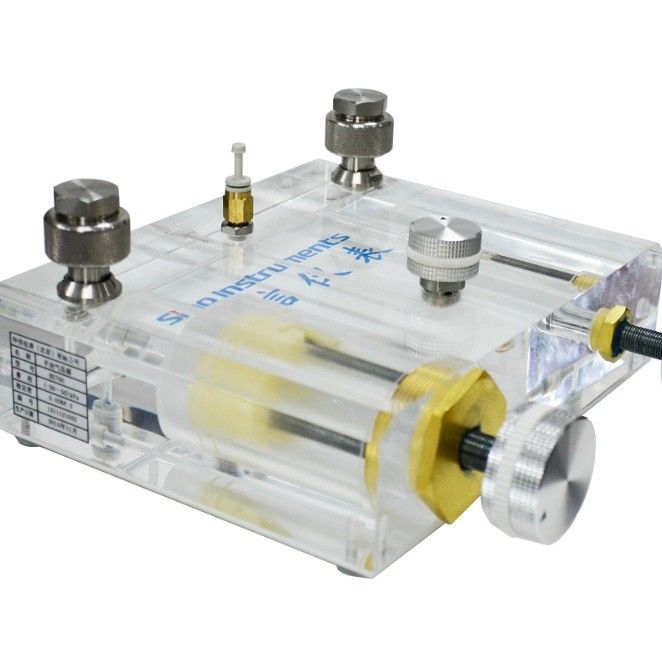

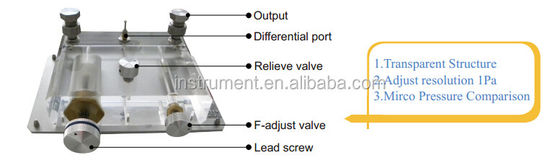

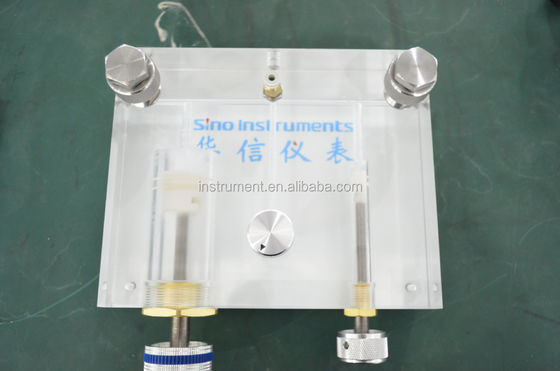

HS700 Micro Pressure Comparison Pump is made from high quality and transparent plexiglass material. The operation of piston inside can be seen clearly . The whole structure is more intuitive and compact. This instrument is specially designed to generate micro pressure from vacuum to 0.5bar. The F-adjust valve could accomplish 0.01mbar pressure resolution. HS700 is a very stable Mirco Pressure Calibrator. the design of relieve valve makes the system return to zero pressure quickly.two standard pressure outputs are easy to connect gauges under test without using the wrenches. the differential port also may connect gauges under test by hose. It widely calibrates micro pressure instruments in field and laboratory.
Specifications
l Generated pressure range:(-0.5-0.5)bar
l Working media:Air
l Adjust resolution:0.01mbar
l Material:
Body:transparent plexiglass
Output part:stainless steel
Seals:Buna-N
l Output interface connection: M20×1.5Female
Differential port for connect gauges
under test by hose
l Weight:2.55kg
l Dimensions:260L×180W×60H(mm)
