Professional M20*1.5 Female Outputs Manual Pneumatic Pressure Comparator 3pcs Outputs
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | sinoinstruments |
| Model Number: | HS721 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1,000.00 - $2,000.00/pieces |
| Supply Ability: | 500 Piece/Pieces per Month |
|
Detail Information |
|||
| Power: | Penumatic | Pressure Range: | (-0.95~140) Bar |
|---|---|---|---|
| Warranty: | 1 Year | Weight: | 14.5kg |
| Outputs: | M20*1.5female*3pcs | Material: | Stainless Steel |
| Type: | Hand Tool | ||
Product Description

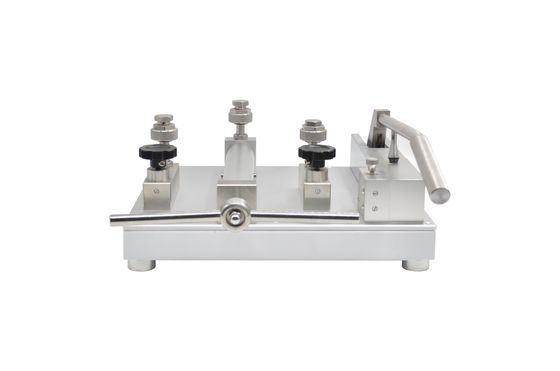

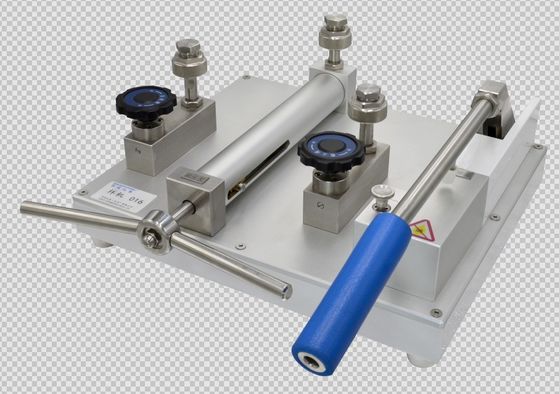

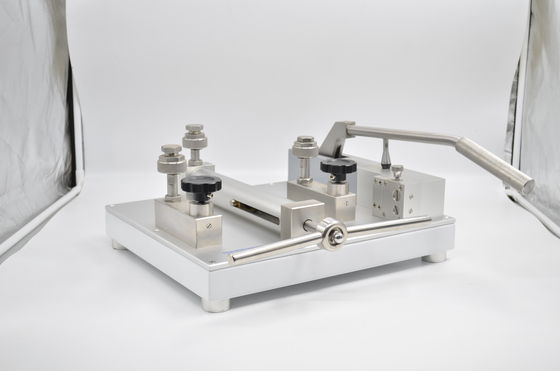

HS721 Manual Pneumatic Pressure Comparator

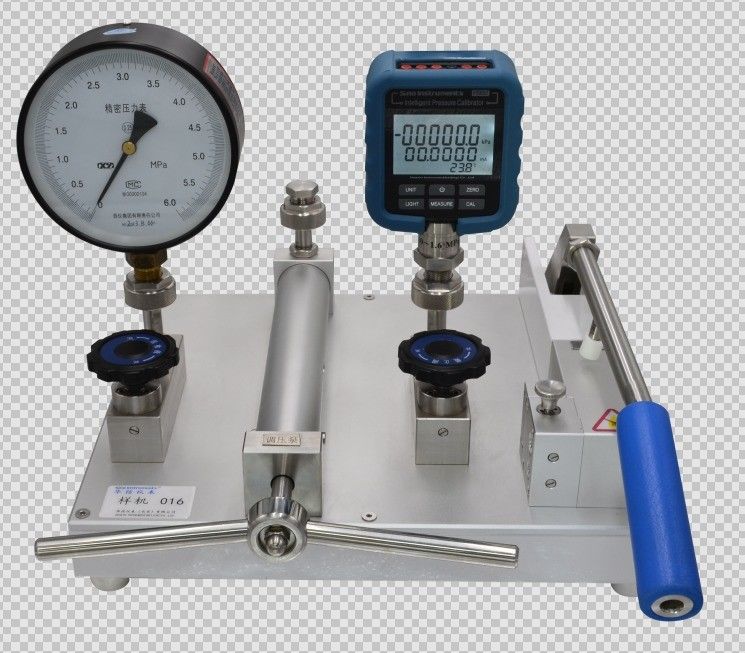

HS721 Pneumatic Pressure Comparator is designed with a reverse valve, generated pressure from vacuum to 140bar.The F-adjust valve could accomplish 0.1mbar pressure resolution. Having 3 outputs with fast fittings, which is more effective to calibrate the under test pressure instruments . A built-in gas-oil isolator keeps the pump from oil impurity avoid some unnecessary maintenance.Especially the lever lead screw design makes user operate in economize labor. It widely calibrates pressure instruments in the laboratory.
Characteristics
Food grade stainless steel and hermetic technology in the military industry
High precision, stable pressure generating, easy operation.
Wide pressurized range, high vacuum degree
High reliability, Wide micro-adjusting range
| Technical Specification | |
| Pressure Range: | (-0.95~60/140) bar |
| Working Medium: | Air |

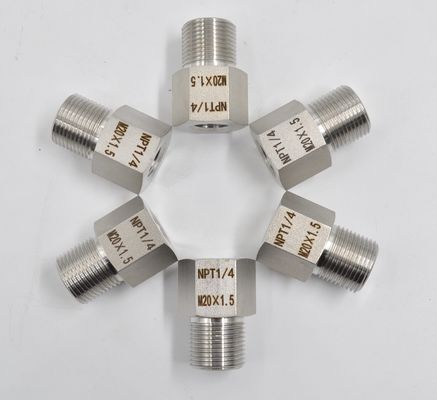

| Output Interface: | M20×1.5 Female*3pcs |
| Weight: | 14.5kg |
