HS721 Portable Pneumatic Pressure Calibration Pump for Various Applications
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | huaxin |
| Model Number: | HS721 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $900.00 - $1,800.00/sets |
| Packaging Details: | export package |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Structure: | SCREW PUMP | Application: | Metering |
|---|---|---|---|
| Power: | Pneumatic | Pressure: | High Pressure |
| Pressure Range: | (-0.95~140)bar | Medium: | Air |
| Outputs: | M20*1.5female * 3pcs | Weight: | 14kgs |
| Type: | Bench Type | Warranty: | 1 Year |
| Fuel: | Air | Port: | Beijing |
Product Description

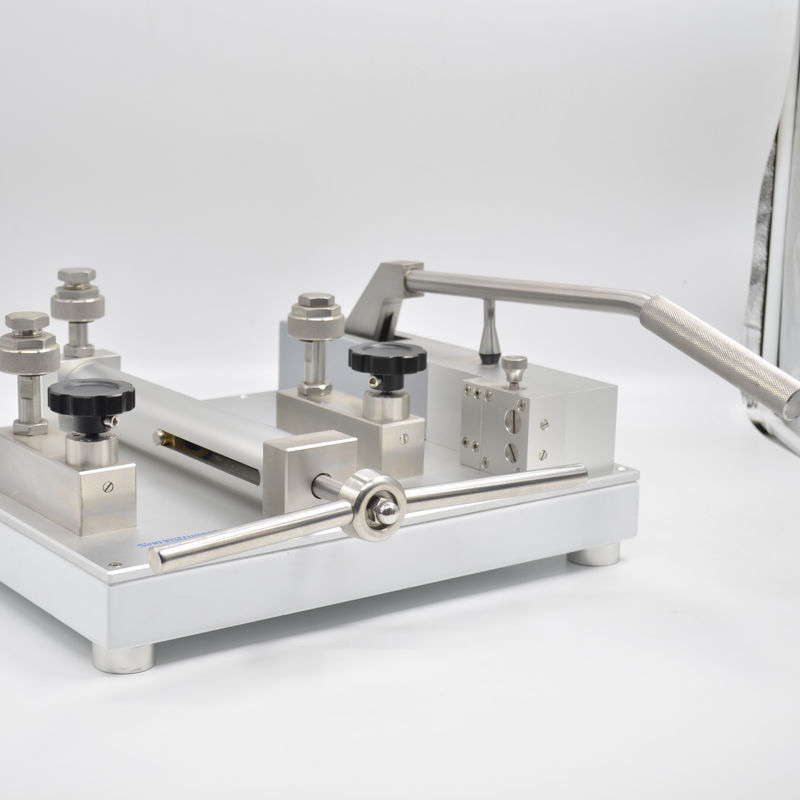

HS721 Portable Pneumatic Pressure Calibration Pump
Product Description
HS721 Portable Pneumatic Pressure Calibration Pump consists of hand pump, lead screw, reverse valve, relieve valve and output interface. It features high sealing, stable pressure generating and simple operation. It is suitable in the laboratory. It could supply the pressure for calibrating pressure (differential pressure) transmitter, precision pressure gauge, general pressure gauge and other pressure instruments.
Characteristics
-Food grade stainless steel and hermetic technology in the military industry
-High precision, stable pressure generating, easy operation.
-Wide pressurized range, high vacuum degree
-High reliability, Wide micro-adjusting range
Technical Specification
-Pressure Range: (-0.95~140) bar
-Stability: Above 0.05%F.S
- Working Media: Air

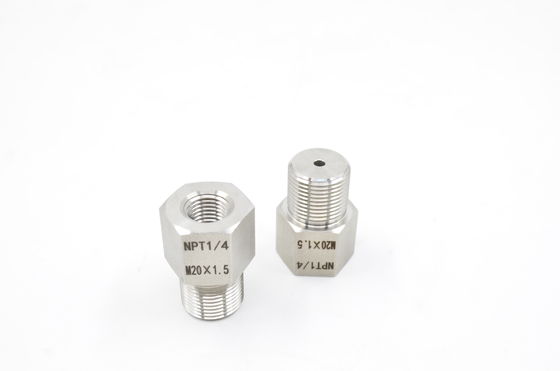

-Output Interface: M20×1.5 Female
-Dimensions (L×W×H): 380mm×380mm×200mm
-Weight: 14.8Kg
