Accurate 60 Bar Gauge Calibration Pump HS721 for Pressure Range -0.95-60 bar and 14.8KGS
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | Sino- instruments |
| Model Number: | HS721 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $900.00 - $1,800.00/pieces |
| Supply Ability: | 200 Piece/Pieces per Month |
|
Detail Information |
|||
| Customized Support: | OEM | Pressure Range: | (-0.95~60) Bar; (-0.95~140)bar |
|---|---|---|---|
| Weight: | 14.8KGS | Working Media: | Air |
| Warranty: | 1 Year | Brand: | Huaxin |
| Port: | Beijing | ||
Product Description

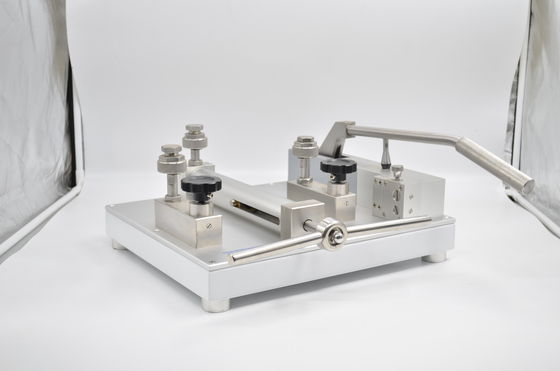

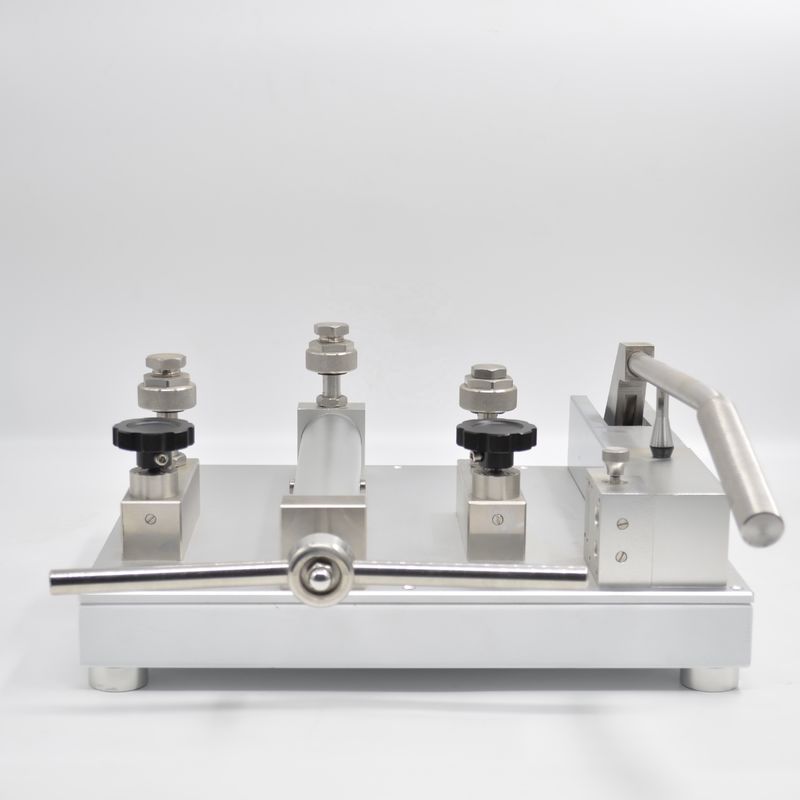

HS721 Pneumatic Pressure test Pum is designed with a reverse valve, generated pressure from vacuum to 60bar or 140bar.The F-adjust valve could accomplish 10Pa (0.1mbar) pressure resolution. Having 3 outputs with fast fittings, which is more effective to calibrate 2pcs under test pressure instruments together. A built-in gas-oil isolator keeps the pump from oil impurity avoid some unnecessary maintenance. Especially the lever lead screw design makes user operate in economize labor. It widely calibrates pressure instruments in the laboratory.
HS721 Pneumatic Pressure test Pump Function
HS721 provides pressure measurement for calibrating pressure (differential pressure) transmitter, precision pressure gauge, general pressure gauge and other pressure instruments.
It can be extensively used in power, chemical, petrol, metallurgy, metering, military industry, etc.
HS721 Pneumatic Pressure test Pum Technical Specification
| Generated pressure range | (-0.95~60)bar ; (-0.95~140)bar |
| Working media | Air |
| Adjust resolution | 10Pa(0.1mbar) |
| Material | Body:Stainless Steel/Aluminium Seals:Buna-N |
| Output interface connection | M20×1.5Female |
| Weight | 14.8kg |
| Dimensions | 380L×380W×200H (mm) |
