Professional -0.95-60 bar Pneumatic Comparator for Accurate Pressure Calibration
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | SINO INSTRUMENTS |
| Model Number: | HS721 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1,000.00 - $2,000.00/pieces |
| Packaging Details: | standard packing |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Pressure Range: | (-0.95~60) Bar | Port: | Beijing Airport |
|---|---|---|---|
Product Description

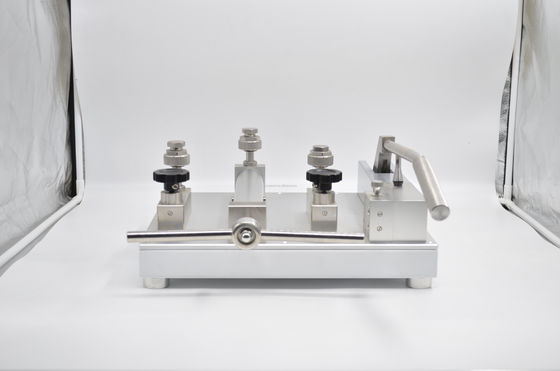

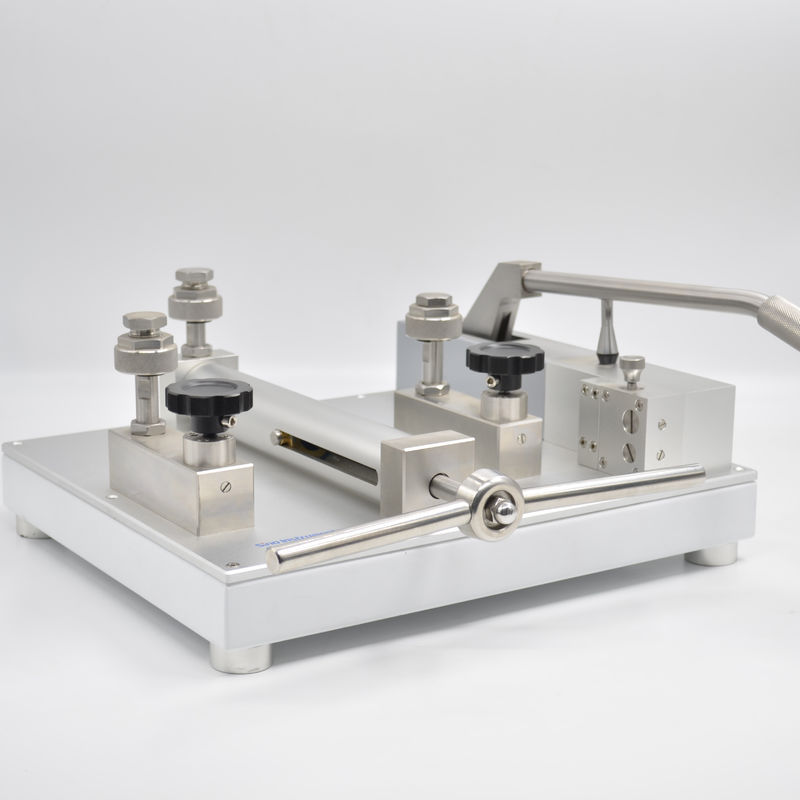

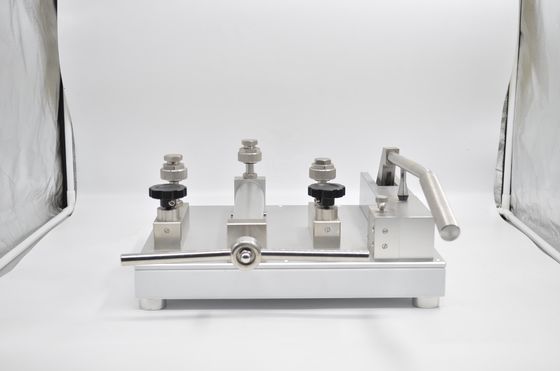

HS721 Pneumatic Comparator consists of hand pump, lead screw , reverse valve, relieve valve, and output interface .It features high sealed performance, stable pressure generating and simple operation. it is suitable in the laboratory. It could supply the pressure for the calibrating pressure (differential pressure) transmitters,precision pressure gauges ,general pressure gauges and other pressure instruments.
Functions
HS721 Pneumatic Comparator provides pressure for calibrating pressure gauges, as pressure (different pressure) transmitters, precision pressure gauges, general pressure gauges and other pressure instruments. It can be extensively used in power, chemical, petrol, metallurgy, metering, military industry etc.
Characteristics
- Stainless steel ,hermetic technology in the military industry
- Stable generating pressure, convenient maintenance,easy operation,
- Wide pressurized range, high vacuum degree
- High reliability, wide micro-adjusting range
Technical Specification
| Pressure range | (-0.95~60) bar |
| Ports | 2pcs |
| Working Media | air |
| Output Interface | M20×1.5 Female |
| Dimensions(L×W×H) | 380mm×380mm×200mm |
| Weight | 14Kg |
