Compact AIR Vacuum Pressure Testing Equipment HX673A for Pressure Range -0.95- 60 bar
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | sinoinstruments |
| Model Number: | HX673A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $500.00 - $1,000.00/sets |
| Packaging Details: | paper carton |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Power: | AIR | Model: | HS703 |
|---|---|---|---|
| Pressure Range: | (-0.95~ 60) Bar | Working Media: | Air |
| Port: | Beijing | ||
Product Description

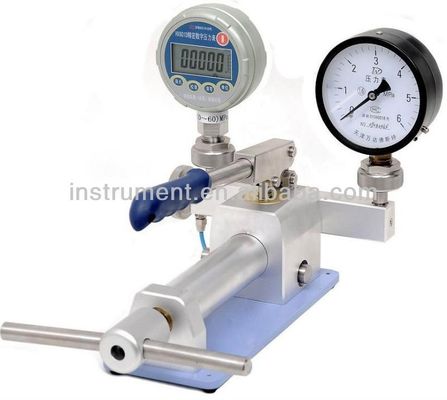

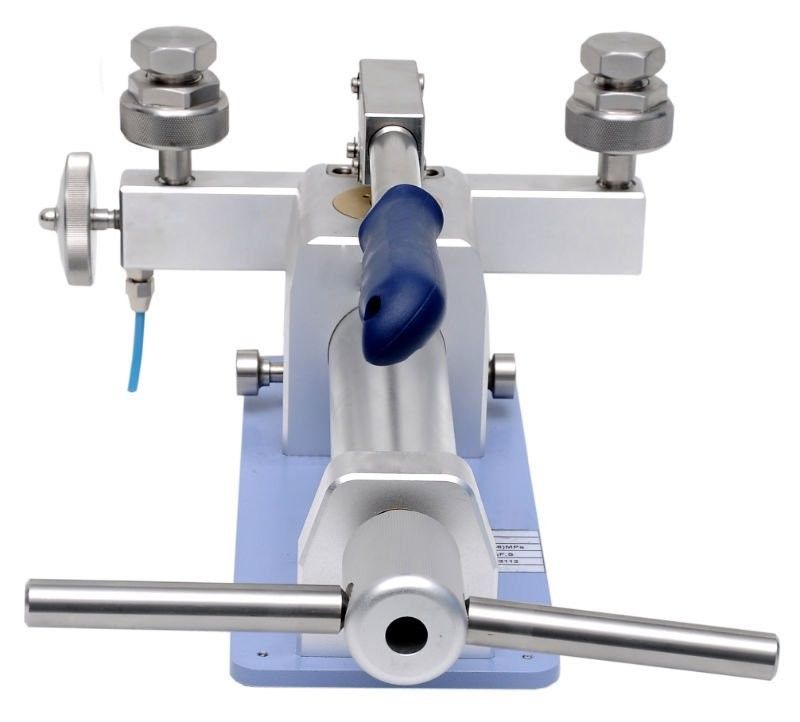

HX673A Vacuum Pressure Testing Equipment
Description
HX673A Vacuum Pressure Testing Equipment is made up of lead screw; relieve valve, reversing valve, and output interface.
Functions
HX673A Vacuum Pressure Testing Equipment can supply pressure for calibrating pressure gauges, Such as pressure (differential pressure) transducers, precision pressure gauges, general pressure gauges and other pressure gauge.
Technical Specification
| Pressure range | (-0.95~ 60) bar |
| Accuracy | 0.02% F.S |
| Pressure-transmitting media | air |
| Output interface | M20×1.5 Female |
| Overall Dimensions | 325×210×170mm |
| Weight | 8Kg |
