5kgs HS705 Hydraulic Pressure Comparison Pump with 0-700bar Pressure Range
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | Sino Instruments |
| Model Number: | HS705 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $600.00 - $1,200.00/pieces |
| Supply Ability: | 500 Piece/Pieces per Month |
|
Detail Information |
|||
| Pressure Range: | (0~700)bar | Brand: | Huaxin |
|---|---|---|---|
| Work Medium: | 25#Transformer Oil | Connector: | M20X1.5 |
| Warranty: | 1 Year | Weight: | 5kgs |
| Port: | Fob Beijing | ||
Product Description

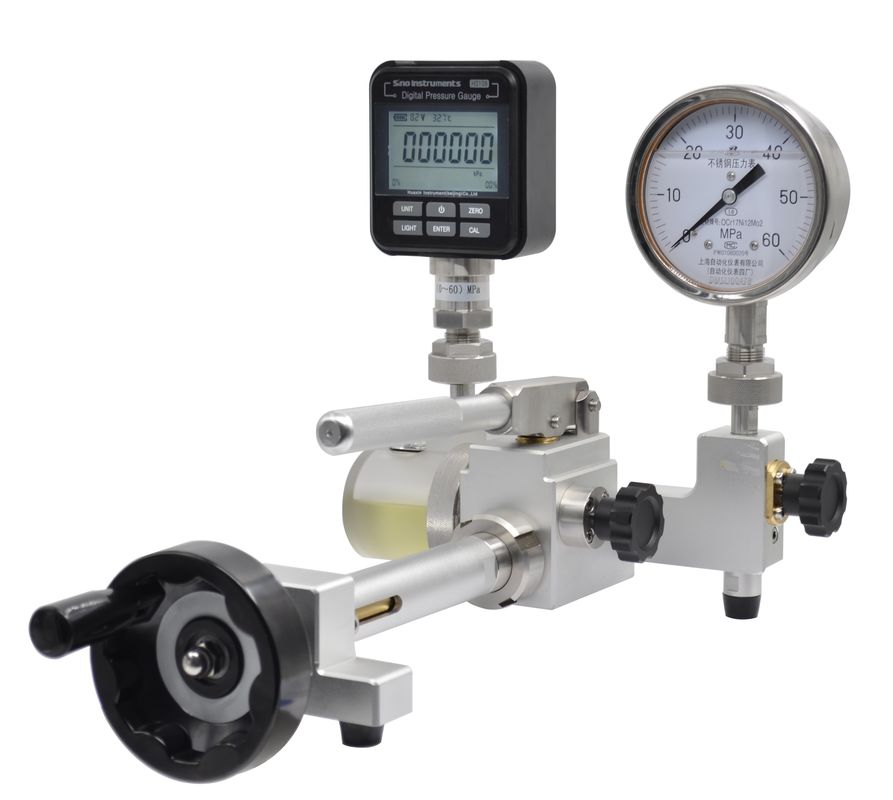

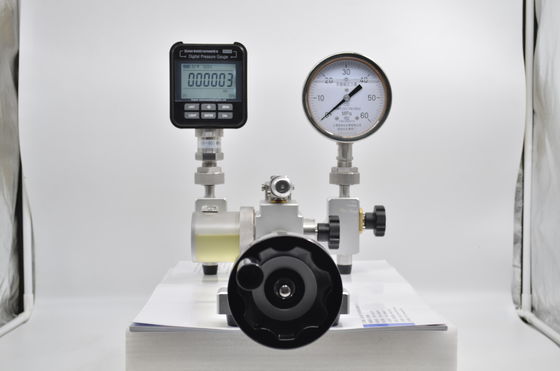

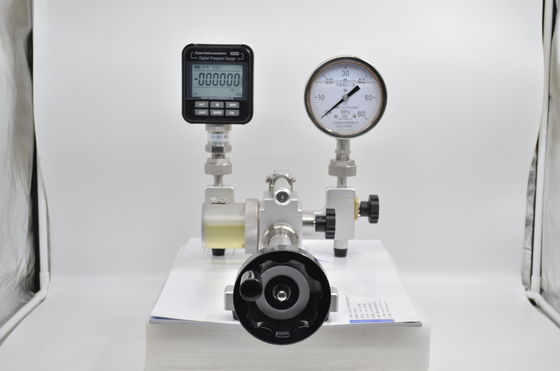

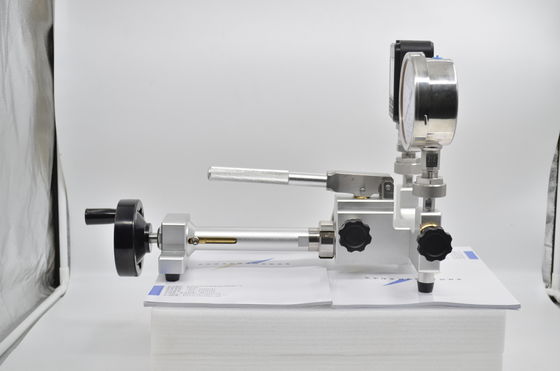

HS705 Hydraulic comparator adopts advanced stainless steel and aluminum alloy special process.The lead screw design makes the high pressure operation more easy and save labor,the F-adjust valve adjust the exact pressure value.A detachable oil cup is easy to clean and maintenance,user could check the work medium timely from the transparent oil cover. Two standard pressure outputs are easy to connect gauges under test without using the wrenches.It widely calibrates pressure instruments in field and laboratory
HS705 provides pressure for calibrating pressure gauges,such as pressure (different pressure) transducers,precision pressure gauges,general pressure gauges and other
pressure gauges.It can be widely used in power,chemical,
petrol, metallurgy, metering,military industry,etc.
l Compact dimension,light weight
l Portable structure
l Pressure range to 700bar
l Easy operation,saving labor
l Fast connection,quick pressurizing
l Increasing pressure easily,convenient maintenance
l The appearance is simple & beautiful
Model:HS705 Hydraulic comparator
Generated pressure range:(0~70)MPa
Working media:25#transformer oil
Adjust resolution:0.001bar(0.1kPa)
Material:Stainless Steel/Aluminium for body;Stainless steel for outputs;Buna-N for seals
Output interface connection:M20×1.5Female
Package:Carrying black bag.Specialized cartons and foam wrarp(optional)
Dimensio5.2kgs
1. What's the warranty?
1 year since you receive the instrument.
2. Lead time:
2-3 weeks after gettting payment.
3. Package:
By paper carton with foam or plywood with foam.
4.Shipping:
By DHL, Fedex, TNT, EMS and others.
5. Payment:
T/T, paypal, Western Union, Trade assurance.
