Professional Hydraulic Pressure Comparison Pump for Industrial Applications
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | Sino Instruments |
| Model Number: | HS705 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $700.00 - $1,000.00/units |
| Supply Ability: | 200 Unit/Units per Month |
|
Detail Information |
|||
| Customized Support: | OEM | Power: | Hydraulic |
|---|---|---|---|
| Generated Pressure Range: | (0~600/700)bar | Working Media: | 25#transformer Oil, Distilled Water |
| Adjust Resolution: | 0.1mbar | Body: | Stainless Steel /Aluminium |
| Seals: | Buna-N | Output Interface: | M20*1.5Female |
| Weight: | 2.7kg | Dimensions: | 210L*210W*140H(mm) |
Product Description

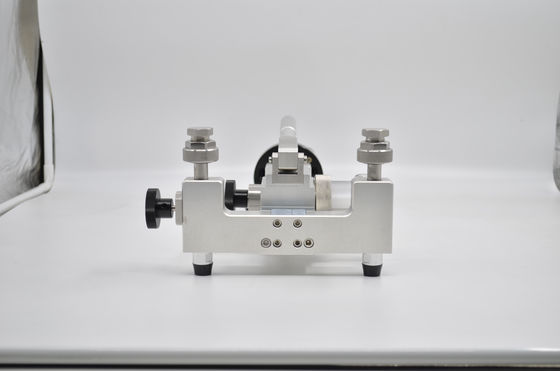

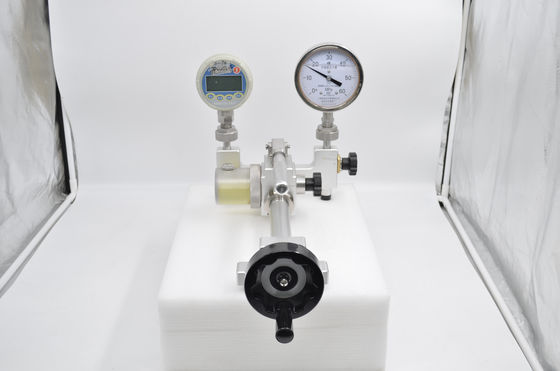

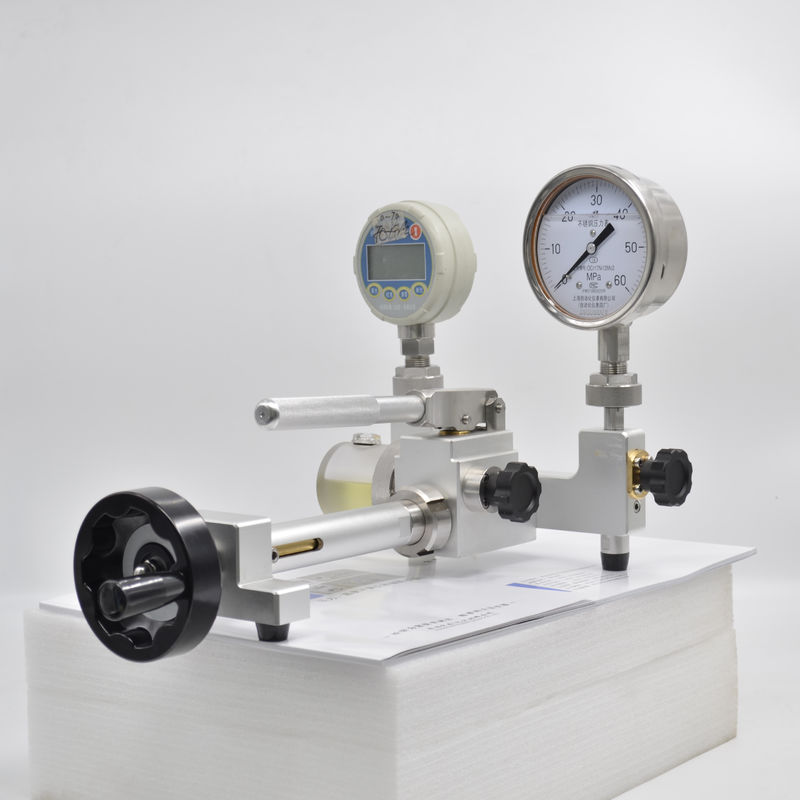

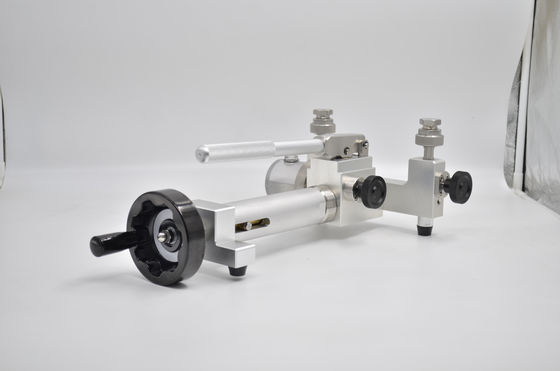

HS705 Hydraulic Pressure Comparison Pump adopts advanced stainless steel and aluminum alloy special process, compact dimension, light weight. It is portable structure and designed to generate pressure range up to 700bar. The screw pump design makes the high pressure operation more easy and save labor, the F-adjust valve adjust the exact pressure value.A detachable oil cup is easy to clean and maintenance, user could check the work medium timely from the transparent oil cover. Two standard pressure outputs are easy to connect gauges under test without using the wrenches. It widely calibrates pressure instruments in field and laboratory.
Specifications
l Generated pressure range:
(0~600/700)bar
l Working media:
25#transformer oil, Distilled water
optional,The model HS705A
l Adjust resolution:0.1mbar
l Material:
Body:Stainless steel /Aluminium
Seals:Buna-N
l Output interface connection: M20×1.5Female
l Weight:2.7kg
Dimensions:210L×210W×140H(mm)
