Transformer Oil Hand Hydraulic Calibration Pressure Pump with 210mm*210mm*140mm Size

Transformer Oil Hand Hydraulic Calibration Pressure Pump with 210mm*210mm*140mm Size

Product Details:

Place of Origin: Beijing, China
Brand Name: sino instrument
Model Number: HS705

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $700.00 - $1,000.00/pieces
Supply Ability: 500 Piece/Pieces per Month HS705 hot sell hand hydraulic calibration pressure pump
Get Best Price Contact Now

Detail Information

Name: HS705 Hot Sell Hand Hydraulic Calibration Pressure Pump Pressure Range: (0~700) Bar
Working Medium: 25# Transformer Oil Material: Stainless Steel/Aluminium
Weight: 2.6kg Dimensions: 210mm*210mm*140mm
Adjust Resolution: 0.1kPa Output Interface: M20*1.5 Female
Type: Hydraulic Package: Carton

Product Description

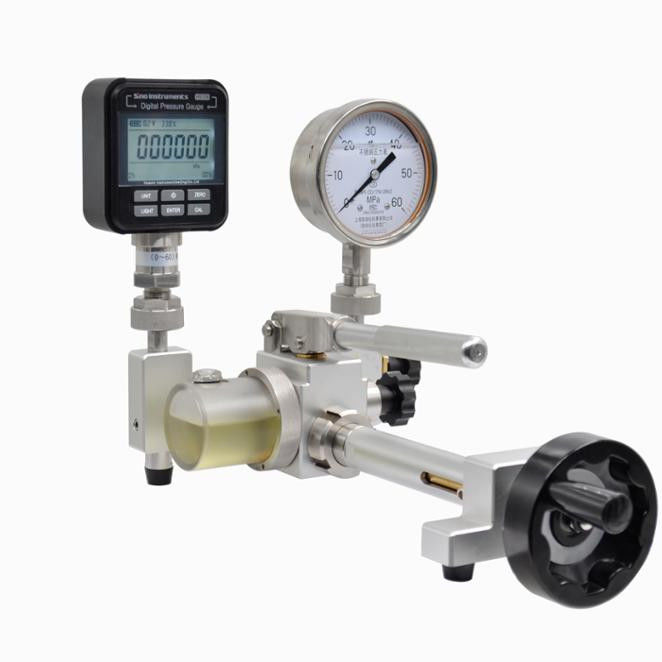

  HS705 hand calibration pressure pump

HS705 hand calibration pressure pump adopts advanced stainless steel and lithium alloy special process, compact dimension, light weight. It is portable structure and designed to generate pressure range up to 700bar. The screw pump design makes the high pressure  operation more easy and save labor, the F-adjust valve adjust the exact pressure value .A detachable oil cup is easy to clean and maintenance, user could check the work medium timely from the transparent oil cover. Two standard pressure outputs are easy to connect gauges under test without using the wrenches. It widely calibrates pressure instruments in field and laboratory.



pressure range (0~700) bar
Working Medium 25# Transformer oil
weight 2.6kg
Adjust resolution 0.1kPa
Material Body:Stainless Steel/Aluminium    Seals:Buna-N
Output Interface M20*1.5 Female
Dimensions  2.6kg
calibrating pressure gauges, such as pressure (different pressure) transducers, precision pressure gauges, general pressure gauges and other pressure gauges



Characteristics

C.Easy operation, saving labor.

C. Fast connection, quick pressurizing

C. Increasing pressure easily, convenient maintenance.

C. The appearance is simple & beautiful.

 Transformer Oil Hand Hydraulic Calibration Pressure Pump with 210mm*210mm*140mm Size 0

 Transformer Oil Hand Hydraulic Calibration Pressure Pump with 210mm*210mm*140mm Size 1Transformer Oil Hand Hydraulic Calibration Pressure Pump with 210mm*210mm*140mm Size 2Transformer Oil Hand Hydraulic Calibration Pressure Pump with 210mm*210mm*140mm Size 3Transformer Oil Hand Hydraulic Calibration Pressure Pump with 210mm*210mm*140mm Size 4

Company Information

 HUAXIN INSTRUMENT (BEIJING) CO., LTD. is a highly reputed organization dedicated to  manufacturing high-quality pressure and temperature calibrator products. During considerable development, our products have already been widely used in the industries of power, chemical, petrol, metallurgy, metering, etc.

we have joined in setting industry standard for product safety, operability, durability and reliability in China. Besides, our company has been accredited to ISO9001:2008 international quality management system certification since its standardized operation. Furthermore, CE approval is also smoothly passed

Transformer Oil Hand Hydraulic Calibration Pressure Pump with 210mm*210mm*140mm Size 5



company HUAXIN INSTRUMENT(BEIJING)CO.,LTD.
web www.sino-instruments.com
Add Yilan Building,Huoju St,Changping Dist, Beijing,102200,China
Tel 86-10-62392087 ; whatsapp 8613011107904
Fax 86-10-62345183
