◆ Pressure Range: (0~600)bar, (0~700) bar
◆ Working Medium: 25# Transformer oil
◆ Adjust resolution:1mbar
◆ Material : Body:Stainless Steel/Aluminium
Seals:Buna-N
◆ Output Interface: M20*1.5 Female
◆ Weight:2.6kg
◆ Dimension (L×W×H): 210mm×210mm×140mm
 |
Hydraulic Oil Pressure Comparator 0-700 bar The Perfect Addition to Your Machinery
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | SINO INSTURMENTS |
| Model Number: | HS705 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1.00 - $1.99/pieces |
|
Detail Information |
|||
| Power: | Hydraulic | ||
|---|---|---|---|
Product Description
Product Description

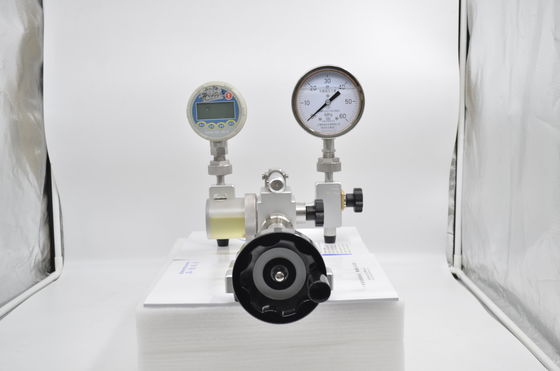

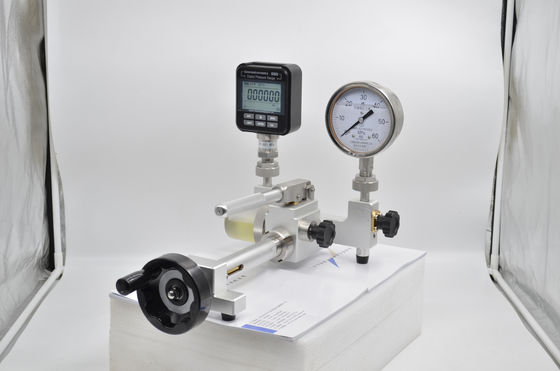

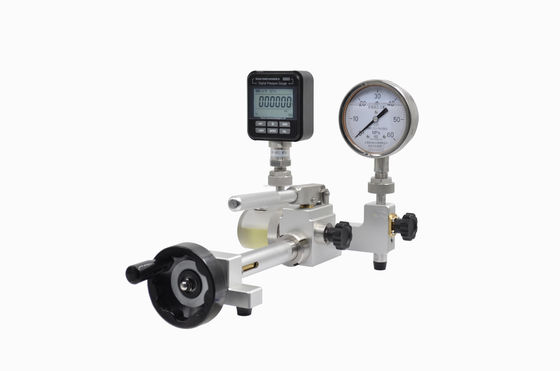

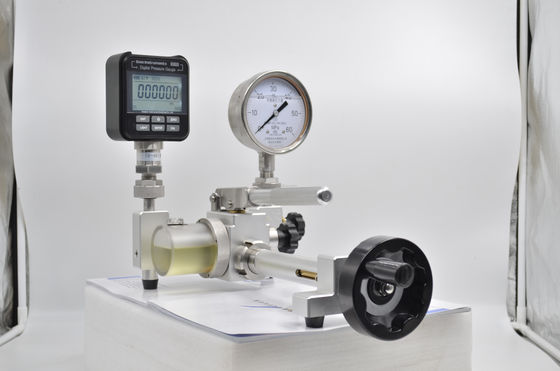

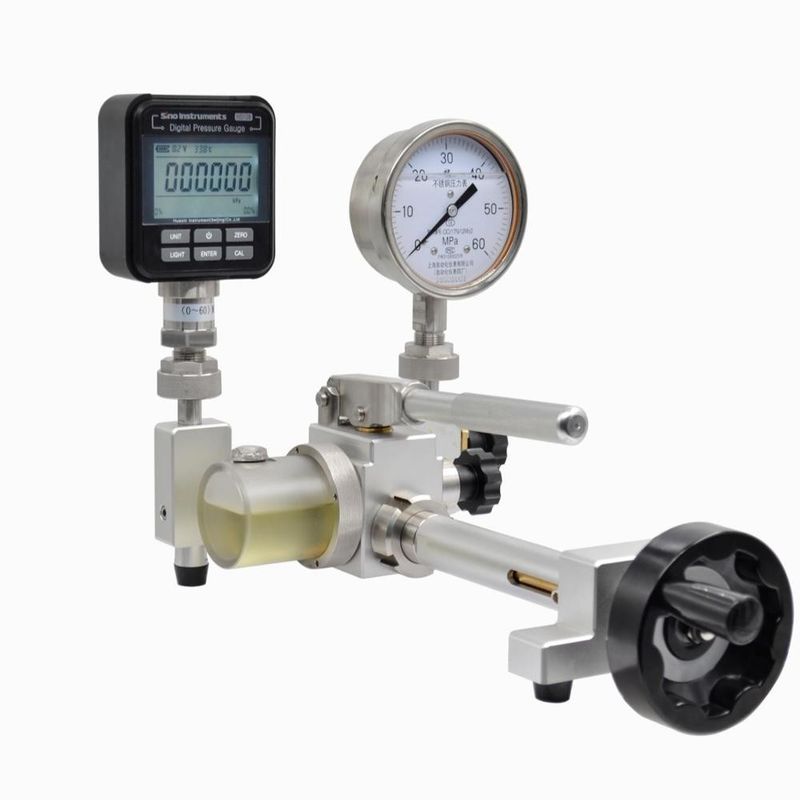

HS705 Hydraulic Pressure Comparison Pump adopts advanced stainless steel and lithium alloy special process, compact dimension,light weight. It is portable structure and designed to generate pressure range up to 700bar. The screw pump design makes the high pressure operation more easy and save labor, the F-adjust valve adjust the exact pressure value .A detachable oil cup is easy to clean and maintenance, user could check the work medium timely from the transparent oil cover. Two standard pressure outputs are easy to connect gauges under test without using the wrenches. It widely calibrates pressure instruments in field and laboratory.
|
Product name
|
pressure Comparator
|
|
Model
|
HS705
|
|
range
|
(0~600)bar, (0~700) bar
|
|
working media
|
25# Transformer oil
|
|
Adjust resolution
|
1mbar
|
|
weight
|
2.6kg
|
|
Dimension
|
210mm×210mm×140mm
|
|
Material
|
Stainless Steel/Aluminium
|
|
temperature
|
(-10,50)℃
|
Direction for use
-
Description of application effect
◆ Easy operation, saving labor.
◆ Fast connection, quick pressurizing
◆ Increasing pressure easily, convenient maintenance.
◆ The appearance is simple & beautiful.
◆ Fast connection, quick pressurizing
◆ Increasing pressure easily, convenient maintenance.
◆ The appearance is simple & beautiful.
HS705 provides pressure for calibrating pressure gauges, such as pressure (different pressure) transducers, precision pressure
gauges, general pressure gauges and other pressure gauges. It can be widely used in power, chemical, petrol, metallurgy, metering,
military industry, etc.
gauges, general pressure gauges and other pressure gauges. It can be widely used in power, chemical, petrol, metallurgy, metering,
military industry, etc.
