HS705 Hydraulic Pressure Comparison Pump Pressure Range 0-600/700 Bar for Industrial
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | Sino Instruments |
| Model Number: | HS705 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $600.00 - $1,000.00/pieces |
| Supply Ability: | 300 Piece/Pieces per Month |
|
Detail Information |
|||
| Pressure Range: | 0~600/700)bar | ||
|---|---|---|---|
Product Description
Title goes here.

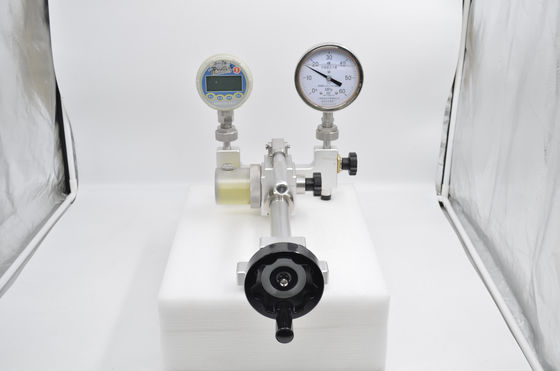

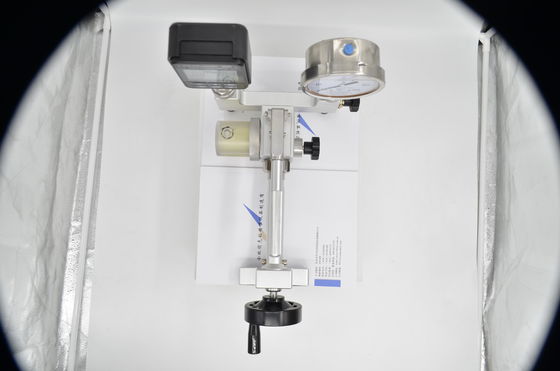

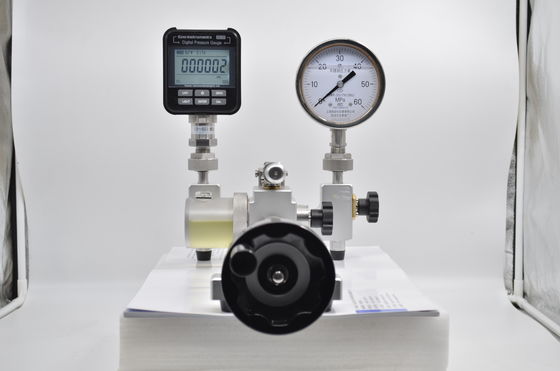

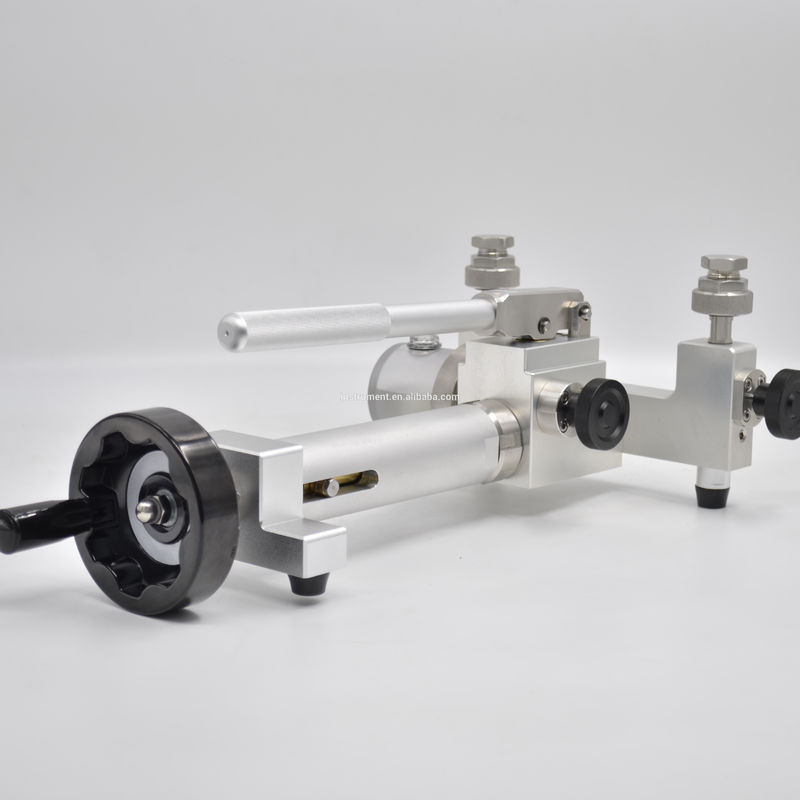

HS 705 hydraulic pressure comparison pump adopts advanced stainless steel and aluminum alloy special precess, compact dimesion,light weight.It is portable structure and designed to generate pressure range up to 700bar.The screw pump design makes the high pressure operation more easy and save labor,the F-adjust valve adjust the exact pressure value.A detachable oil cup is easy to clean and maintenance,user could check the work medium timely from the transparent oil cover.Two standard pressure outputs are easy to connect gauges under test without using the wrenches.It widely calibrates pressure instruments in field and laboratory.
Generated pressure range:(0-600/700)bar
Working media:25# transformer oil,
Adjust resolution:1mbar
Material:
Body:Stainless Steel/Aluminium
Seals:Buna-N
Output interface connection:M20x1.5Female
Weight:5.2kg
Dimensions:420Lx240Wx150H(mm)
