Body:Stainless Steel/Aluminium Output part:stainless steel Seals:Buna-N Output interface connection:M20×1.5Female Weight:23kg Dimensions:570L×490W×195H (mm) Package:Plywood case
 |
Professional Hydraulic Hand Pump for Effortless Pressure Comparison Test 0-1000bar
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | SINO INSTURMENTS |
| Model Number: | HS728 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1,000.00 - $3,000.00/pieces |
|
Detail Information |
|||
| Warranty: | 1 Year | Power: | Hydraulic |
|---|---|---|---|
Product Description

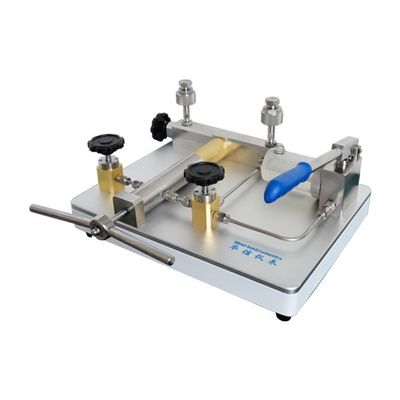

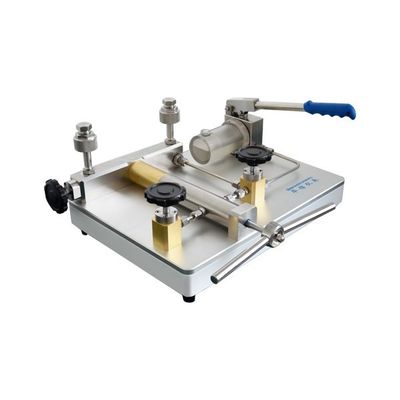

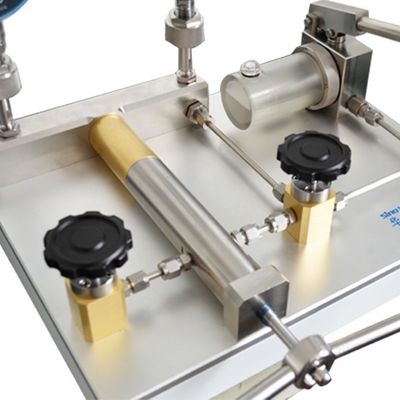

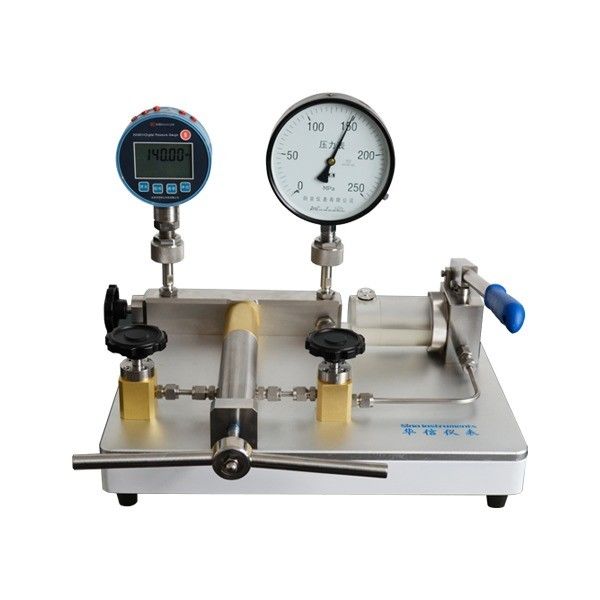

HS728 Hydraulic High Pressure Comparison Pump is generated pressure up to 1000bar or 1200bar or 1400bar to calibrate high pressure instruments against a standard gauge. It is fitted with hand pump which could quickly pressurize to the whole system; perfectly integrated operation of hand pump& Booster helps user to accomplish high pressure points calibration, closing Shut off valve during pre- pressurizing 250bar in order to get high pressure ranges. The lead screw adjusts the exact pressure values in the process. A specially designed transparent oil cup marks the balance of working medium. It widely calibrates pressure gauges in the laboratory.
Product name | pressure Compaison pump |
Model | HS728 |
range | (0-1000/1200) bar |
working media | 25＃transformers oil |
Adjust resolution | 1mbar |
weight | 18kg |
Dimension | 440mm×380mm×230mm |
Material | Stainless Steel/Aluminium |
Direction for use
Generated pressure range:(0~1000)bar; (0~1200)bar; (0~1400)bar Working media:25#Transformer oil Adjust resolution: 10mbar Material:
Description of application effect
Functions
HS728 provides pressure measurement for calibrating pressure (differential pressure) transmitter, precision pressure gauge,
general pressure gauge and other pressure instruments.
It can be extensively used in power, chemical, petrol, metallurgy, metering, military industry, etc.
Characteristics
It has secondary oil filter and a settler. The waste oil can be filtered by this duplex tank.
Stainless steel and easy operation

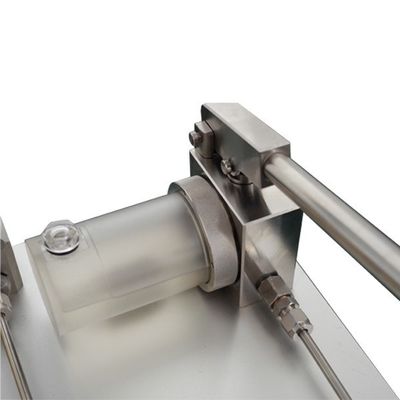

The transparent oil cup could marks the balance of working medium
HS728 provides pressure measurement for calibrating pressure (differential pressure) transmitter, precision pressure gauge,
general pressure gauge and other pressure instruments.
It can be extensively used in power, chemical, petrol, metallurgy, metering, military industry, etc.
Characteristics
It has secondary oil filter and a settler. The waste oil can be filtered by this duplex tank.
Stainless steel and easy operation
The transparent oil cup could marks the balance of working medium
