Distilled Water Working Media High Pressure Hydraulic Pressure Calibration Pump with 1400bar
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | Sino Instruments |
| Model Number: | HS728 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $2,000.00 - $4,000.00/pieces |
| Packaging Details: | standard packing with carton package |
| Supply Ability: | 500 Piece/Pieces per Month HS728 2016 new style high pressure hydraullc pressure calibratio |
|
Detail Information |
|||
| Instrument Name: | HS728 High Pressure Hydraullc Pressure Calibration Pump With 1400bar | Pressure Range: | (0-700)bar |
|---|---|---|---|
| Working Media: | Distilled Water | Adjust Resolution: | 1mbar |
| Material: | Body:Stainless Steel/Aluminium | Color: | Blue |
| Output Interface Connection: | M20*1.5Female | Output: | Calibrate 2pcs Gauges Once |
| Weight: | 14.9Kg | Dimensions: | 430L*330W*170H (mm) |
| Port: | Any China Port | ||
Product Description

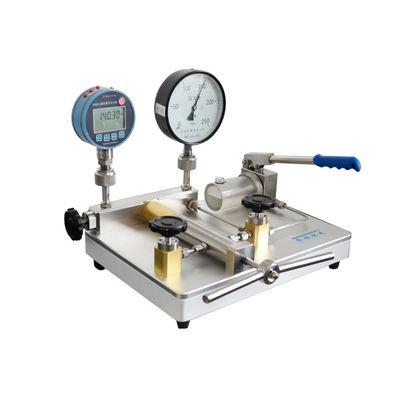

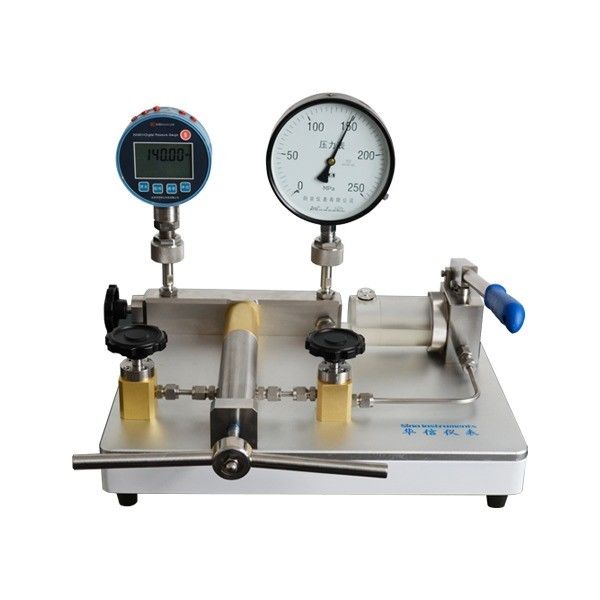

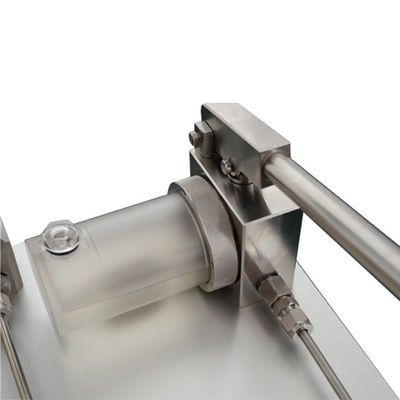

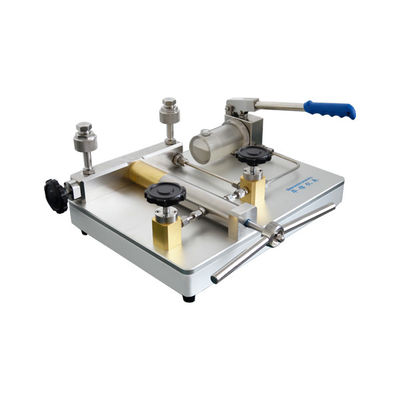

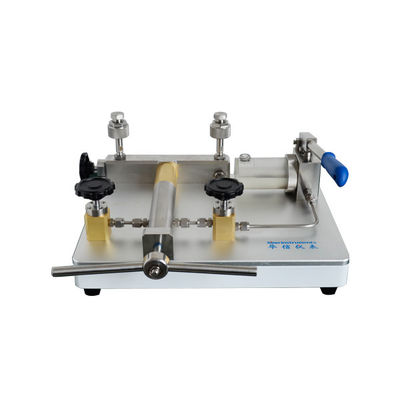

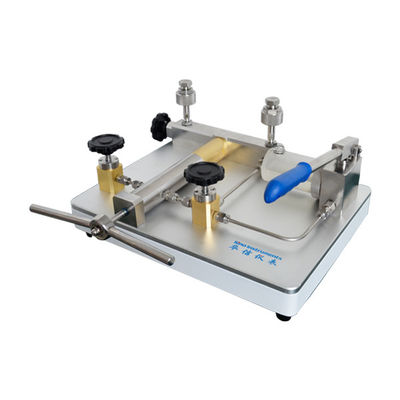

HS728 2016 new style high pressure hydraullc pressure calibration pump with 1400bar consit of hand pump, lead screw, shut-off valve, relieve valve , transparent water cup and output interface.
Characteristics
1.adopts advanced stainless steel,bench-top structure
2.detachable Oil cup is easy to clean and maintenance
3.Fast connection, quick pressurizing and easy operation
4.It is used for calibrating all kinds of oil gauges
HS728 Hydraulic Pressure Comparison Pump adopts advanced stainless steel, with bench-top structure and designed to generate pressure range up to 1400bar. The sliding block structure for screw pump design makes the high pressure operation more easy and save labor, and saves operation space without screw outside. That special F-adjust valve adjusts the exact pressure value and calibrate 2.5bar pressure instruments .The detachable Oil cup is easy to clean and maintenance, checking work medium timely from outside. 2pcs output with quick coupling makes it calibrated pressure instruments together. It widely calibrates pressure instrument in the laboratory.
| HS728 2016 new style high pressure hydraullc pressure calibration pump with 1400bar | |
| pressure range | (0~1400) bar |
| working media | 25#transformer oil |
| weight | 18kg |
| Output Interface | M20×1.5Female |
| Dimensions | 440L*380W*230H (mm) |
| Material | Body:Stainless Steel/Aluminium Seals:Buna-N |
| Adjust resolution | 0.01mbar |
packaging:
- Standard export package: each unit has individual cartonbox and all boxes are packed in standard packages
- As the clients requirement
shipping
HUAXIN INSTRUMENT(BEIJING)CO.,LTD.
We provide you with a detector that meets your engineering requirements at an affordable price. Just tell us the dimensions and we'll do the rest!
Technical services
We have a specialized team of engineers with sophisticate knowledge and professional skills engaged in presale and after sale services.
Presale services
1) Provides technical and application consulting regarding to detectors 2) Assists customers to conduct detectors selection, force analysis, clearance configuration and reliability analysis. 3) Provides highly cost effective integrated solution to the customers based on onsite situation. 4) Provides non-standard detector design and development for some customers’ technical innovation.
After sale services
1) Provides training of detectors installation, services and maintenance
2) Provides onsite detectors installation guidance, detectors adjustment guidance and test guidance. 3) Assists customers to perform troubleshooting, and conduct detectors failure analysis with customers. 4) Periodical customer visits are carried out to get reasonable suggestions and requirements from customer back to the company.
