Professional L286*W198*H140 mm HS703 Lab Machine Pneumatic Pressure Gauge Calibrator
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | Sino Instruments |
| Model Number: | HS703 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $500.00 - $1,000.00/pieces |
| Packaging Details: | HS703 Lab Machine Pneumatic Pressure Gauge Calibrator <br>Standard export package: each unit has individual cartonbox and all boxes are packed in standard packages <br>Also as the clients requirement |
| Supply Ability: | 500 Piece/Pieces per Month HS703 Lab Machine Pneumatic Pressure Gauge Calibrator |
|
Detail Information |
|||
| Name: | HS703 Lab Machine Pneumatic Pressure Gauge Calibrator | Pressure Range: | (-0.95~40/60)bar |
|---|---|---|---|
| Working Media: | Air | Output Part Material: | Stainless Steel |
| MATERIAL: | Body:Stainless Steel | Adjust Resolution: | (0.1mbar) |
| Seals: | Buna-N | Connector: | M20X1.5Female |
| Weight: | 2.7KG | Dimension: | L286*W198*H140(mm) |
| Port: | Beijing Airport | ||
Product Description
Product Description

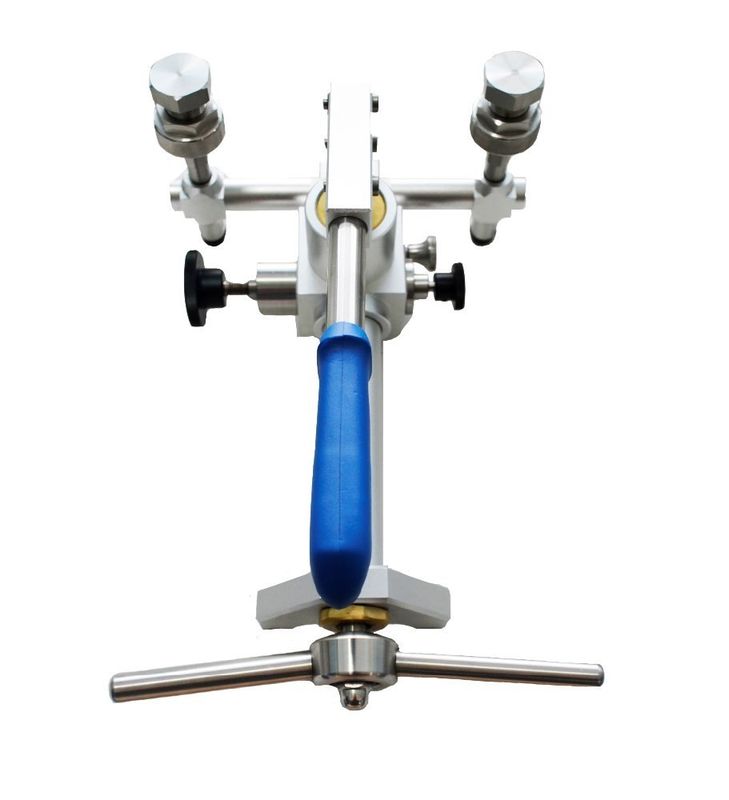

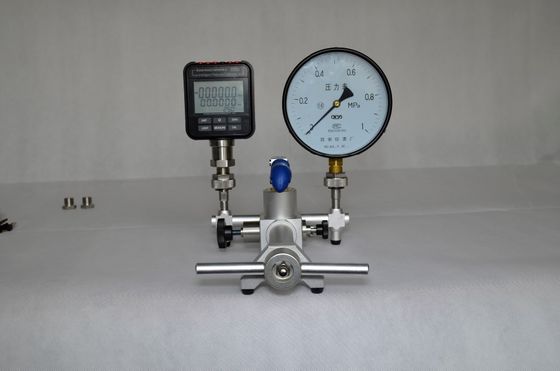

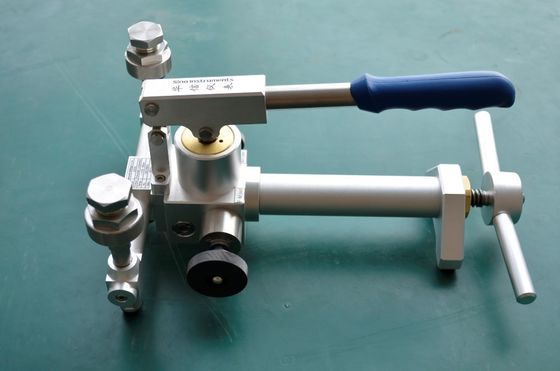

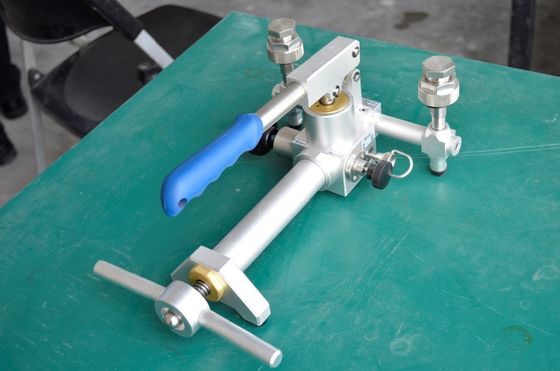

HS703 Lab Machine Pneumatic Pressure Gauge Calibrator is portable structure and designed to generate pressure from vacuum to 60bar. Built-in filter protects the pump from dirty and make maintenance easy and convenient. The F-adjust valve could accomplish 10Pa (0.1mbar) pressure resolution. Especially the lever lead screw design makes user operate in economize labor. the design of reverse valve makes the switch of vacuum and positive pressure more smooth. Two standard pressure outputs are easy to connect gauges under test without using the wrenches. It widely calibrates pressure instruments in field and laboratory.
Technical Specification
Generated pressure range: (-0.95~16/25)bar The model HS702
(-0.95~40/60)bar The model HS703
Working media: Air
Adjust resolution: 0.1mbar
Material: Body: Stainless steel /Aluminium
Seals:Buna-N
Output interface connection: M20×1.5Female
Weight:2.7kg
Dimensions:286L×198W×140H (mm)
Functions
HS703 Lab Machine Pneumatic Pressure Gauge Calibrator provides pressure measurement for calibrating pressure instruments in field and laboratory. It can be extensively used in power, chemical, petrol, metallurgy, metering, military industry, etc.
Characteristics
portable structure
Built-in filter protects the pump from dirty and make maintenance easy and convenient
user operate in economize labor
