HS705 700bar Portable Manual Hydraulic Pressure Test Pump for Accurate Readings
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | Sino Instruments |
| Model Number: | HS705 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $700.00 - $1,400.00/pieces |
| Packaging Details: | export standard package |
|
Detail Information |
|||
| Name: | HS705 Hydro Pressure Test Pump | Model: | HS705 |
|---|---|---|---|
| Pressure Range: | (0~700) Bar | Adjust Resolution: | 0.001bar |
| Working Medium: | Distilled Water | Weight: | 2.6kgs |
| Body: | Stainless Steel/Aluminium | Seals: | Buna-N |
| Output Interface: | M20*1.5 Female | Dimension: | 210mm*210mm*140mm |
Product Description

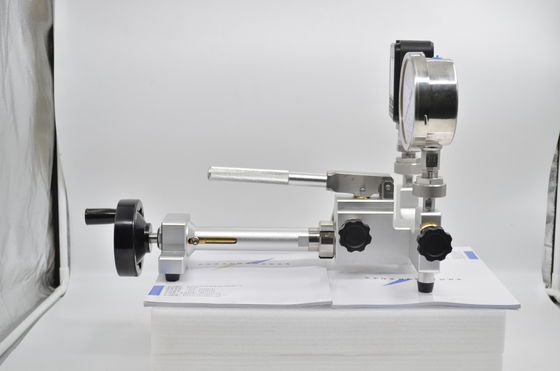

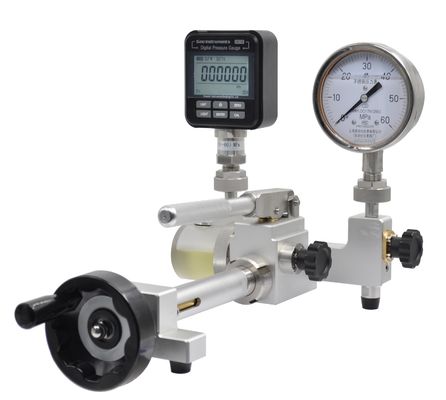

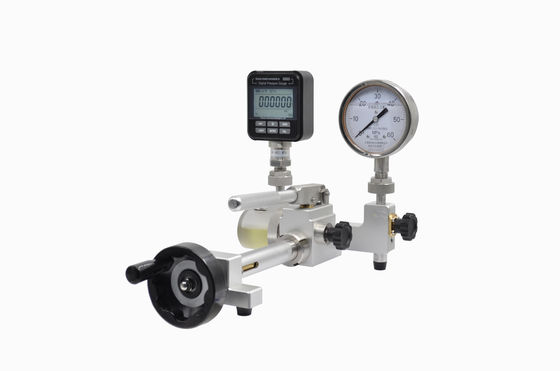

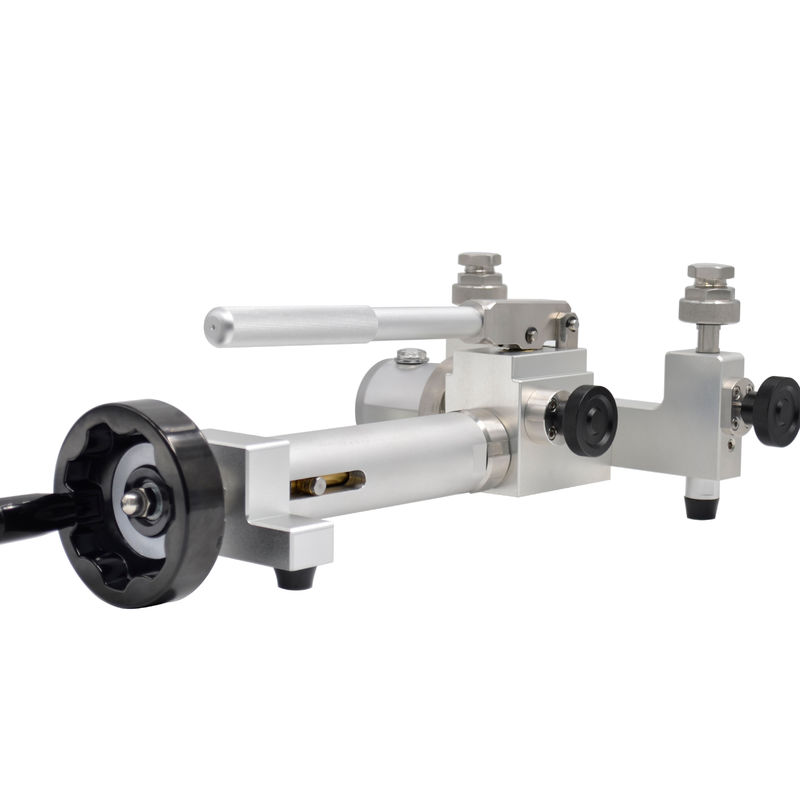

HS705 manual hydraulic pressure hand pump
HS705 manual hydraulic pressure hand pump adopts advanced stainless steel and lithium alloy special process, compact dimension, light weight. It is portable structure and designed to generate pressure range up to 700bar. The screw pump design makes the high pressure operation more easy and save labor, the F-adjust valve adjust the exact pressure value .A detachable oil cup is easy to clean and maintenance, user could check the work medium timely from the transparent oil cover. Two standard pressure outputs are easy to connect gauges under test without using the wrenches. It widely calibrates pressure instruments in field and laboratory.
HS705 manual hydraulic pressure hand pump Technical Specification
1. Pressure Range: (0~700) bar
2. Working Medium: 25 # transformal oil
3. Adjust resolution:0.1kPa
4. Material : Body:Stainless Steel/Aluminium
Seals:Buna-N
5. Output Interface: M20*1.5 Female
6. Weight:2.6kg
7. Dimension (L×W×H): 210mm×210mm×140mm
HS705 manual hydraulic pressure hand pump Functions
HS705 provides pressure for calibrating pressure gauges, such as pressure (different pressure) transducers, precision pressure gauges, general pressure gauges and other pressure gauges. It can be widely used in power, chemical, petrol, metallurgy, metering, military industry, etc.
