430L*330W*170H mm M20*1.5Female Hydraulic Pressure Calibrator for Precise Calibration
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | SINO INSTRUMENTS |
| Model Number: | HS728 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1,000.00 - $3,000.00/pieces |
| Packaging Details: | standard package |
| Supply Ability: | 300 Set/Sets per Quarter |
|
Detail Information |
|||
| Pressure: | 0~1200bar | Medium: | Transformer Oil |
|---|---|---|---|
| Output: | M20*1.5Female | Weight: | 14.9kg |
| Adjust Resolution: | 0.1kPa | Material: | Body:Stainless Steel/Aluminium |
| Dimensions: | 430L*330W*170H (mm) | Port: | Beijing Airport |
Product Description

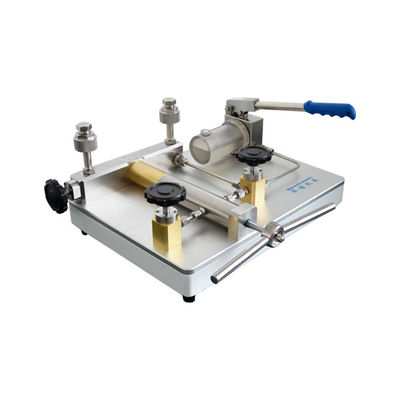

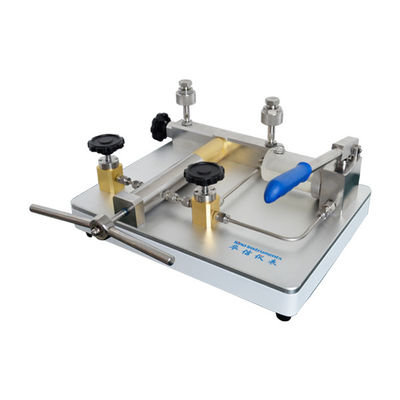

HS728 High quality Hydraulic Pressure calibrator
Product Description

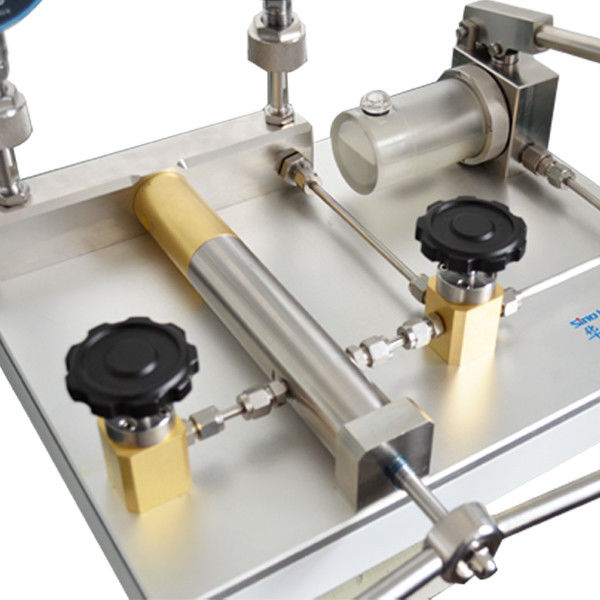

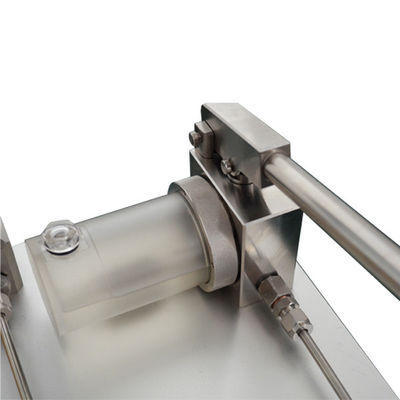

HS728 High quality Hydraulic Pressure calibrator consists of hand pump, lead screw, shut-off valve, relieve valve, transparent oil tank and output interface. It is a solid rugged structure which features its high sealing performance, stable and fast pressure generating, effort-saving and easy operation. it is an ideal substitute for the dead weight tester.
Functions
HS728 High quality Hydraulic Pressure calibrator provides pressure for calibrating pressure gauges, such as pressure (different pressure) transmitters, precision pressure gauges, general pressure gauges and other pressure instruments. It can be widely used in power,chemical,metallurgy, petrol, metering, military industry etc.
Characteristics
- Stainless steel, hermetic technology in the military industry.
- Fast connection, quick pressurizing and convenient cleaning
- It is used for calibrating all kinds of oil gauges
- It has secondary oil filter and a settler. The waste oil can be filtered by this duplex oil tank.
Technical Specification
| Pressure range | (0~1200)bar |
| Stability | 0.05%F.S |
| Working medium | 25# Transformer oil |
| Output interface | M20*1.5 Female |
| Dimension(L×W×H) | 450mm*420mm*200mm |
| Weight | 14.9kg |
| company | HUAXIN INSTRUMENT(BEIJING)CO.,LTD. |
| web | www.sino-instruments.com |
| Add | Yilan Building,Huoju St,Changping Dist, Beijing,102200,China |
| Tel | 86-10-62392087 |
| Fax | 86-10-62345183 |
