380mm*380mm*200mm Dimensions Pneumatic Testing Bench for Gauge Calibration
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | sino instruments |
| Model Number: | HS721 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $900.00 - $1,800.00/sets |
| Packaging Details: | export package |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Name: | Pneumatic Testing Bench | Pressure Range: | (-0.95~ 60/140) Bar |
|---|---|---|---|
| Working Media: | Air | Output Interface: | M20*1.5 Female |
| Dimensions (L*W*H ): | 380mm*380mm*200mm | Weight: | 14.8Kg |
| Warranty: | 1 Year | Material: | SS304 |
| Port: | Beijing | ||
Product Description
pneumatic testing bench
Product Description

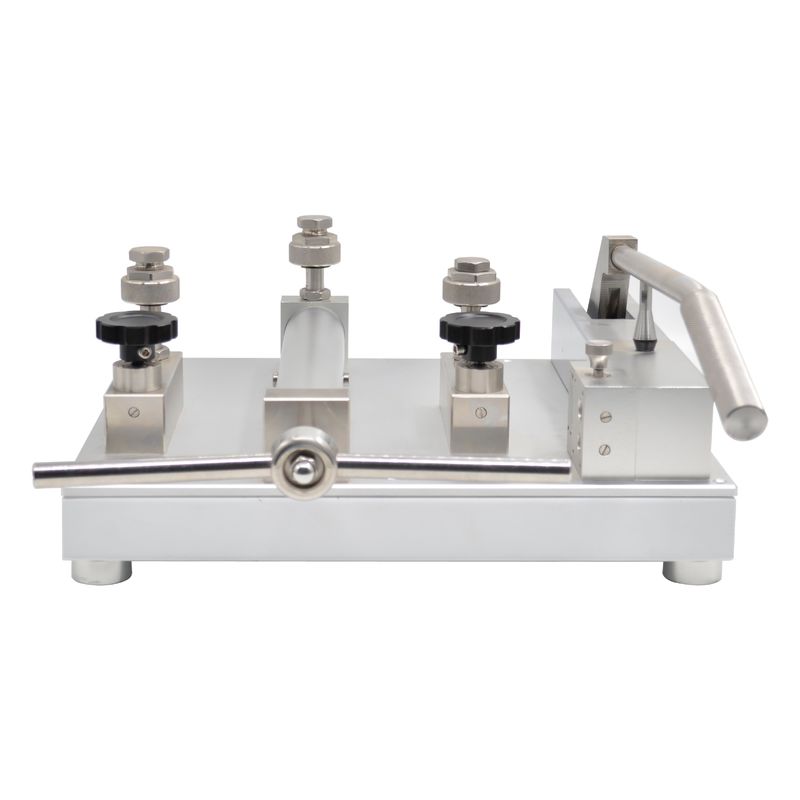

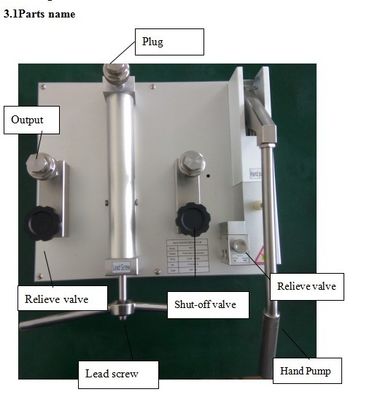

HS721 pneumatic testing bench consists of hand pump, lead screw, reverse valve, relieve valve and output interface. It features high sealing, stable pressure generating and simple operation. It is suitable in the laboratory. It could supply the pressure for calibrating pressure (differential pressure) transmitter, precision pressure gauge, general pressure gauge and other pressure instruments.
Pneumatic testing bench Characteristics
-Food grade stainless steel and hermetic technology in the military industry
-High precision, stable pressure generating, easy operation.
-Wide pressurized range, high vacuum degree
-High reliability, Wide micro-adjusting range
Technical Specification
Pressure Range | (-0.95~ 60/140) bar |
Working Media | Air |

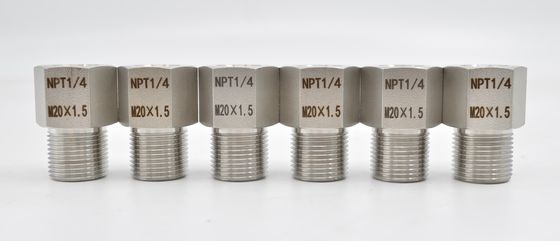

Output Interface | M20*1.5 Female |
Dimensions (L*W*H ) | 380mm*380mm*200mm |
Weight | 14.8kg |
