25kg Bench-top Hydraulic Pressure Pump HS706 with Pressure Range 0-2500 bar
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | Sino Instruments |
| Model Number: | HS706 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $3,000.00/pieces |
| Packaging Details: | standard package |
|
Detail Information |
|||
| Name: | Bench-top Factory Supply Hydraulic Test Pump For Lab HS706 | Pressure Range: | (0~2500)bar |
|---|---|---|---|
| Working Media: | 25#Transformer Oil | Output Interface: | M20*1.5Female |
| Weight: | 25kg | Material: | Body:Stainless Steel/Aluminium Seals:Buna-N |
| Dimensions: | 570L*490W*195H (mm) | Adjust Resolution: | 1kPa (10mbar) |
| Package: | Plywood Case | Usage: | Pressure Gauge Calibration |
Product Description

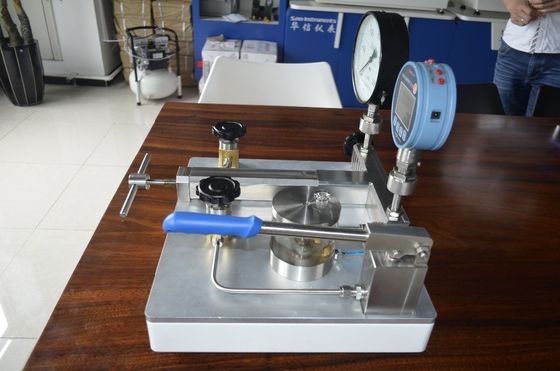

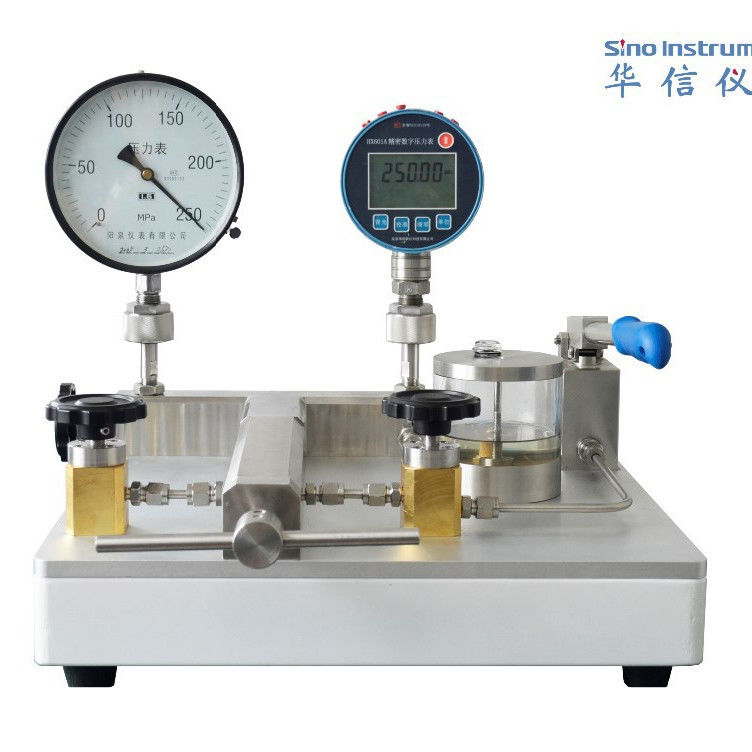

Bench-top hydraulic pressure pump HS706

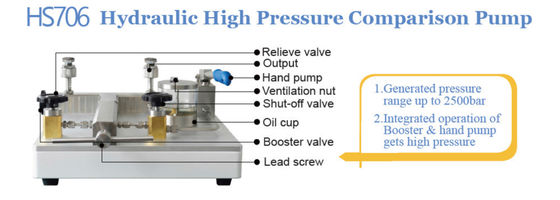

Bench-top hydraulic pressure pump HS706 calibrate high pressure instruments against a standard gauge. It is fitted with hand pump which could quickly pressurize to the whole system; perfectly integrated operation of hand pump& Booster helps user to accomplish high pressure points calibration, closing Shut off valve during pre- pressurizing 250bar in order to get high pressure ranges. The lead screw adjusts the exact pressure values in the process. A specially designed transparent oil cup marks the balance of working medium. It widely calibrates pressure gauges in the laboratory.
| pressure range | (0~2500) bar |
| working media | 25#transformer oil |
| weight | 25kg |
| Output Interface | M20×1.5Female |
| Dimensions | 570L*490W*195H (mm) |
| Material | Body:Stainless Steel/Aluminium Seals:Buna-N |
| Adjust resolution | 10mbar |
| package | Plywood case |
Functions
HS706 provides pressure measurement for calibrating pressure (differential pressure) transmitter, precision pressure gauge, general pressure gauge and other pressure instruments. It can be extensively used in power, chemical, petrol, metallurgy, metering, military industry, etc.
Caracteristics
1.It has secondary oil filter and a settler. The waste oil can be filtered by this duplex tank.
2.Stainless steel and easy operation
3.The transparent oil cup could marks the balance of working medium
packaging:
- Standard export package: each unit has individual strong plywood case
- As the clients requirement
shipping:
By TNT,FEDEX,DHL,UPS,EMS
air or sea transportation
