M20X1.5 Connector HS703 Pneumatic Type Pressure Calibration Pump with 60bar Pressure
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | SINO INTSTRUMENTS |
| Model Number: | HS703 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $500.00 - $1,000.00/pieces |
| Packaging Details: | standard package |
| Supply Ability: | 300 Piece/Pieces per Month HS703 pneumatic type pressure calibration pump |
|
Detail Information |
|||
| Name: | HS703 Pneumatic Type Pressure Calibration Pump | Pressure Range: | (-0.95~ 60) Bar |
|---|---|---|---|
| Type: | Pneumatic | Working Place: | Laboratory&Field |
| Medium: | Air | Connector: | M20X1.5 |
| WEIGHT: | 2.6KG | Size: | 286L*198W*140H (mm) |
| Adjust Resolution: | 0.1mbar | Material: | Stainless Steel /Aluminium |
| Port: | Beijing Port | ||
Product Description

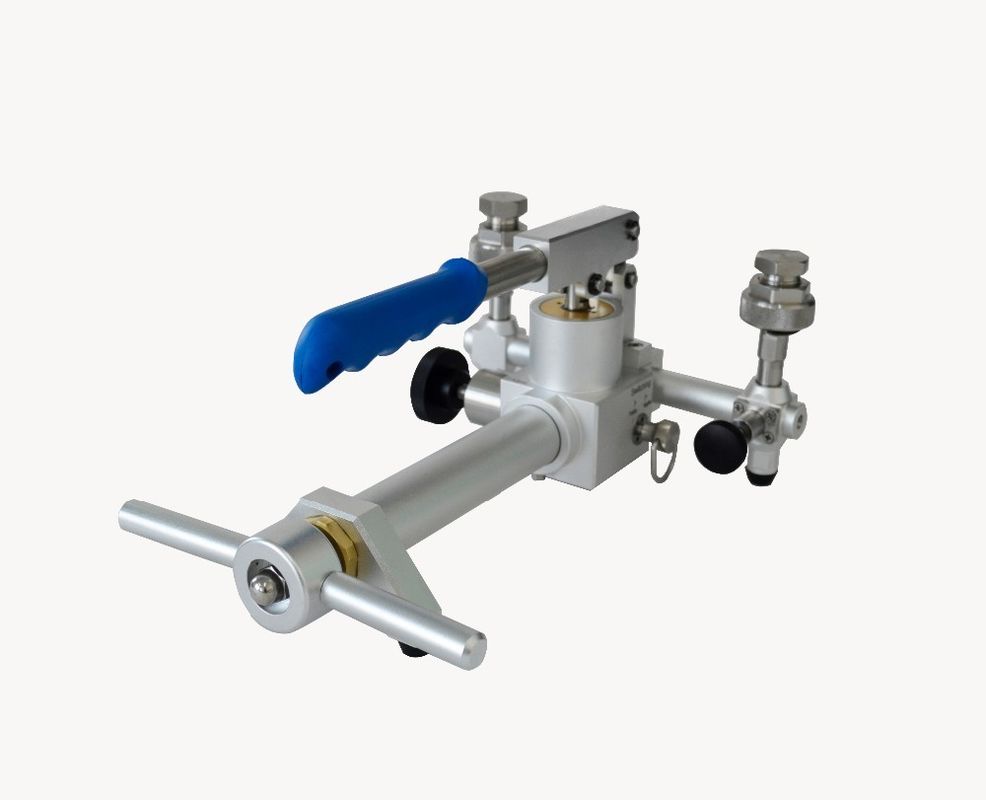

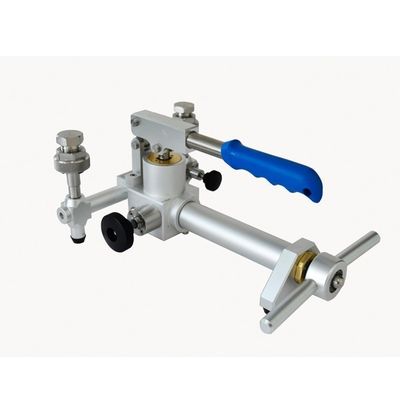

HS703 pneumatic type pressure calibration pump
Description
HS703 pneumatic type pressure calibration pump is made up of lead screw; relieve valve, reversing valve, and output interface.
Functions

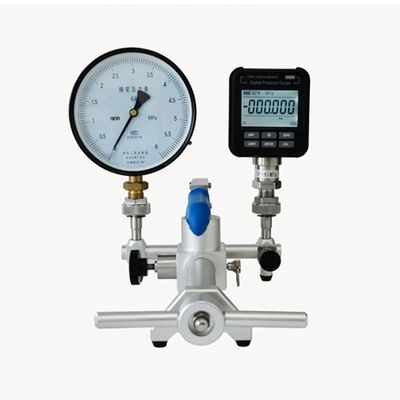

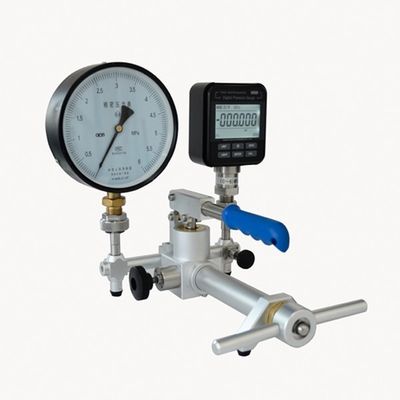

HS703 pneumatic type pressure calibration pump can supply pressure for calibrating pressure gauges, Such as pressure (differential pressure) transducers, precision pressure gauges, general pressure gauges and other pressure gauge.
HS703 pneumatic type pressure calibration pump is portable structure and designed to generate pressure from vacuum to 60bar. Built-in filter protects the pump from dirty and make maintenance easy and convenient. The F-adjust valve could accomplish 10Pa (0.1mbar) pressure resolution. Especially the lever lead screw design makes user operate in economize labor. the design of reverse valve makes the switch of vacuum and positive pressure more smooth. Two standard pressure outputs are easy to connect gauges under test without using the wrenches. It widely calibrates pressure instruments in field and laboratory.
Technical Specification
Pressure range | (-0.95~ 60) bar |
Accuracy | 0.05% F.S |
Pressure-transmitting media | air |
Output interface | M20×1.5 Female |
Overall Dimensions | 325×210×170mm |
Weight | 2.6Kg |
