High Pressure Hand Pump for Working Media 25 Transformer Oil Pressure Range 0-2500 Bar
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | Sino instrument |
| Model Number: | HS706 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $2,000.00 - $4,000.00/pieces |
| Packaging Details: | Plywood case with foam |
| Supply Ability: | 100 Piece/Pieces per Month Digital fuel gauge meter |
|
Detail Information |
|||
| Keywords: | Transformer Oil Pump | Working Media: | 25# Transformer Oil |
|---|---|---|---|
| Seals:: | Buna-N | Output Interface Connection: | M20X1.5F, 1/2'' NPT F, 1/4'' NPT F |
| Pressure Range: | 0-2500 Bar | Weight: | 20kgs |
| Port: | Beijing, Tianjin, Shanghai | ||
Product Description

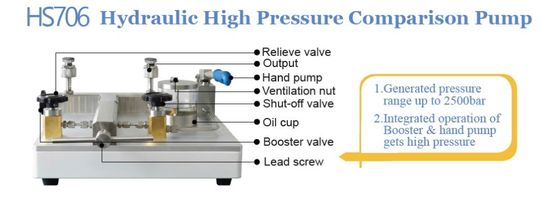

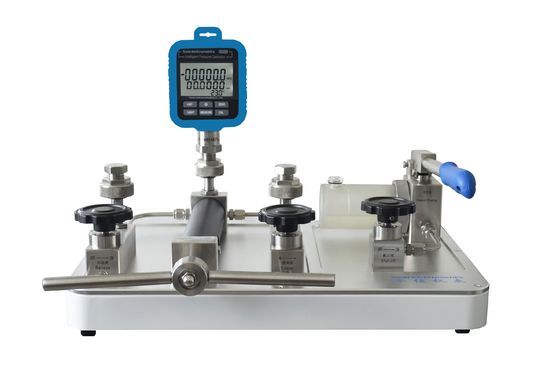

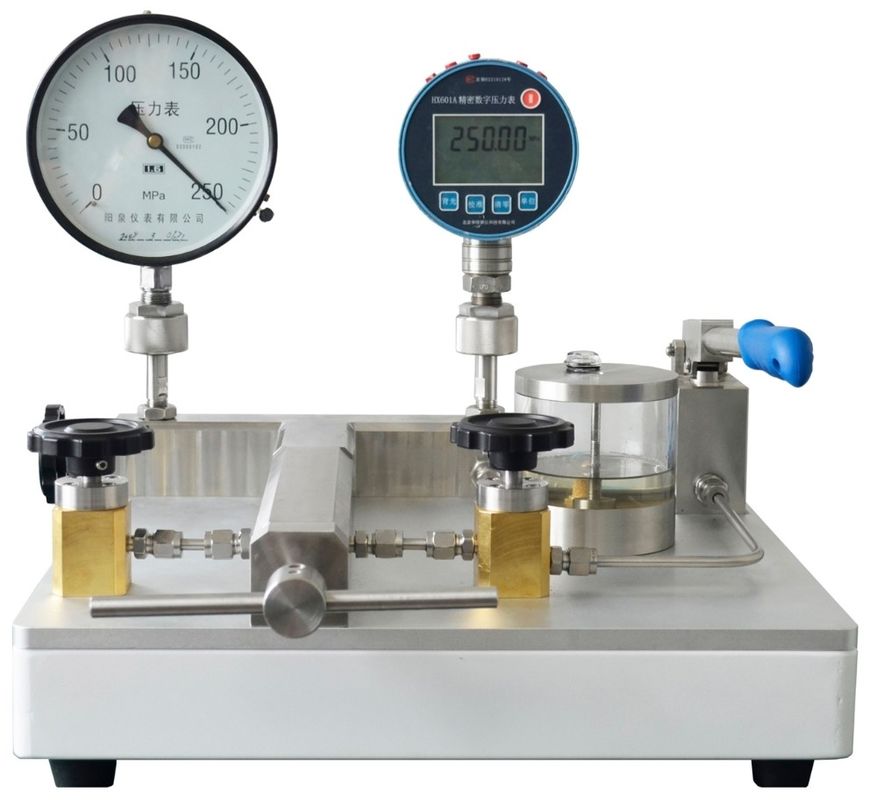

HS706 Hydraulic High Pressure source is generated pressure up to 2500bar to calibrate high pressure instruments against a standard gauge. It is fitted with hand pump which could quickly pressurize to the whole system; perfectly integrated operation of hand pump& Booster helps user to accomplish high pressure points calibration, closing Shut off valve during pre- pressurizing 250bar in order to get high pressure ranges. The lead screw adjusts the exact pressure values in the process. A specially designed transparent oil cup marks the balance of working medium. It widely calibrates pressure gauges in the laboratory.
HS706 Hydraulic High Pressure source Technology Specification
1. Generated pressure range:(0~1600)bar ,(0-2500)bar
2. Working media:25#Transformer oil
3. Adjust resolution: 1kPa (10mbar)
4. Material: Body:Stainless Steel/Aluminium
Output part:stainless steel
Seals:Buna-N
5. Output interface connection:M20×1.5Female
6. Weight:25kg
7. Dimensions:570L×490W×195H (mm)
8. Package:Plywood case
HS706 Hydraulic High Pressure source Functions
HS706 provides pressure measurement for calibrating pressure (differential pressure) transmitter, precision pressure gauge, general pressure gauge and other pressure instruments.
It can be extensively used in power, chemical, petrol, metallurgy, metering, military industry, etc.
HS706 Hydraulic High Pressure Comparison Pump Characteristics
1. It has secondary oil filter and a settler. The waste oil can be filtered by this duplex tank.
2. Stainless steel and easy operation
3. The transparent oil cup could marks the balance of working medium
