Customized Support OEM HS728 1400bar High Pressure Gauge Calibrator for Stainless Steel
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | SINO INSTRUMENTS |
| Model Number: | HS728 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1,500.00 - $2,500.00/pieces |
| Packaging Details: | standard package <br>530*420*260(mm) |
| Supply Ability: | 500 Piece/Pieces per Quarter HS728 1400bar high pressure gauge calibrator |
|
Detail Information |
|||
| Customized Support: | OEM | Item Name: | HS728 1400bar High Pressure Gauge Calibrator |
|---|---|---|---|
| Pressure Range: | 1400bar | Workin Medium: | Oil |
| Output: | 2 Pcs | Accuracy: | ±0.05%F.S |
| Weight: | 18kg | Material: | Stainless Steel/Aluminium |
| Adjust Resolution: | 0.1kPa | Output: | M20*1.5Female |
| Type: | Hydraulic | Port: | Beijing Port |
Product Description

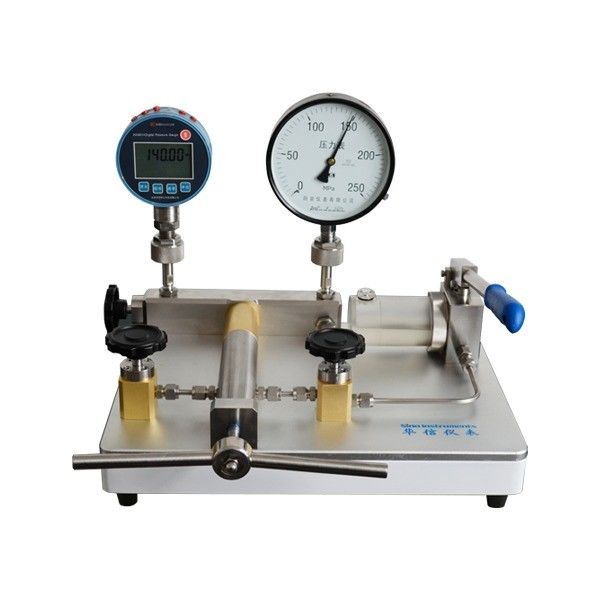

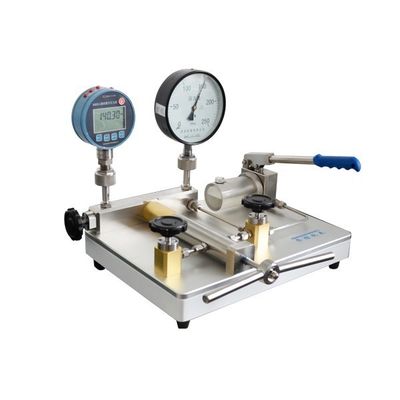

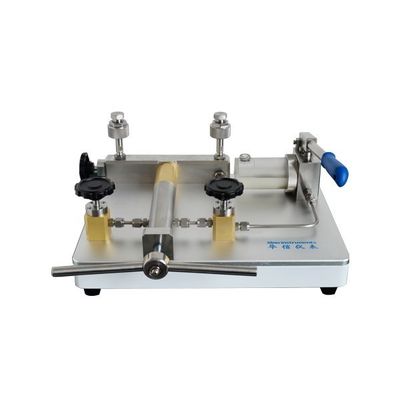

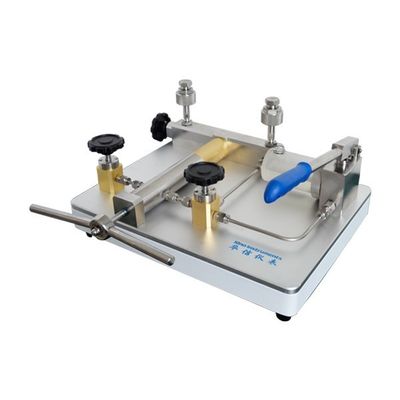

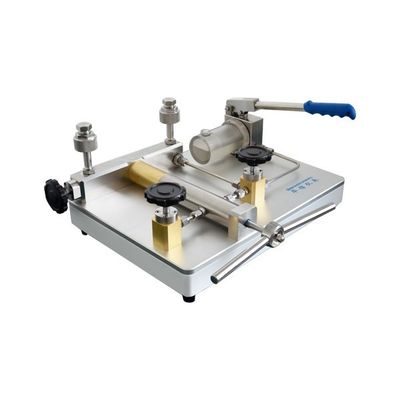

HS728 1400bar high pressure gauge calibrator

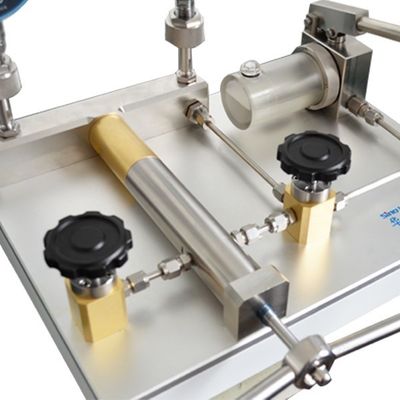

consists of hand pump, lead screw, shut-off valve, relieve valve, transparent oil tank and output interface. It is a solid rugged structure which features its high sealing performance, stable and fast pressure rising ,effort-saving and easy operation. it is an ideal substitute for the DWT.
Characteristics 1.adopts advanced stainless steel,bench-top structure2. detachable Oil cup is easy to clean and maintenance 3. Fast connection, quick pressurizing and easy operation 4. It is used for calibrating all kinds of oil gauges
Technical Specification
| HS728 1400bar high pressure gauge calibrator | |
| pressure range | (0~1400) bar |
| working media | Oil |
| weight | 18kg |
| Output Interface | M20×1.5Female |
| Dimensions | 430L*330W*170H (mm) |
| Material | Body:Stainless Steel/Aluminium Seals:Buna-N |
| Adjust resolution | 0.01mbar |
HUAXIN INSTRUMENT (BEIJING) CO., LTD. is a highly reputed organization dedicated to manufacturing high-quality pressure and temperature calibrator products. During considerable development, our products have already been widely used in the industries of power, chemical, petrol, metallurgy, metering, etc.
With the tenet of "Quality is Priority and The Customer is King", HUAXIN employs experienced technicians and professional sales engineers in calibration and metering field. Based on our excellent performance, we have joined in setting industry standard for product safety, operability, durability and reliability in China. Besides, our company has been accredited to ISO9001:2008 international quality management system certification since its standardized operation. Furthermore, CE approval is also smoothly passed.
HUAXIN has already achieved good accomplishment in China and has expanded to the world market depending on its constantly reliable performance. In addition, competitive price, swift delivery and good service play an important role in our company's success. Our worldwide representatives and sales network always help customers enjoy more professional calibration products and solutions.
We sincerely hope to work with worldwide customers and create a better future together
