Air Media and 2.7kg Weight HS703 Pneumatic Comparison Test Pump for Accurate Results
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | SINO INTSTRUMENTS |
| Model Number: | HS703 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $500.00 - $1,500.00/units |
| Packaging Details: | standard package |
| Supply Ability: | 300 Piece/Pieces per Month |
|
Detail Information |
|||
| Pressure Range: | (-0.98~ 60) Bar | Stability: | +/-0.05% F.S |
|---|---|---|---|
| Weight: | 2.7kg | Adjust Resolution: | 10Pa(0.1mbar) |
| Material: | Body: Stainless Steel /Aluminium | Dimensions: | 286L*198W*140H (mm) |
| Working Media: | Air | Port: | Beijing |
Product Description
HS703 pneumatic comparison test pump china
Description

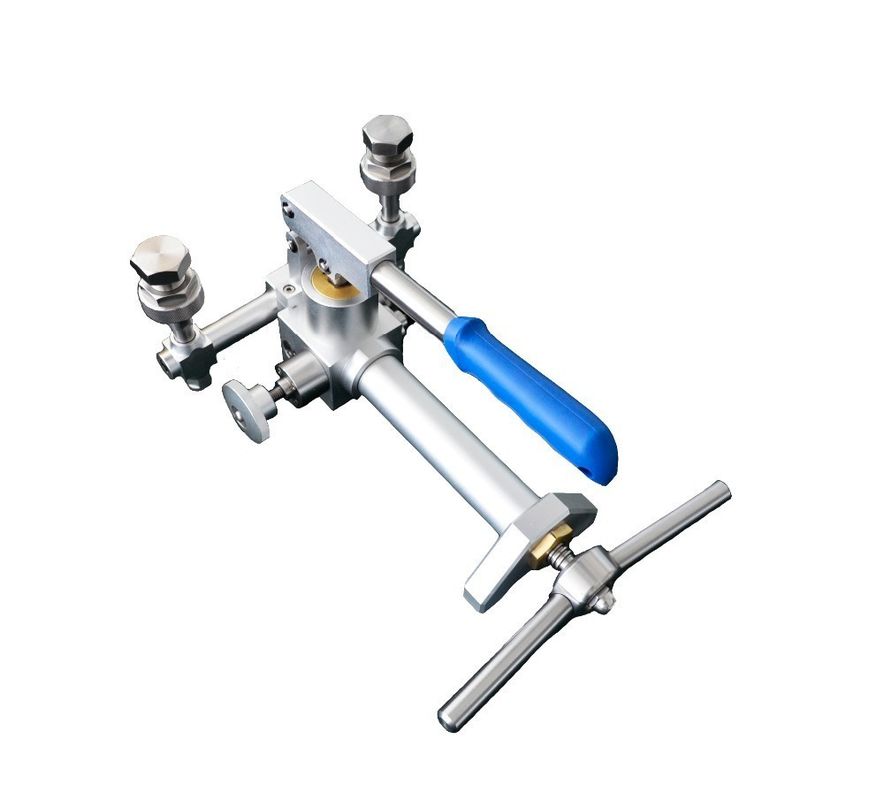

HS703 hand calibration pressure pump is made up of lead screw; relieve valve, reversing valve, and output interface.
Functions

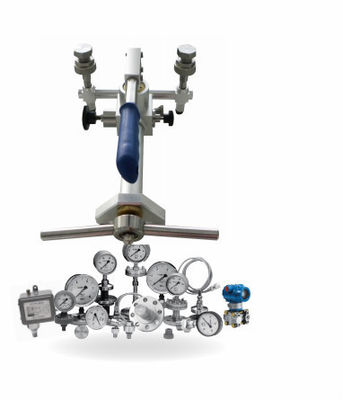

HS703 hand calibration pressure pump can supply pressure for calibrating pressure gauges, Such as pressure (differential pressure) transducers, precision pressure gauges, general pressure gauges and other pressure gauge.
HS703 hand calibration pressure pump is portable structure and designed to generate pressure from vacuum to 60bar. Built-in filter protects the pump from dirty and make maintenance easy and convenient. The F-adjust valve could accomplish 10Pa (0.1mbar) pressure resolution. Especially the lever lead screw design makes user operate in economize labor. the design of reverse valve makes the switch of vacuum and positive pressure more smooth. Two standard pressure outputs are easy to connect gauges under test without using the wrenches. It widely calibrates pressure instruments in field and laboratory.
Technical Specification
| Pressure range | (-0.95~ 60) bar |
| Accuracy | 0.05% F.S |
| Pressure-transmitting media | air |
| Output interface | M20×1.5 Female |
| Overall Dimensions | 325×210×170mm |
| Weight | 2.6Kg |
