Stainless Steel Output Part HS706 Hydraulic Pressure Comparator for Lab Equipment
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | Sino Instruments |
| Model Number: | HS706 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $2,000.00 - $4,000.00/pieces |
| Packaging Details: | HS706 Lab Equipment Pressure Gauge Calibration Hydraulic Pressure Comparator <br>Standard export package: each unit has individual cartonbox and all boxes are packed in standard packages <br>Also as the clients requirement |
| Supply Ability: | 500 Piece/Pieces per Year HS706 Hydraulic Pressure Comparator |
|
Detail Information |
|||
| Customized Support: | OEM | Name: | HS706 Hydraulic Pressure Comparator |
|---|---|---|---|
| Pressure Range: | (0~1600/2500)bar | Working Media: | 25#transformer Oil |
| Output Part Material: | Stainless Steel | MATERIAL: | Body:Stainless Steel |
| Adjust Resolution: | (10mbar) | Seals: | Buna-N |
| Connector: | M20X1.5Female | Weight: | 25KG |
| Dimension: | L570*W490*H195(mm) | Port: | Beijing Airport |
Product Description
Product Description

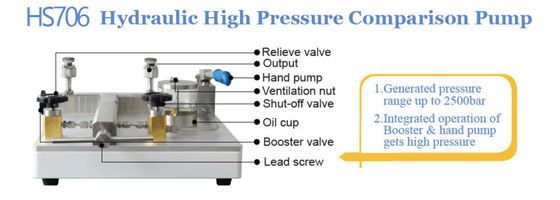

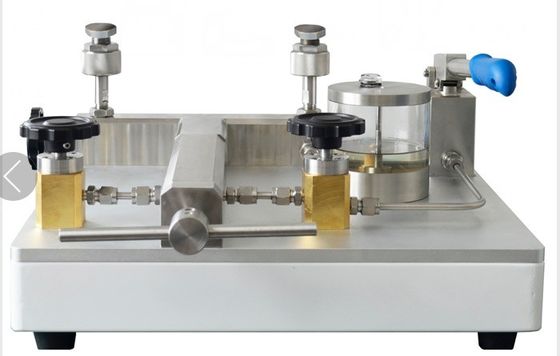

HS706 Lab Equipment Pressure Gauge Calibration Hydraulic Pressure Comparator is generated pressure up to 2500bar to calibrate high pressure instruments against a standard gauge. It is fitted with hand pump which could quickly pressurize to the whole system; perfectly integrated operation of hand pump& Booster helps user to accomplish high pressure points calibration, closing Shut off valve during pre- pressurizing 250bar in order to get high pressure ranges. The lead screw adjusts the exact pressure values in the process. A specially designed transparent oil cup marks the balance of working medium. It widely calibrates pressure gauges in the laboratory.
Technology Specification
Generated pressure range:(0~1600)bar; (0~2500)bar
Working media:25#Transformer oil
Adjust resolution: 10mbar
Material: Body:Stainless Steel/Aluminium
Output part:stainless steel
Seals:Buna-N
Output interface connection:M20×1.5Female
Weight:25kg
Dimensions:570L×490W×195H (mm)
Package:Plywood case
Functions

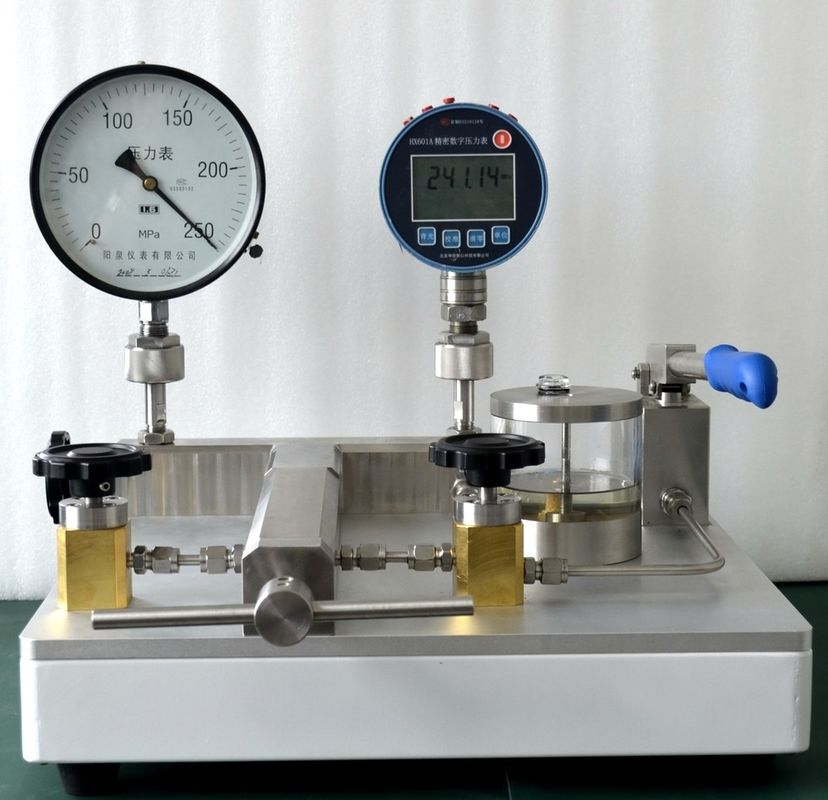

HS706 Lab Equipment Pressure Gauge Calibration Hydraulic Pressure Comparator provides pressure measurement for calibrating pressure (differential pressure) transmitter, precision pressure gauge, general pressure gauge and other pressure instruments.
It can be extensively used in power, chemical, petrol, metallurgy, metering, military industry, etc.
Characteristics
It has secondary oil filter and a settler. The waste oil can be filtered by this duplex tank.
Stainless steel and easy operation
The transparent oil cup could marks the balance of working medium
