Hand Held Pressure Test Pump HS703 and Lightweight 2.7kgs for Easy Connection 1/4'NPT
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | Sino instruments |
| Model Number: | HS703 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $900.00/pieces 1-9 pieces |
| Packaging Details: | carton, 1pc/package |
|
Detail Information |
|||
| Generate Pressure Range: | (-0.95~40/60)bar | Resolution: | 0.1mbar |
|---|---|---|---|
| Work Medium: | Air | Outputs: | 2pcs |
| Connection: | 1/4'NPT, 1/2'NPT, 1/2 BSP | Usage: | Generate Pressure For Calibration |
| Pressure: | Low Pressure | Weight: | 2.7kgs |
Product Description
HS703 Hand held pressure test pump is portable structure and designed to generate pressure from vacuum to 60bar. Built-in filter protects the pump from dirty and make maintenance easy and convenient. The F-adjust valve could accomplish 10Pa (0.1mbar) pressure resolution. It widely calibrates pressure instruments in field and laboratory.

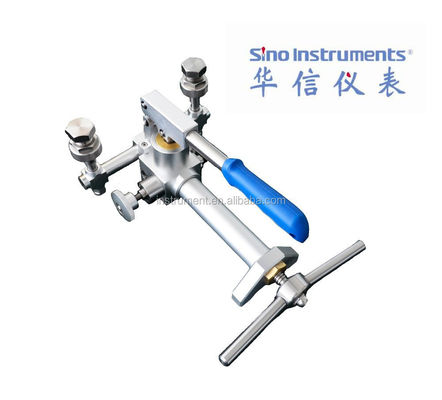

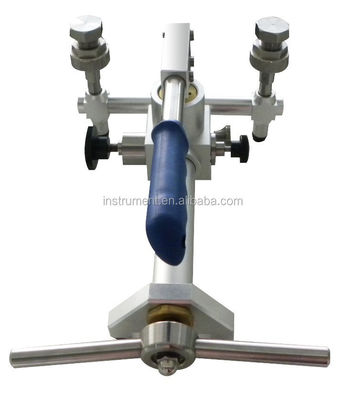

HS703 Hand held pressure test pump
1. generated pressure range: (-0.95~40)bar The model HS703
(-0.95~60)bar The model HS703-1
2. Working media: Air
3. Adjust resolution: 10Pa(0.1mbar)
4. Material: Body: Stainless steel /Aluminium
Seals:Buna-N
HS703 Hand held pressure test pump Functions
HS703 provides pressure measurement for calibrating pressure instruments in field and laboratory. It can be extensively used in power, chemical, petrol, metallurgy, metering, military industry, etc.
