Air Media HS702 Pneumatic Pressure Gauge Comparator with User-Friendly Design
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | Sino Instruments |
| Model Number: | HS702 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $500.00 - $1,000.00/pieces |
| Packaging Details: | instrument cases in the paper bags |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Model: | HS702 | Name: | Pneumatic Comparator |
|---|---|---|---|
| Pressure Range: | (-0.95~ 25) Bar | Work Media: | Air |
| Output Size: | M20*1.5 | Weight: | 2.7Kg |
| Working Media: | Air | Output Quantities: | 2 |
| Package: | A Safe Carton | Adjust: | 0.1mbar |
| Port: | Beijing,Tianjin,Shanghai And Other Port | ||
Product Description

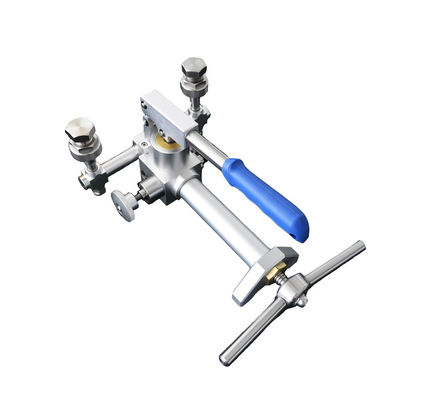

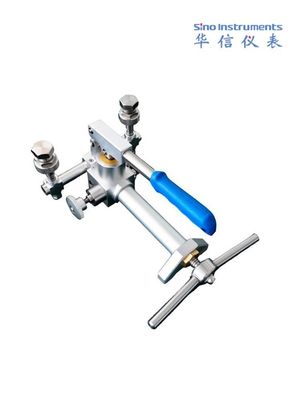

HS702 pneumatic pressure gauge comparator

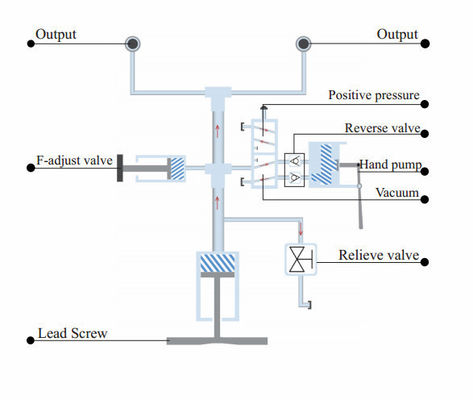

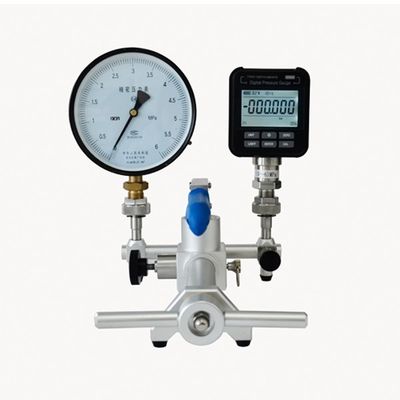

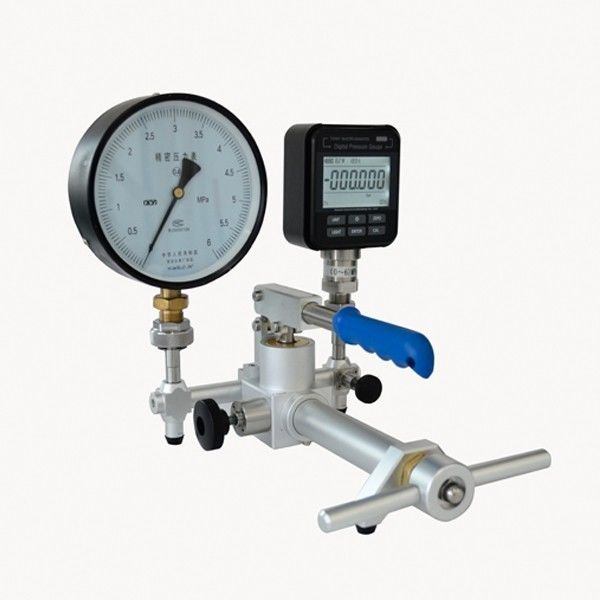

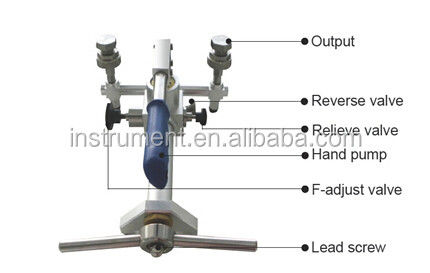

HS702 pneumatic pressure gauge comparator consists of hand pump, lead screw, reverse valve, relieve valve and output interface. It features high sealing, stable pressure generating and simple operation. It is suitable in the laboratory and fieldwork. It provides pressure measurement for calibrating pressure (differential pressure) transmitter, precision pressure gauge, general pressure gauge and other pressure instruments.
Functions
HS702 provides pressure measurement for calibrating pressure gauges such as pressure (different pressure) transducers, precision pressure gauges, general pressure gauges and other pressure gauges. It can be extensively used in power, chemical, petrol, metallurgy, metering, military industry, etc.
Characteristics
- Food grade stainless steel, hermetic technology in the military industry.
- Built-in air oil separator could discharge the greasy dirt of the inspected instrument
- High accuracy, simple operation, convenient maintenance.
- No external pipeline to avoid the changing influence from the outer environment.
Technical Specification
| Pressure Range | (-0.95~ 25) bar |
| Work Media | air |
| Output Interface | M20×1.5 |
| Overall Dimension (L×W×H) | 325mm×210mm×170mm |
| Weight | 2.7Kg |
