2.7kg HS703 Handheld Pneumatic Pressure Pump -0.95-60 bar Range Lightweight Portable
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | SINO INTSTRUMENTS |
| Model Number: | HS703 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $500.00 - $1,000.00/pieces |
| Packaging Details: | standard package |
| Supply Ability: | 60 Piece/Pieces per Month |
|
Detail Information |
|||
| Pressure Range: | (-0.95~ 60) Bar | Stability: | +/-0.05% F.S |
|---|---|---|---|
| Working Media: | Air | Weight: | 2.7kg |
| Dimensions: | 286L*198W*140H (mm) | Port: | Beijing |
Product Description

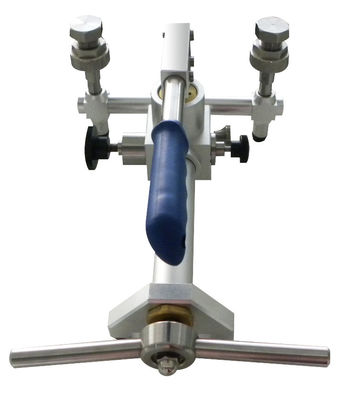

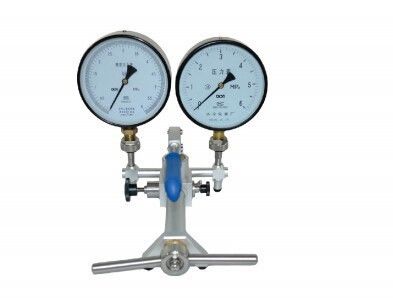

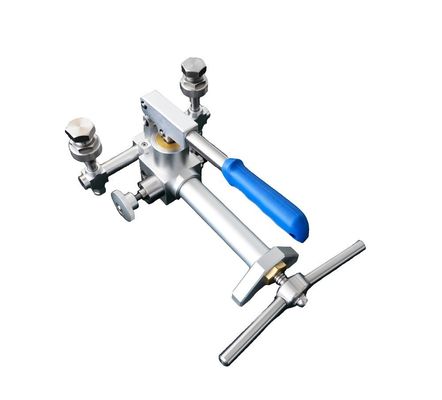

HS703 Hand-Held Pneumatic Calibration Pressure Pump
Description
HS703 Hand-Held Pneumatic Calibration Pressure Pump is made up of lead screw; relieve valve, reversing valve, and output interface.
Functions
HS703 Hand-Held Pneumatic Calibration Pressure Pump can supply pressure for calibrating pressure gauges, Such as pressure (differential pressure) transducers, precision pressure gauges, general pressure gauges and other pressure gauge.
Technical Specification
| Pressure range | (-0.95- 60) bar |
| Accuracy | 0.05% F.S |
| Pressure-transmitting media | air |
| Output interface | M20×1.5 Female |
| Overall Dimensions | 325×210×170mm |
| Weight | 2.7Kg |
