High Pressure Hand Pump with 1kPa Adjustment Resolution and Range up to 2500 bar
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | sion-instrument |
| Model Number: | HS706 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $2,900.00/sets 1-9 sets |
| Packaging Details: | standard package |
|
Detail Information |
|||
| Power: | Manual | Range: | (0-1600)bar, (0-2500)bar |
|---|---|---|---|
| Pressure: | High Pressure | Adjustment Resolution: | 1kPa |
| Working Medium: | 25#transformer Oil | Certificate: | ISO9001:2008 |
| Function: | Calibration | Warranty: | 1 Year |
| Name: | Ultra-high Pressure Test Pump | Application: | Lab |
| Net Weight: | 25kgs | ||
Product Description

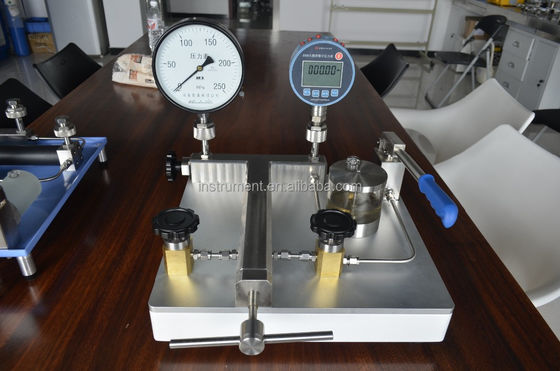

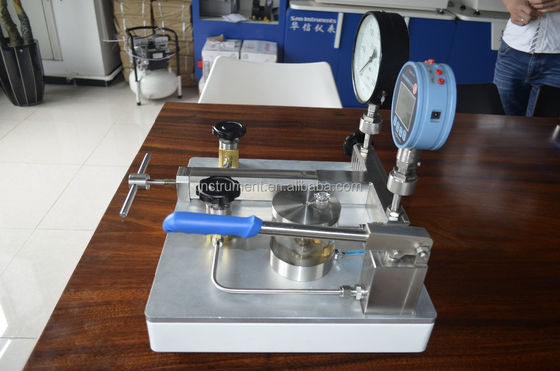

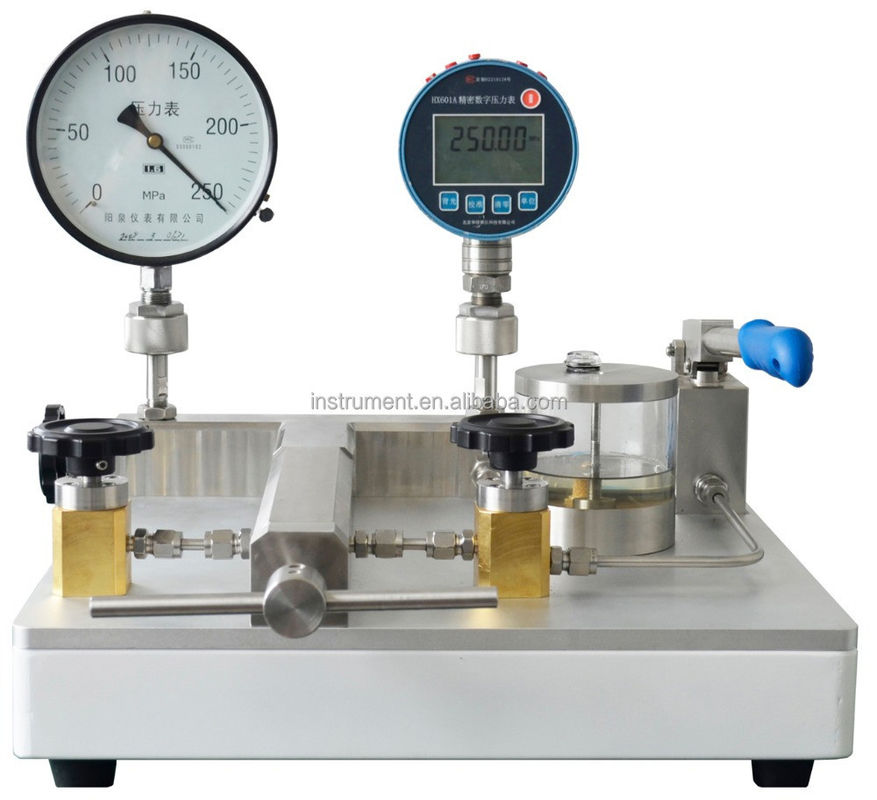

HS706 High Pressure Power Source Hand Pump Hydraulic Hand Pump
Product Description
S706 is generated pressure up to 2500bar to calibrate high pressure instruments against a standard gauge. It is fitted with hand pump which could quickly pressurize to the whole system; perfectly integrated operation of hand pump& Booster helps user to accomplish high pressure points calibration, closing Shut off valve during pre- pressurizing 250bar in order to get high pressure ranges. The lead screw adjusts the exact pressure values in the process. A specially designed transparent oil cup marks the balance of working medium. It widely calibrates pressure gauges in the laboratory.
| pressure range | (0~2500) bar; (0~1600)bar |
| working media | 25#transformer oil |
| weight | 25kg |
| Output Interface | M20×1.5Female |
| Dimensions | 570L*490W*195H (mm) |
| Material | Body:Stainless Steel/Aluminium Seals:Buna-N |
| Adjust resolution | 10mbar |
| package | Plywood case |
Functions HS706 provides pressure measurement for calibrating pressure (differential pressure) transmitter, precision pressure gauge, general pressure gauge and other pressure instruments. It can be extensively used in power, chemical, petrol, metallurgy, metering, military industry, etc.
Caracteristics
1.It has secondary oil filter and a settler. The waste oil can be filtered by this duplex tank.
2.Stainless steel and easy operation
3.The transparent oil cup could marks the balance of working medium
1. 12 years experience in Pressure&Temperature calibration instruments industry
2. Manufacturer for digital pressure gauge,high precision portable pressure calibrators high pressure hyraulic pressure calibrator and so on
3. Supply professional solution for automatic instruments with experienced engineers
4. resourceful and international sale experience
HUAXIN INSTRUMENT (BEIJING) CO., LTD. is a highly reputed organization dedicated to manufacturing high-quality pressure and temperature calibrator products. During considerable development, our products have already been widely used in the industries of power, chemical, petrol, metallurgy, metering, etc.
With the tenet of "Quality is Priority and The Customer is King", HUAXIN employs experienced technicians and professional sales engineers in calibration and metering field. Based on our excellent performance, we have joined in setting industry standard for product safety, durability and reliability in China. Besides, our company has been accredited to ISO9001:2008 international quality management system certification since its standardized operation. Furthermore, CE approval is also smoothly passed.
HUAXIN has already achieved good accomplishment in China and has expanded to the world market depending on its constantly reliable performance. In addition, competitive price, swift delivery and good service play an important role in our company's success. Our worldwide representatives and sales network always help customers enjoy more professional calibration products and solutions.
We sincerely hope to work with worldwide customers and create a better future together!
FAQ:
1. What's the warranty?
1 year since you receive the instrument.
2. Lead time:
2-3 weeks after gettting payment.
3. Package:
By paper carton with foam or plywood with foam.
4.Shipping:
By DHL, Fedex, TNT, EMS and others.
5. Payment:
T/T, paypal, Western Union, Trade assurance.
