Air Medium 100bar Pneumatic Test Pump for Industrial Pressure Testing
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | sino instruments |
| Model Number: | HS721 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $900.00 - $1,800.00/sets |
| Packaging Details: | export package |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Pressure Range: | 0.95~100 ) Bar | Medium: | Air |
|---|---|---|---|
| WEIGHT: | 14kgs | Connector: | M20X1.5 Female * 3pcs |
| Positive Pressure: | 100bar | Negative Pressure: | -0.95 Bar |
| Port: | China Main Port | ||
Product Description

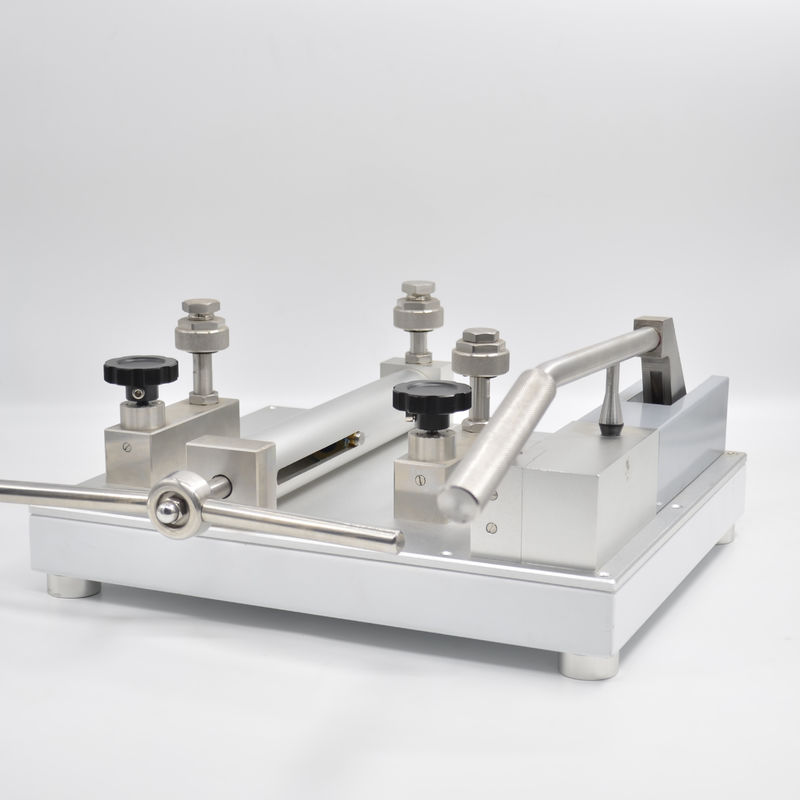

HS721 Manual Calibrated Gauge Pneumatic Pressure Measuring Instruments

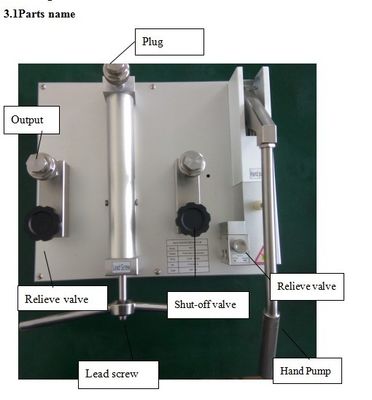

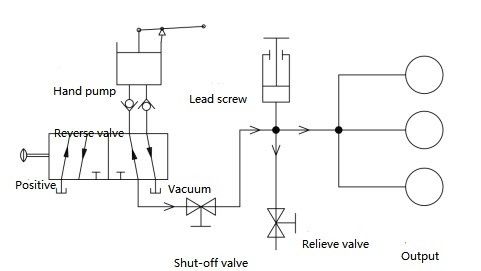

Product Description HS721 Manual Calibrated Gauge Pneumatic Pressure Measuring Instruments consists of hand pump, lead screw, reverse valve, relieve valve and output interface. It features high sealing, stable pressure generating and simple operation. It is suitable in the laboratory. It could supply the pressure for calibrating pressure (differential pressure) transmitter, precision pressure gauge, general pressure gauge and other pressure instruments.
Characteristics
-Food grade stainless steel and hermetic technology in the military industry
-High precision, stable pressure generating, easy operation.
-Wide pressurized range, high vacuum degree
-High reliability, Wide micro-adjusting range
Technical Specification
-Pressure Range: (-0.95~100) bar
-Stability: Above 0.05%F.S
- Working Media: Air
-Output Interface: M20×1.5 Female
-Dimensions (L×W×H): 380mm×380mm×200mm
-Weight: 14.8Kg
♣ standards service : we are committed to providing a high quality and responsive services to all clients.
♣The fastest reply: details of specification , models, image and price of products will be provided quickly after receive your inquiry.
♣ Quality assurance: All products will be checked by our quality-control manager.
♣ Excellent package: each unit has individual box and all boxes are packed in standard packages
♣ OEM available
