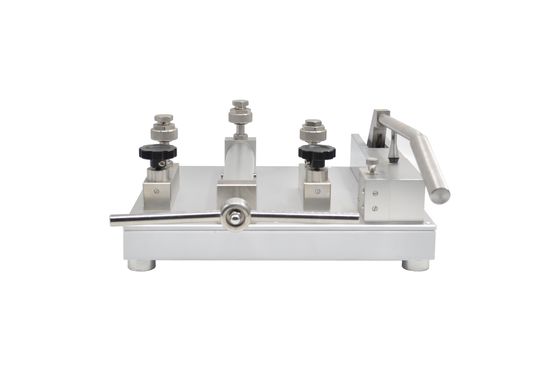

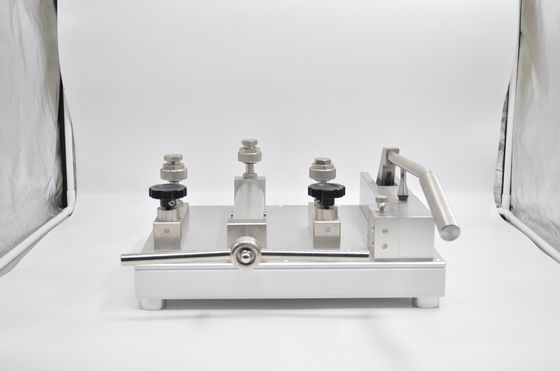

0.95-140bar Pneumatic Comparison Pump with Output Interface Connection M20X1.5Fx2 14Kgs
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | huaxin |
| Model Number: | HS721 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1,000.00 - $3,000.00/units |
|
Detail Information |
|||
| Customized Support: | OEM | Generated Pressure Range: | (-0.95~140)bar |
|---|---|---|---|
| Working Medium: | Air | Adjust Resolution: | 0.1mbar |
| Body: | Stainless Steel/Aluminium | Seals: | Buna-N |
| Output Interface Connection: | M20X1.5Fx2 | Weight: | 14Kgs |
Product Description
Description

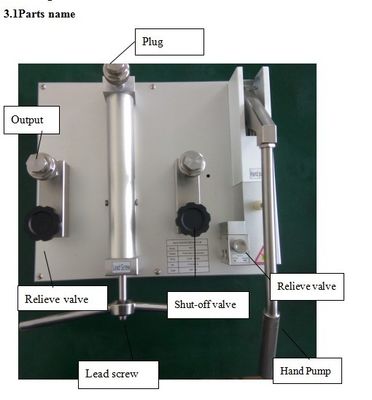

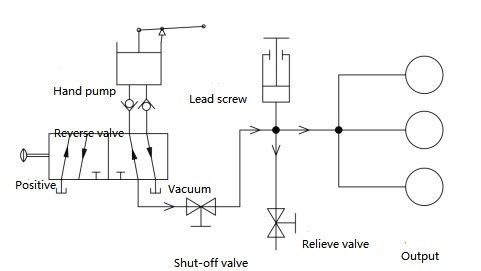

HS721 Pneumatic Pressure Comparison Pump is designed with a reverse valve, generated pressure from vacuum to 140bar.The F-adjust valve could accomplish 0.1mbar pressure resolution. The design of reverse valve makes the switch of vacuum and positive pressure more smooth. The shut-off valve can stabilize the value when calibrating.Two standard pressure outputs are easy to
connect gauges under test without using the wrenches. It widely calibrates pressure instruments in the laboratory.
Specifications
Generated pressure range:(-0.95~140)bar
Working media: Air
Adjust resolution:0.1mbar
Material :
Body:Stainless Steel/Aluminium
Seals:Buna-N
Output interface connection:
M20×1.5Female
Weight:6.5kg
Dimensions:400L×250W×150H (mm)
Optional Accessories
Model Description
HS721-HSPA01 Fitting adaptor 10pcs
HS721-HSPA02 Fitting adaptor 10pcs
HS721-HSPA18 Fitting adaptor 18pcs
HS721-HSPA64 Fitting adaptor,hose,wrenches and so on (64pcs)
HS721-8 Digital pressure gauge HS108 or HX601 uses as master gauge
HS721-2 Pressure calibrator HS602 for calibration pressure transmitter
