Generated pressure range: (0~600)bar Working medium: 25# transformer Oil Stability speed: Within 5S each point. Material: Steel for main body Body:Output part: stainless steel Seals:Buna-N Output interface connection: M2.0×1.5(Female) 5pcs Net weighs: 26.5kg Dimensions: 730L×350W×250H (mm) Package:Plywood case
 |
OEM Supported HS318L Electric Pressure Comparator 0-600bar for Speed Stability Testing
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | SINO INSTRUMENTS |
| Model Number: | HS318L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $2,000.00 - $4,000.00/pieces |
|
Detail Information |
|||
| Customized Support: | OEM | Stability Speed: | Within 5 Seconds Each Point |
|---|---|---|---|
Product Description
Product Description

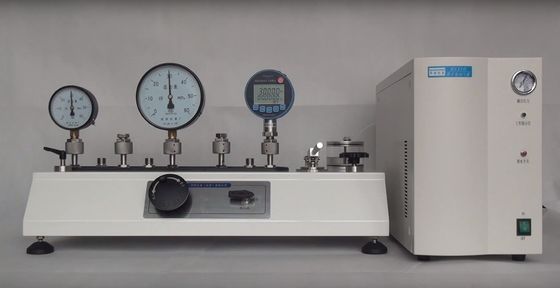

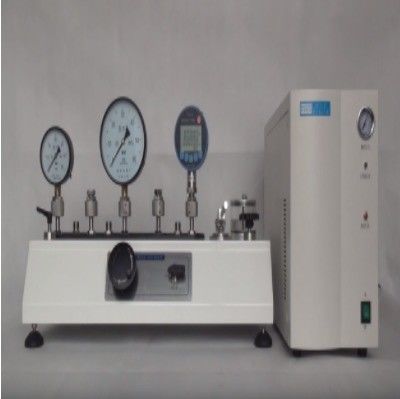

HS318LSteady Servo Electrical Pressure Calibrator adopts gas-liquid push or gas-gas push principle. the extra air sources give active power to pre-pressure for the whole calibrating system, perfectly instead of the heavy and compiex hand work operation.Servo control pressure and dynamic equilibrium design that make the pressure values very exact and stability. Pressure regulator adjust the exact pressure value with the min adjust resolution 1kPa. Very save labor ,only a finger can pressurize to full scale. 5pcs pressure output interface with stainless steel material .that can calibrate four pressure gauges once time. The quick coupling is easy to install pressure instrument without using the wrenches. This instrument is easy to operate and very rapidly generate the required testing pressure, providing precise pressure control, only needs less than 5s to stabilize the pressure.Following the points above mentioned, It's main features is in saving both effort and time, which is very suitable to do heavy & repeat calibration.
Product name | Electrical Pressure Calibrator |
Model | HS318L |
range | (0~600) bar |
Stability speed | Within 5S each point |
connection | M2.0×1.5(Female) 5pcs |
medium | 25＃transformer oil |
Dimensions | 500mm×350mm×135 mm |
Net weight | 16kg |
Direction for use
Description of application effect
Functions HS318L is suitable for large quantities and repetitive calibrating work. it is widely used in the industries of power, chemical, petrol, metallurgy, metering, etc. Characteristics Transparent oil cup ,that easy to check the work media Easy to operate and rapidly generate the required pressure by only a finger 5pcs output interface .make the calibration more efficient
