Electric Calibration Bench 26kgs M20*1.5Female Connection Size for Metrology Lab
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | Sino instrument |
| Model Number: | HS318L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $2,000.00 - $4,000.00/sets |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Power: | Electronic | Pressure Range: | (0~600)bar |
|---|---|---|---|
| Work Medium: | Oil | Putputs: | 5pcs |
| Connection Size: | M20*1.5Female With Other Size Thread Adaptor | Warranty: | 1 Year |
| Weight: | 26kgs | Package: | Plywood Case |
Product Description
HS318L Electric calibration bench
HS318L Steady Servo Electric calibration bench adopts gas-liquid push principle. the extra air sources give active power to pre-pressure for the whole calibrating system, perfectly instead of the heavy and compiex hand work operation. Servo control pressure and dynamic equilibrium design that make the pressure values very exact and stability. Pressure regulator adjust the exact pressure value with the min adjust resolution 1kPa. Very save labor ,only a finger can pressurize to full scale. 5pcs pressure output interface with stainless steel material .that can calibrate four pressure gauges once time. The quick coupling is easy to install pressure instrument without using the wrenches. This instrument is easy to operate and very rapidly generate the required testing pressure, providing precise pressure control, only needs less than 5s to stabilize the pressure. Following the points above mentioned, It's main features is in saving both effort and time, which is very suitable to do heavy & repeat calibration.
Technical specification:
♥ Generated pressure range: (0~600)bar
♥ Working medium: 25# transformer Oil
♥ Stability speed: Within 5S each point.
♥ Material: Steel for main body
Body:Output part: stainless steel
Seals:Buna-N
♥ Output interface connection: M2.0×1.5(Female) 5pcs
♥ Net weighs: 26.5kg
♥ Dimensions: 730L×350W×250H (mm)
♥ Package:Plywood case

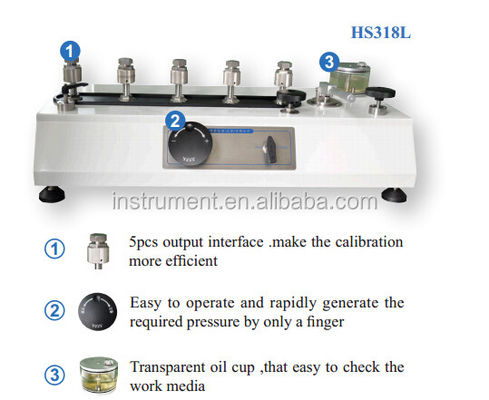

Feture
♥ Transparent oil cup ,that easy to check the work media
♥ Easy to operate and rapidly generate the required pressure by only a finger
♥ 5pcs output interface .make the calibration more efficient
