Stainless Steel Bottomessure and ABS Plastic Cover HS602 Digital Pressure Calibrator Gauge
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | Huaxin |
| Model Number: | HS602 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $800.00 - $2,000.00/pieces |
| Packaging Details: | Plywood Carton |
| Supply Ability: | 5000 Piece/Pieces per Year |
|
Detail Information |
|||
| Generated Pressure Range: | -0.1-0/0-2500bar | Accuracy: | +/-0.025% F.S;+/-0.05%F.S |
|---|---|---|---|
| Working Media: | Air;oil; Water | Body Material: | Stainless Steel/Aluminum Alloy |
| Connection: | M20*1.5Female | Weight: | 0.75KG |
| Dimension: | 95L X 50W X 166H (mm) | Name: | HS602 Intelligent Pressure Gauge/Indicator |
| Port: | Beijing Airport | ||
Product Description
Product Description

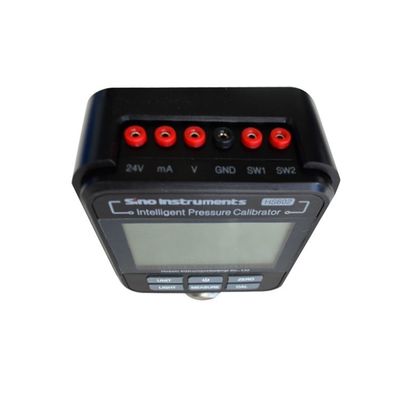

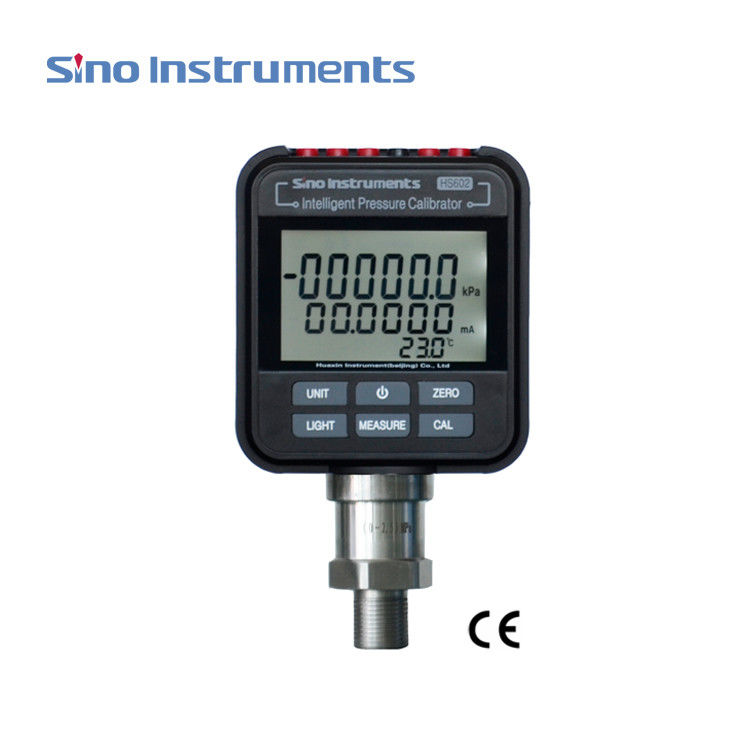

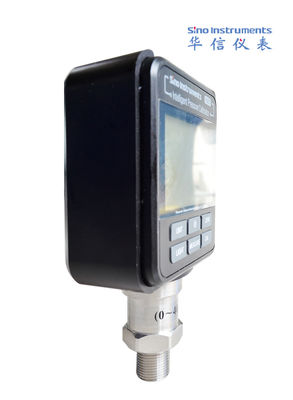

HS602 Intelligent Pressure Calibrator has the double-line large screen with backlight function. It can meet customers' requirement in the 6-digit display and 9 pressure units. It provides pressure measurement for calibrating pressure (differential pressure) transmitters, precision (general) pressure gauges and other pressure instruments. It has been used in the industries of power, chemical, petrol, metallurgy, metering, etc.
Technical specification
Range(-1-0)bar,(0-2500)bar(any range within this two range)
Accuracy:±0.025%F.S,±0.05%F.S,±0.1%F.S,±0.2%F.S,±0.5%F.S
Current measurement: (0-25)mA
Accuracy:±(0.02%R.D+0.005%F.S)
Voltage measurement: (0-25)V
Accuracy:±(0.02%R.D+0.005%F.S)
Temperature compensating range:(0-50)℃
DC output:DC24V(≤30mA) Accuracy: ±1%F.S
Power supply:7.4Vdc Lithium battery power supply and special charger
Connection:M20×1.5 or 1/4"NPT male thread(or customized)
Dimensions:Φ95mmx49mm. Total Height:166mm
Weight:0.75kg
Features
Equipped with rugged ABS plastic
Pressure-transmitting medium including air, oil, and water
6-digit LCD screen with backlight
Nine Pressure Units Selectable: kPa, Pa, psi, kgf/cm2, bar, mbar,mmH2O, mmHg, MPa
Zero point, full scale calibration function
7.4Vdc Lithium battery and special charger
Overload and short circuit protection
Light weight, small size, easy operation
Rapid in operation, compatible with computer software
Support Hart Version 5
With max/min Values functions
CE&EX approved
| Packaging Details: | Plywood carton |
| Delivery Detail: | 3~7 working days upon receipt of deposit |
HUAXIN INSTRUMENT (BEIJING) CO., LTD. is a highly reputed organization dedicated to manufacturing in calibration and metering field.Having specialized in this field for more than ten years. During considerable development, our products have already been widely used in the industries of power, chemical, petrol, metallurgy, metering, etc and currently used in over 40countries and have a lot of agents worldwide .Based on excellent performance,we have joined in setting industry standard for product sfety ,operability,durability and reliability in China, Also CE,EX.ISO9001 and HART are approved.
