High Accuracy HS602 Pocket Portable Digital Pressure Manometer 0.02%R.D 0.05%F.S
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | Sino |
| Model Number: | HS602 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $700.00 - $3,000.00/sets |
| Packaging Details: | Standard export packing |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Product: | Digital Pressure Manometer HS602 | Model: | HS602 |
|---|---|---|---|
| Pressure Range: | (-1~2500) Bar | Accuracy: | (0.02%R.D+0.05%F.S) |
| Agency Fee: | 0 | Port: | Any Port In China |
Product Description

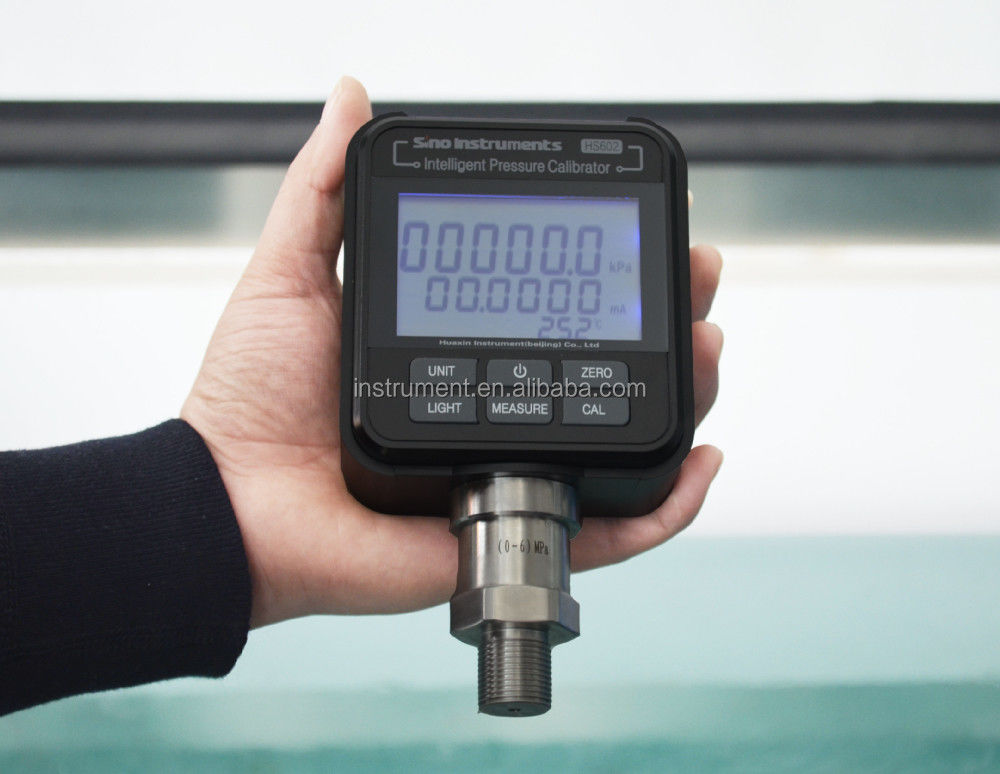

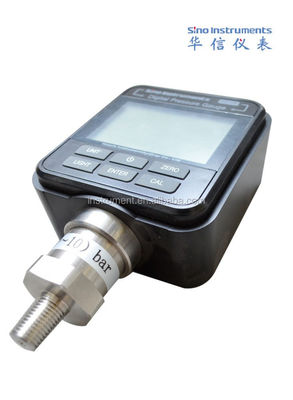

Digital Pressure Manometer HS602(-1~0)bar (0~2500)bar
DESCRIPTIOND
Digital Pressure Manometer HS602 is a single span,double lines large screen with the apheliotropic.
Nine pressure units could switch as the customers requirement.
DC24V output;
RS232 serial port communication.
can be used as standard gauge in calibrating pressure transmitter,pressure switch etc.
FUNCTIONS
Digital Pressure Manometer HS602 can be widely used in power, petrol, chemical, metallurgy, metering industry, and so on.
It provides pressure measurement for calibrating pressure (different pressure) transducers, precision (general) pressure gauges, sphygmomanometers, and other pressure instrument
FEATURES
- Equipped with rugged aluminum alloy cover .
- Pressure-transmitting medium include air, oil, and water (distilled or pure water).
- Measure pipes pressure and display pressure wave curve in real time.
- 6-bit word LCD with backlight.
- Ni-H rechargeable battery inside and special adapters, over load and short circuit protection.
- Light weight, small space, convenient operation.
- Rapid in operation, applied with computer software.
- Instrument is light, portable and suitable for some fieldworks to calibrate pressure gauges.
Specifications
| Pressure | (-1~0)bar (0~2500)bar Accuracy: ±0.025%F.S;0.05%FS |

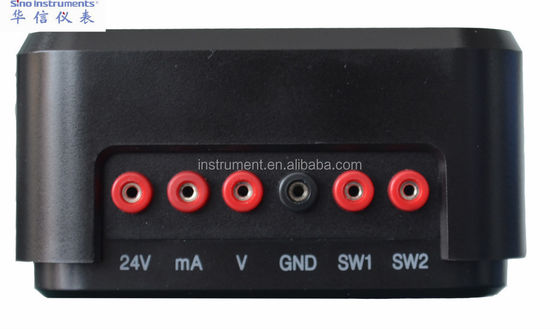

| Current measurement | (0~25)mA Accuracy: (0.02%R.D+0.005%F.S) |
| Voltage measurement | (0~25)V Accuracy: ±(0.02%R.D+0.005%F.S) |
| Switch measurement | To measure the on-off state |
| DC output | DC24V (≤30mA) Accuracy: ±1%F.S |
| Temperature compensation range | (0~50) ºC |
| 9 Engineering units | MPa, Pa, psi, kgf, bar, mbar, mmH2O, mmHg, kPa |
| Connection | RS232 |
| Power supply | Lithium battery power supplied or special adapter. |

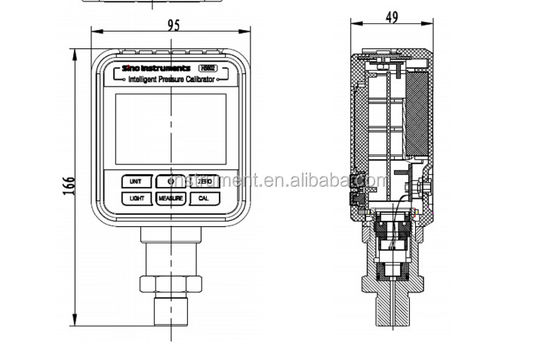

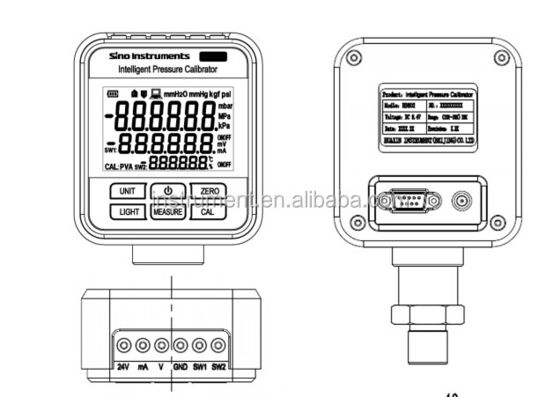

| Dimensions | 171.5mm×110mm×44mm |
| Weight | 0.75kg |
| CE approved | |
