Industrial Grade HS316L Servo Pressure Testing Bench for Precise Pressure Measurements
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | SINO INSTRUMENTS |
| Model Number: | HS316L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $2,000.00 - $4,000.00/pieces |
|
Detail Information |
|||
| Stability Speed: | Within 5 Seconds Each Point | ||
|---|---|---|---|
Product Description
Product Description

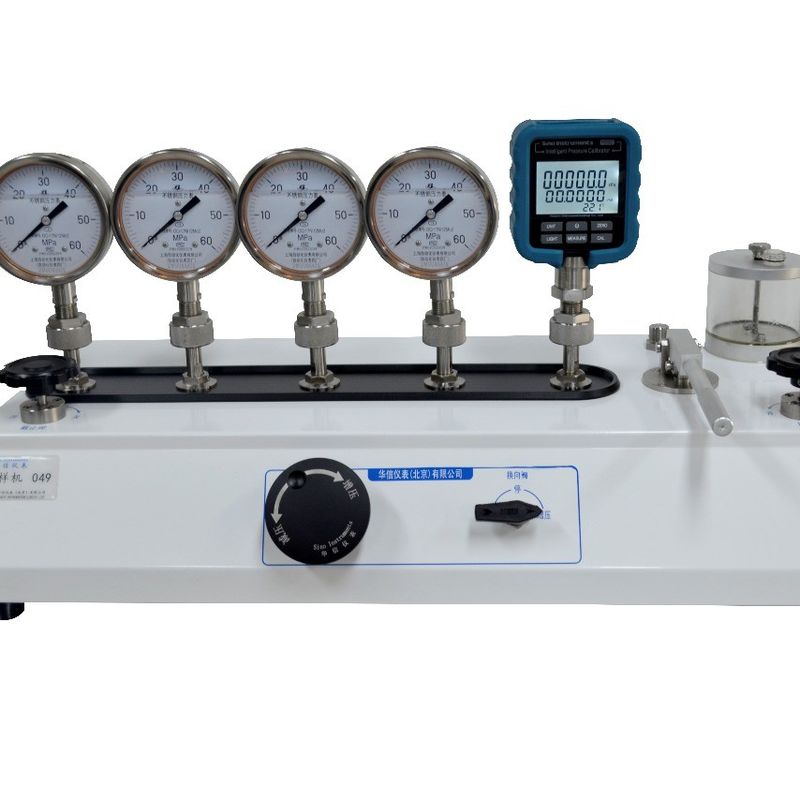

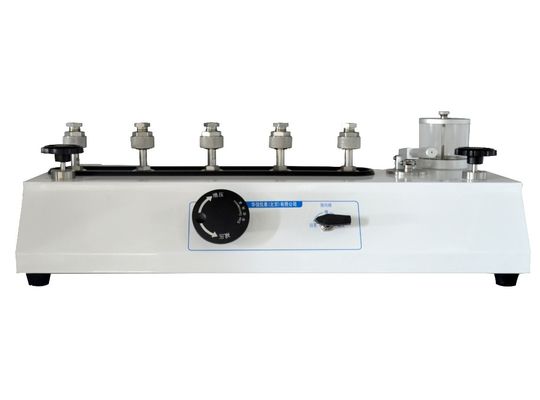

Electronic pneumatic comparator provides the accuracy, stability, efficiency and capability you need to calibrate pressure gauges, transmitters, switches and other pressure instruments through comparison measurements. It is suitable for mass and repeat calibration needs in power, chemical, oil, metallurgy, metering and other industries.
Features
1. External air source is used for priming instead of hand pump.
2. Steady servo control ensures fast and precise pressure generation.
3. 5 pressure ports with standard M20*1.5 quick connectors allow simultaneous calibration of 4 pressure gauges, ensuring higher efficiency.
4. Accuracy of the pressure regulator reaches 1kPa.
5. Excellent sealing performance makes the pressure calibration system easy to clean and maintain.
6. The electrical pressure comparator can complete full range calibration within 2 minutes and time for pressure stabilizing is less than 5s.
7. Air circuit features rugged and reinforced construction. This leads to high sealing performance and more stable pressure generation.
Technical Specifications
Pressure range: 0~25bar (HS316L); 0~60bar (HS317L)
Working medium: Air
Materials: Steel for body; stainless steel for outputs
Pressure connection: M20*1.5 female
Dimensions: 850Lx320Wx250H (mm)
Weight: 24kg
Packaging: plywood box
Working environment: Laboratory
