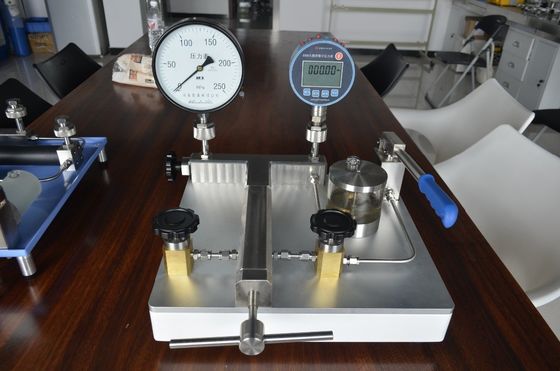

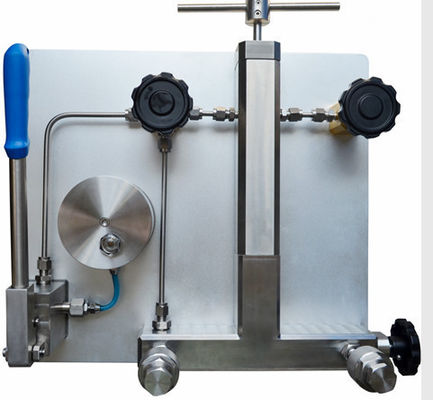

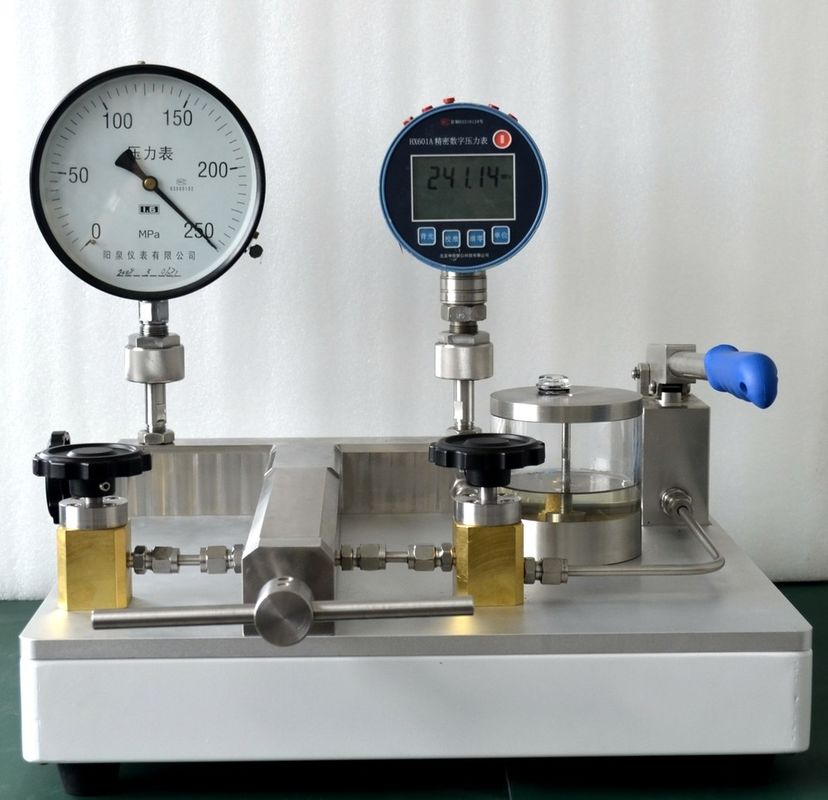

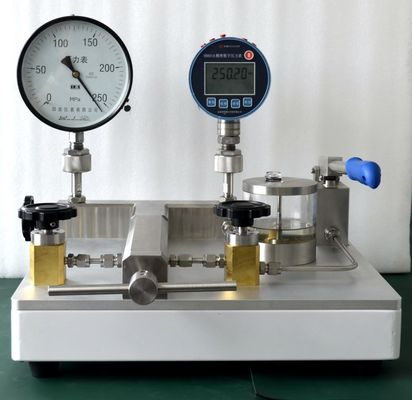

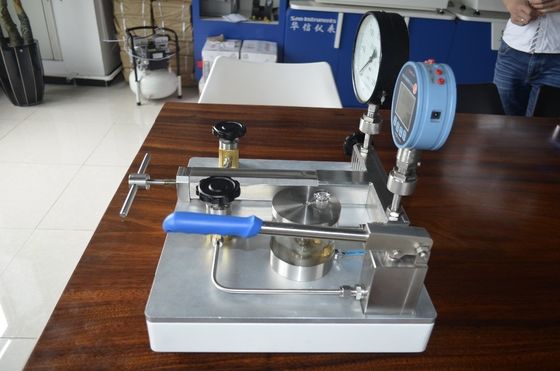

HS706 Hydraulic Comparator for Oil 0-1600bar Testing Instrument
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | SINO INSTURMENTS |
| Model Number: | HS706 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1.00 - $1.99/pieces |
|
Detail Information |
|||
| Power: | Hydraulic | ||
|---|---|---|---|
Product Description
Features
1. Bench mounted design;
2. Outstanding sealing performance and quick pressure stabilizing due to use of military sealing technology;
3. A preferred hydraulic pressure comparator with high accuracy, easy operation and maintenance, and no leakage;
4. Higher safety factor than other products;
5. Transparent oil cup for clear observation of working medium, ensuring ease of clean and maintenance
Technical Specifications
Pressure range: (0~1600)bar; (0~2500)bar
Min. adjustable pressure: 10mbar
Working medium: 25# transformer oil
Pressure connection: M20*1.5 female
Dimensions: 570Lx490Wx195H (mm)
Weight: 25kg
Materials: Food grade stainless steel and anti-rust aluminum for body; Buna N for O-rings
Packaging: plywood box
Applications
The hydraulic comparator generates pressure in the laboratory or in the workshop for testing, adjusting and calibrating various types of pressure measuring instruments such as pressure transmitters, precision and common pressure gauges, pressure switches, etc. It has been extensively used in power, chemical, oil, metallurgy, metering and other industries.
