5 Outputs Multi-Output Electric Pressure Calibration Equipment HS318L for Calibration
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | Sino Instruments |
| Model Number: | HS318L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1,500.00 - $3,500.00/sets |
| Packaging Details: | standard packages |
| Supply Ability: | 100 Set/Sets per Month Electric pressure calibration equipment |
|
Detail Information |
|||
| Name: | Electric Pressure Calibration Equipment | Pressure Range: | (0~600)bar |
|---|---|---|---|
| Work Medium: | Oil | Outputs: | 5pcs |
| Weight: | 26.5kgs | Adjust Resolution: | 0.1bar |
| Stability Speed: | Within 5S Each Point | Main Body: | Steel |
| Dimensions: | 730L*350W*250H (mm) | Package: | Plywood Case |
| Port: | Beijing | ||
Product Description

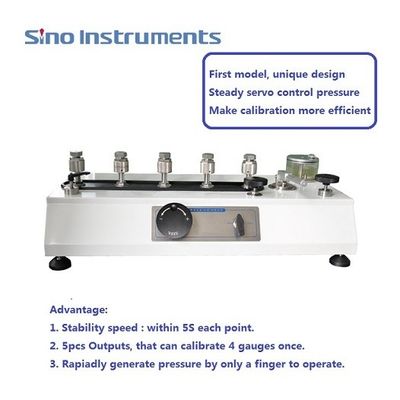

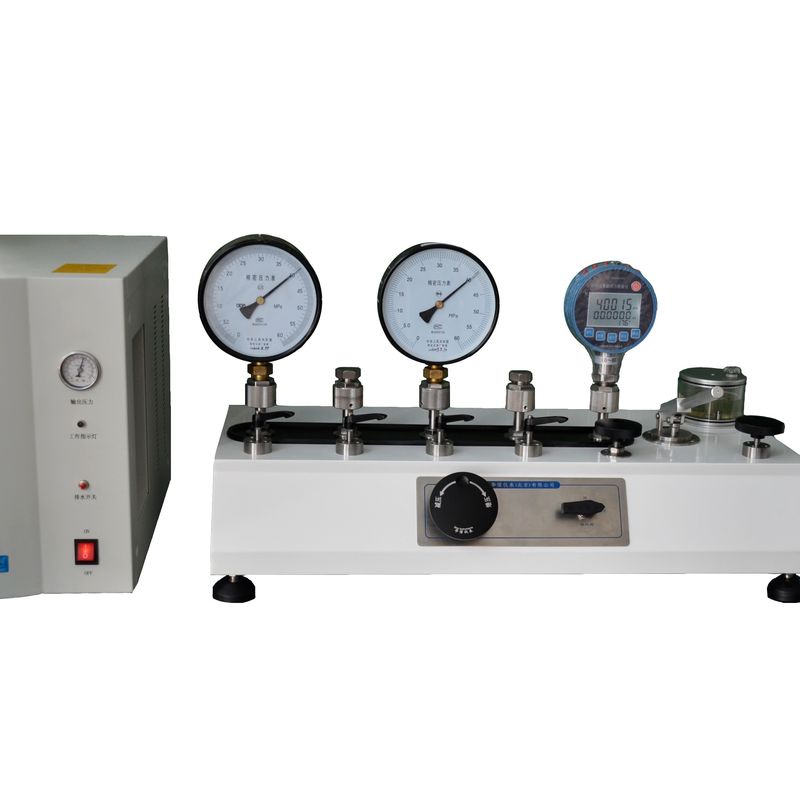

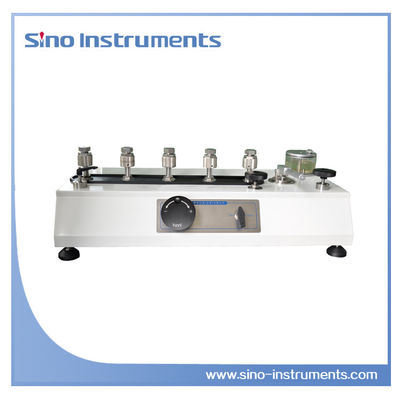

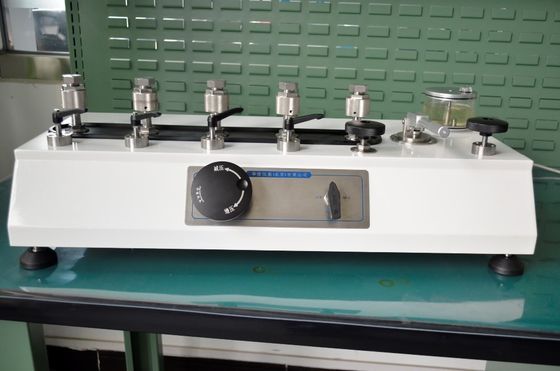

Lab instrument Multi outputs Electric pressure calibration equipment HS318L

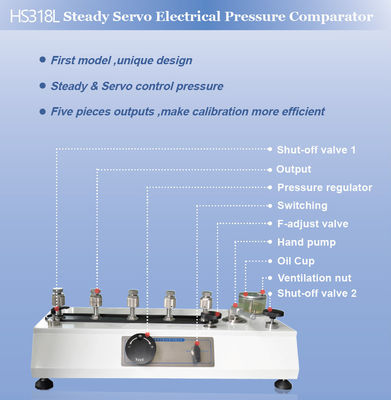

HS318LSteady Servo Electrical Pressure Calibrator adopts gas-liquid push principle. the extra air sources
give active power to pre-pressure for the whole calibrating system, perfectly instead of the heavy and
compiex hand work operation. Servo control pressure and dynamic equilibrium design that make the pressure
values very exact and stability. Pressure regulator adjust the exact pressure value with the min adjust
resolution 1kPa. Very save labor ,only a finger can pressurize to full scale. 5pcs pressure output interface
with stainless steel material .that can calibrate four pressure gauges once time. The quick coupling is easy
to install pressure instrument without using the wrenches. This instrument is easy to operate and very rapidly
generate the required testing pressure, providing precise pressure control, only needs less than 5s to stabilize
the pressure. Following the points above mentioned, It's main features is in saving both effort and time,
which is very suitable to do heavy & repeat calibration.
Technical specification
♥ Generated pressure range: (0~600)bar
♥ Working medium: 25# transformer Oil
♥ Stability speed: Within 5S each point.
♥ Material: Steel for main body
Body:Output part: stainless steel
Seals:Buna-N
♥ Output interface connection: M2.0×1.5(Female) 5pcs
♥ Net weighs: 26.5kg
♥ Dimensions: 730L×350W×250H (mm)

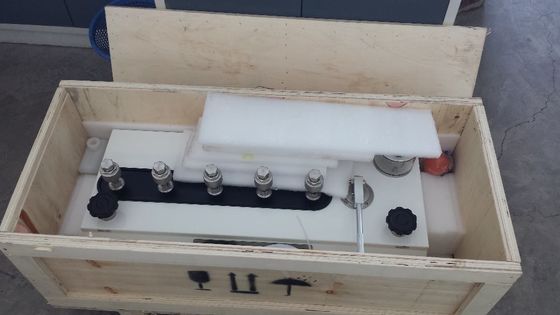

♥ Package:Plywood case
Features
♥ Transparent oil cup ,that easy to check the work media
♥ Easy to operate and rapidly generate the required pressure by only a finger
♥ 5pcs output interface .make the calibration more efficient
