Versatile and Professional HS602 Intelligent Pressure Calibrator with 1/4NPT M Connector

HS602 Intelligent Pressure Gauge calibrator

DESCRIPTION

•  Intelligent Pressure Gauge calibrator  can be widely used in power, petrol, chemical, metallurgy, metering industry, and so on.
• It provides pressure measurement for calibrating pressure (different pressure) transducers, precision (general) pressure gauges, sphygmomanometers, pressure-reducing valves and other pressure instrument

Technical Specification

• 1. Pressure range: (-1~0)bar; (0~2500)bar
• 2. Accuracy: ±0.025%F.S; ±0.05%F.S
• 3. Current measurement: (0~25) mA Accuracy:0.03%RD+0.02%F.S
• 4. Voltage measurement: (0~25) V Accuracy:0.03%RD+0.02%F.S
• 5. DC output: DC24V (≤30mV)
• 6. Auto ranging and manual gain among pressure, current and voltage
• 7. nine pressure unit conversion for optional according to users actual demands
•       (e.g. mmH2O mmHg Psi kPa MPa Pa mbar bar kg/cm2)
• 8. Big LCD screen with double lines and good daylight viewing and backlight
• 9. Big LCD screen with double lines and full Chinese operation interface
• 10. Communications: USB (optional on-line calibration software)
• 11. Module interface:M20×1.5
• 12. Ni-H rechargeable battery inside, 12 hours continuous battery life on full charge
• 13. Power supply: 220V±22V 50Hz±1Hz

FEATURES

• Equipped with stainless steal metal enclosure with compact structure and fine exterior
• Pressure-transmitting medium include air, oil, and water (distilled or pure water)
• Measure pipes pressure and display pressure wave curve in real time

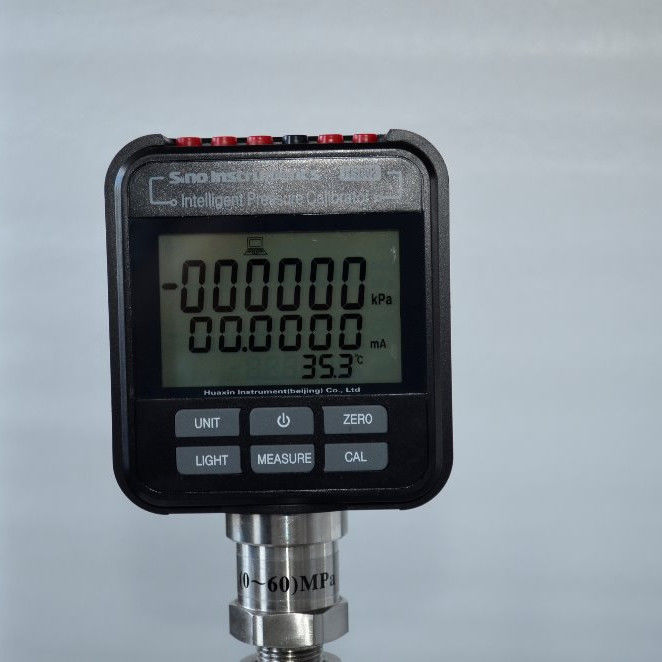

• 6-bit word LCD screen with good daylight viewing and backlight
• Ni-H rechargeable battery inside and special adapters, over load and short circuit protection
• Light weight, small space, convenient operation
• Rapid in operation, applied with computer software
• Instrument is light, portable and suitable for some fieldworks to calibrate pressure gauges
• Auto ranging and manual gain
• Overall Dimensions(L×W×H): 100mm×130mm×45mm
• Weight: 0.75kg
