Upgrade Your Calibration Process with HS602 Intelligent Pressure Calibrator
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | SINO INSTRUMENTS |
| Model Number: | HS602 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $700.00 - $3,500.00/pieces |
|
Detail Information |
|||
| Customized Support: | OEM | Media: | Liguid,Gas |
|---|---|---|---|
Product Description

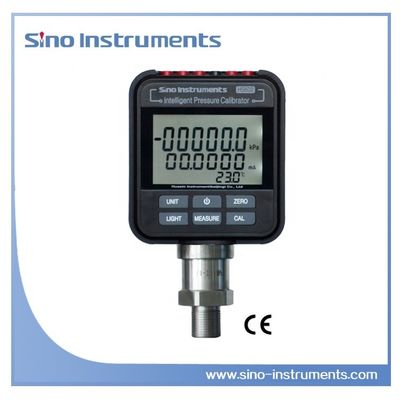

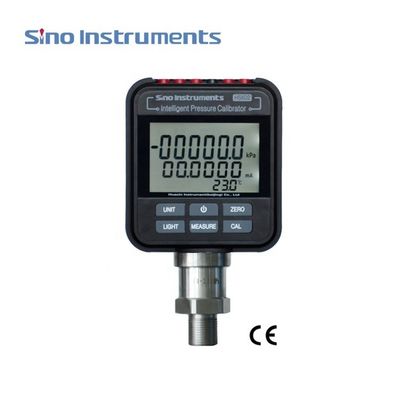

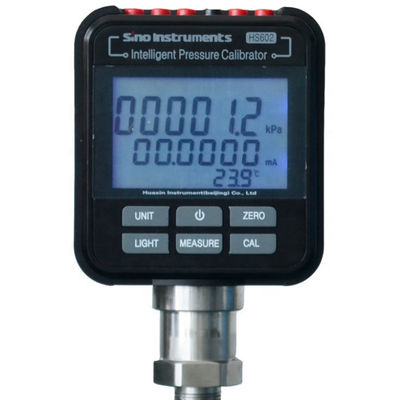

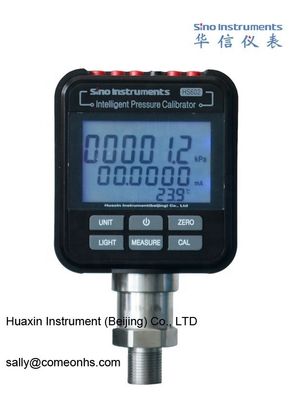

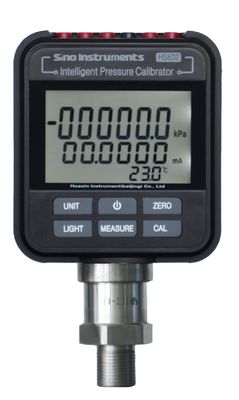

HS602 Intelligent Pressure Calibrator has the double- line large screen with backlight. It can meet customers' requirement in the 6-digit display and 9 pressure units. It provides pressure measurement for calibrating pressure (differential pressure) transmitters, precision (general) pressure gauges and other pressure instruments. It has been used in the industries of power, chemical, petrol, metallurgy, metering, etc.
Features
Equipped with rugged ABS plastic
Pressure-transmitting medium including air, oil, and water
6-digit LCD screen with backlight
Nine pressure units selectable
Zero point, full scale calibration function
7.4Vdc rechargeable lithium battery and special charger
Overload and short circuit protection
Light weight, small size, easy operation
Rapid in operation, compatible with computer software
Support Hart Version 5
With max and min values function
CE&EX approved
Specifications
Range:(-1-0)bar,(0-2500)bar,(See the pressure ranges selection sheet)
Accuracy:±0.025%F.S,±0.05%F.S
Current measurement: (0-25)mA Accuracy:±(0.02%R.D+0.005%F.S)
Voltage measurement: (0-25)V Accuracy:±(0.02%R.D+0.005%F.S)
Temperature compensating range:(-10-50)℃
DC output:DC24V(≤30mA) Accuracy: ±1%F.S
Power supply:7.4Vdc Lithium battery power supply and special charger
Connection:M20×1.5 or 1/4"NPT male thread
Dimensions:Φ95mmx49mm.
Total Height:166mm
Weight:0.75kg
|
No. |
Pressure Rang |
Accuracy |
Media |
|
|
(psi) |
(bar) |
|||
|
HS602-1 |
(0~10) |
(0~0.7) |
0.025,0.05 |
G |
|
HS602-2 |
(0~15) |
(0~1) |
0.025,0.05 |
G |
|
HS602-3 |
(0~30) |
(0~2) |
0.025,0.05 |
G,L |
|
HS602-4 |
(0~60) |
(0~4) |
0.025,0.05 |
G,L |
|
HS602-5 |
(0~100) |
(0~7) |
0.025,0.05 |
G,L |
|
HS602-6 |
(0~200) |
(0~14) |
0.025,0.05 |
G,L |
|
HS602-7 |
(0~300) |
(0~20) |
0.025,0.05 |
G,L |
|
HS602-8 |
(0~500) |
(0~35) |
0.025,0.05 |
G,L |
|
HS602-9 |
(0~600) |
(0~40) |
0.025,0.05 |
G,L |
|
HS602-10 |
(0~1000) |
(0~70) |
0.025,0.05 |
G,L |
|
HS602-11 |
(0~2000) |
(0~140) |
0.025,0.05 |
G,L |
|
HS602-12 |
(0~3000) |
(0~200) |
0.025,0.05 |
G,L |
|
HS602-13 |
(0~5000) |
(0~350) |
0.025,0.05 |
G,L |
|
HS602-14 |
(0~6000) |
(0~400) |
0.025,0.05 |
G,L |
|
HS602-15 |
(0~10000) |
(0~700) |
0.025,0.05 |
G,L |
|
HS602-16 |
(0~15000) |
(0~1000) |
0.025,0.05 |
G,L |
|
HS602-17 |
(0~24000) |
(0~1600) |
0.05 |
G,L |
|
HS602-18 |
(0~37000) |
(0~2500) |
0.05 |
G,L |
