Pressure Transmitter and Pressure Switch Calibration with HS602 Digital Pressure Gauge
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | SINO INSTRUMENT |
| Certification: | CE&EX |
| Model Number: | HS602 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $700.00 - $2,000.00/pieces |
| Packaging Details: | HS602 Digital Pressure Gauge Calibrating for Pressure Transmitter and Pressure Switch <br>Standard export package: each unit has individual cartonbox and all boxes are packed in standard packages <br>Also as the clients requirement |
| Supply Ability: | 500 Piece/Pieces per Year HS602 Digital Pressure Gauge |
|
Detail Information |
|||
| Item Name: | HS602 Digital Pressure Gauge | Accuracy: | +/-0.025%F.S; +/-0.05%F.S |
|---|---|---|---|
| Pressure Range: | (-0.1-0)bar; (0-2500)bar | Material: | Stainless Steel /Aluminum Alloy |
| Working Medium: | Water,oil ,air | Connection: | 1/4NPT;1/2NPT;1/2BSP; 1/4BSP Male |
| Display: | 6 Digits | Weight: | 0.75kg |
| Original Place: | Beijing | Port: | Beijing Aiport |
Product Description

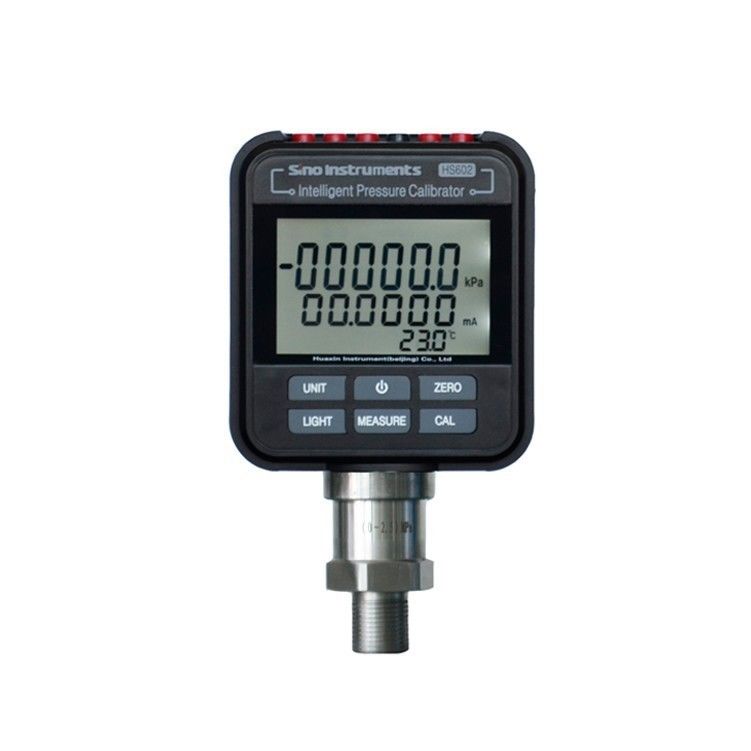

HS602 Digital Pressure Gauge Calibrating for Pressure Transmitter and Pressure Switch
HS602 Digital Pressure Gauge Calibrating for Pressure Transmitter and Pressure Switch has the double-line large screen with backlight function. It can meet customers' requirement in the 6-digit display and 9 pressure units. It provides pressure measurement for calibrating pressure (differential pressure) transmitters, precision (general) pressure gauges and other pressure instruments. It has been used in the industries of power, chemical, petrol, metallurgy, metering, etc.
Technical specification
Range(-1-0)bar,(0-2500)bar(any range within this two range)
Accuracy:±0.025%F.S,±0.05%F.S,±0.1%F.S,±0.2%F.S,±0.5%F.S
Current measurement: (0-25)mA
Accuracy:±(0.02%R.D+0.005%F.S)
Voltage measurement: (0-25)V
Accuracy:±(0.02%R.D+0.005%F.S)
Temperature compensating range:(0-50)℃
DC output:DC24V(≤30mA) Accuracy: ±1%F.S
Power supply:7.4Vdc Lithium battery power supply and special charger
Connection:M20×1.5 or 1/4"NPT male thread(or customized)
Dimensions:Φ95mmx49mm. Total Height:166mm
Weight:0.75kg
Features
Equipped with rugged ABS plastic
Pressure-transmitting medium including air, oil, and water
6-digit LCD screen with backlight
Nine Pressure Units Selectable: kPa, Pa, psi, kgf/cm2, bar, mbar,mmH2O, mmHg, MPa
Zero point, full scale calibration function
7.4Vdc Lithium battery and special charger
Overload and short circuit protection
Light weight, small size, easy operation
Rapid in operation, compatible with computer software
Support Hart Version 5
With max/min Values functions
CE&EX approved
HUAXIN INSTRUMENT (BEIJING) CO., LTD. is a highly reputed organization dedicated to manufacturing high-quality pressure and temperature calibrator products. During considerable development, our products have already been widely used in the industries of power, chemical, petrol, metallurgy, metering, etc and part products have got CE&EX approved
What's the warranty?
1 year since you receive the instrument.
2. Lead time:
2-3 weeks after gettting payment.
3. Package:
By paper carton with foam or plywood with foam.
4.Shipping:
By DHL, Fedex, TNT, EMS and others.
5. Payment:
T/T, paypal, Western Union, Trade assurance.
