HS602 Pressure Sensor Calibration Intelligent Calibrator with Accurate Measurement
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | huaxin |
| Model Number: | HS602 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $800.00 - $2,500.00/pieces |
| Packaging Details: | standard package |
| Supply Ability: | 500 Piece/Pieces per Month |
|
Detail Information |
|||
| Name: | HX601B Intelligent Vacuum Gauge | Model: | HS602 |
|---|---|---|---|
| Accuracy: | ±0.05%, | Function: | HART Function |
| DC Output: | DC24V(≤30mV),Accuracy: ±1%F.S | Current Measurement: | (0-25)mA, Accuracy: ±(0.02%R.D+0.005%F.S) |
| Voltage Measurement: | (0-25)V, Accuracy: ±(0.02%R.D+0.005%F.S) | Weight: | 0.75kg |
| Port: | Tianjin | ||
Product Description

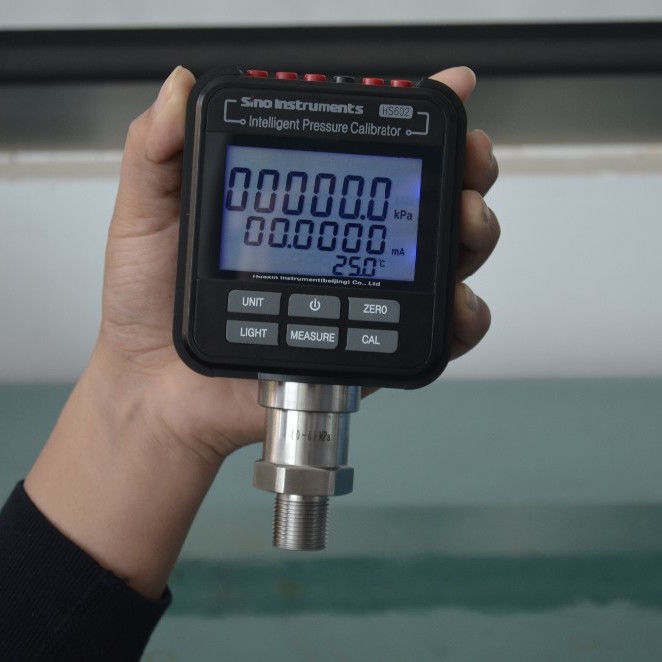

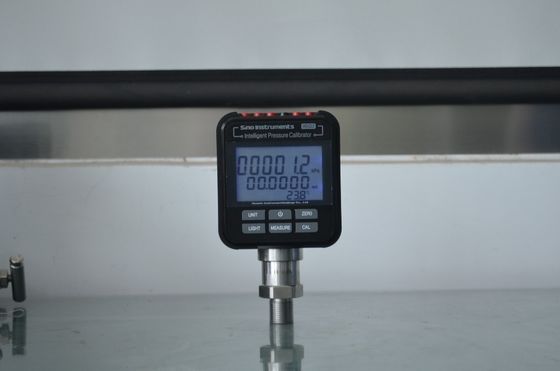

HS602 Intelligent Vacuum Gauge Description
HS602 digital vacuum gauge has the double-line large screen with backlight function. It can meet customers' requirement in the 5-digit display and 9 pressure units. It provides pressure measurement for calibrating pressure (differential pressure) transmitters, precision (general) pressure gauges and other pressure instruments. It has been used in the industries of power, chemical, petrol, metallurgy, metering, etc.
Technical Specification
| Pressure Range | (-1~0) bar, (0~600) bar |
| Accuracy | ±0.05%F.S |
| Current Measurement | (0-25)mA, Accuracy: ±(0.02%R.D+0.005%F.S) |
| Voltage Measurement | (0-25)V, Accuracy: ±(0.02%R.D+0.005%F.S) |
| Temperature Compensating Range | (0~50)°C |
| 9 engineering units | MPa, Pa, psi, kgf, bar, mbar, mmH2O, mmHg, kPa |
| Connection | M20×1.5 male or 1/4″NPT male thread(or customized) |
| Communication | RS232 |
| DC output | DC24V(≤30mV),Accuracy: ±1%F.S |
| Power supply | Lithium battery power supply or special adapter |
| Overall Dimensions | 150mm×95mm×50mm |
| Weight | 0.75kg |
Features
- 5-digit big LCD with backlight function
- Pressure-transmitting medium including air, oil, and water
- 5-digit LCD screen with backlight
- 9 Pressure Units Selectable: kPa, Pa, psi, kgf/cm2, bar, mbar, mmH2O, mmHg, MPa.
- Zero point, full scale calibration function
- Lithium battery inside and special adapters
-Overload alarm function
-Overload and short circuit protection
- Light weight, small size, easy operation
- Rapid in operation, compatible with computer software
- Support Hart Version 5
