ME02 Sphygmomanometer Calibrator Simulate Blood Pressure with 0-60kPa/0-450mmHg Range
Product Details:
| Place of Origin: | Beijing, China, Beijing, China (Mainland) |
| Brand Name: | SINO INSTRUMENT |
| Model Number: | ME02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,000.00 - $6,000.00/pieces |
| Packaging Details: | ME02 Sphygmomanometer Calibrator <br>Standard export package: each unit has individual cartonbox and all boxes are packed in standard packages <br> Also as the clients requirement |
| Supply Ability: | 500 Piece/Pieces per Month ME02 Sphygmomanometer Calibrator |
|
Detail Information |
|||
| Item Name: | ME02 Sphygmomanometer Calibrator | Pressure Range: | (0-60)kPa /(0-450mmHg) |
|---|---|---|---|
| Control Pressure Stability: | 0.05%F.S | Accuracy: | ±0.1%F.S |
| Pressure Unit: | KPa And MmHg | Resolution: | 0.01kPa(0.1mmHg) |
| Weight: | 4kg | Dimensions: | 300L*250W*110H (mm) |
| Port: | Beijing Airport | ||
Product Description
ME02 Sphygomanometer Calibrator
Generated pressure:(0-60)kPa/(0-450mmHg)
Control pressure stability:0.05%F.S
Pressure measuring:(0-60)kPa/(0-450)mmHg
Accuracy:±0.1%F.S
Resolution:0.01kPa(0.1mmHg)
Product Description

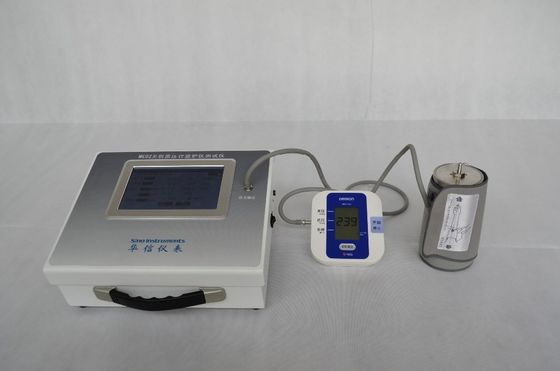

ME02 Non-invasive Sphygomanometer Calibrator is used for simulating human body blood pressure with output signal stability and good repeatability. It provides static pressure output& measuring, automatic leaking testing,dynamic blood pressure simulating function .that is used for calibrating sphygomanometer in metrology body, hospital , the University lab, sphygomanometer manufacturers and so on .
Technical specification
Generated pressure:(0-60)kPa /(0-450mmHg)
Control pressure stability:0.05%F.S
Pressure measuring:(0-60)kPa/(0-450)mmHg
Accuracy:±0.1%F.S
Resolution:0.01kPa(0.1mmHg)
Adults simulating range:
Systolic pressure (50-255)mmHg/(6.7-34)kPa
Diastolic pressure (30-195)mmHg/(4.0-26)kPa
Newborn simulating range:
Systolic pressure (30-120)mmHg/(4.0-16)kPa
Diastolic pressure (10-100)mmHg/(1.3-13.3)kPa
Blood pressure value repeatability: less than(2mmHg)
Heart rate range:(30-250) times/mins
Heart rate accuracy:±1%R.D
Pulse value:(0.1-2.4)m

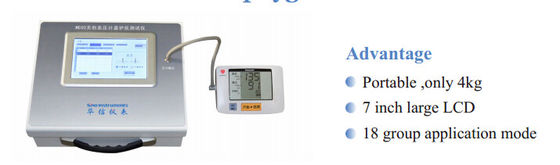

Features
Portable,easy to use in fild
With rechargeable battery
Automatically pressurized and depressurized
7 inch touch-screen, external wireless mouse
Adopt import pressure transducer and pressure components
Remindering when the pressure value approaching
Stability time set 0-60s selectable
Voice is less than 40 decibel
Build in adults /newborn cuff
18 group application, only set once time for permanent store
Dimensions:300L×250W×110H (mm)
Weight:4kg
| Packaging Details: | Standard Package denpending on customers' requirement |
| Delivery Detail: | 3~7 working days after receiving payment |
HUAXIN INSTRUMENT (BEIJING) CO., LTD. is a highly reputed organization dedicated to manufacturing in calibration and metering field.Having specialized in this field for more than ten years. During considerable development, our products have already been widely used in the industries of power, chemical, petrol, metallurgy, metering, etc and currently used in over 40countries and have a lot of agents worldwide .Based on excellent performance,we have joined in setting industry standard for product sfety ,operability,durability and reliability in China, Also CE,EX.ISO9001 and HART are approved.
